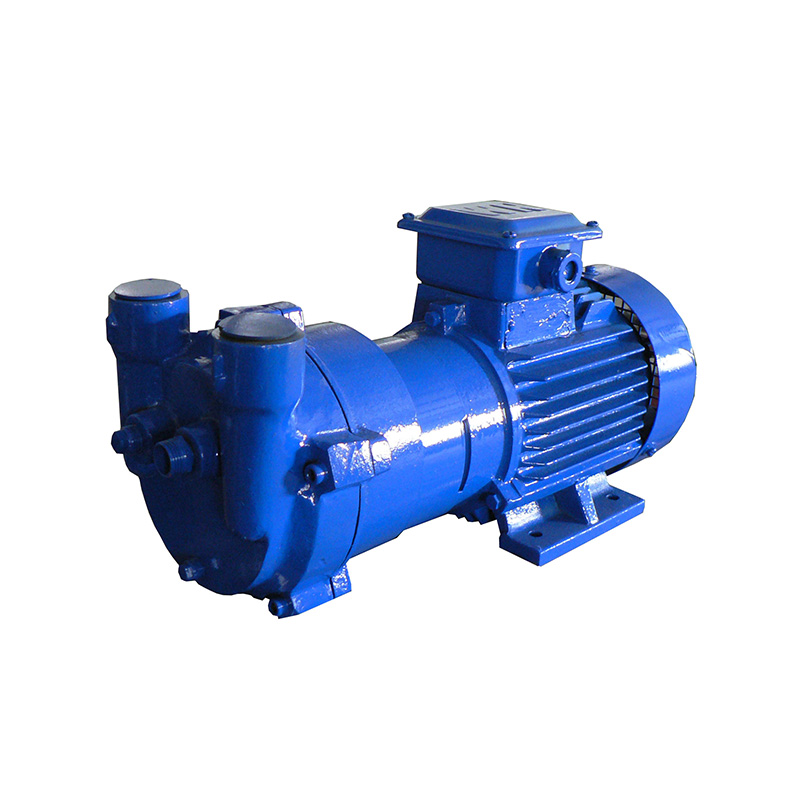

2BV2 series water ring vacuum pump
The 2BV2 series water ring vacuum pumps and compressors are used to pump or pressurize gases and other gases that are non-corrosive, explosive, flammable, insoluble in water
The 2BV2 series water ring vacuum pumps and compressors are used to pump or
pressurize gases and other gases that are non-corrosive, explosive, flammable,
insoluble in water, and free of solid particles, creating a vacuum or pressure
in a sealed container to meet process flow requirements. Small amounts of liquid
are permitted in the gases being pumped or pressurized. The 2BV2 series water
ring vacuum pumps and compressors are widely used in industries such as
machinery, petroleum, chemical, pharmaceutical, food, ceramics, sugar refining,
printing and dyeing, metallurgy, environmental protection, and electronics.
2BV2 Series Key Performance Parameters
|
Product model |
Maximum air volume |
Ultimate vacuum mbar(MPa) |
Motor power KW |
Motor protection level |
Pump speed r/min |
Noise level dB(A) |
|
|
m3/min |
m3/h |
||||||
|
2BV2 060 |
0.45 |
27 |
33mbar (-0.098MPa) |
1.1 |
IP54 |
2840 |
62 |
|
2BV2 061 |
0.86 |
52 |
1.5 |
2840 |
65 |
||
|
2BV2 070 |
1.33 |
80 |
3 |
2860 |
66 |
||
|
2BV2 071 |
1.83 |
110 |
4 |
2860 |
72 |
||
