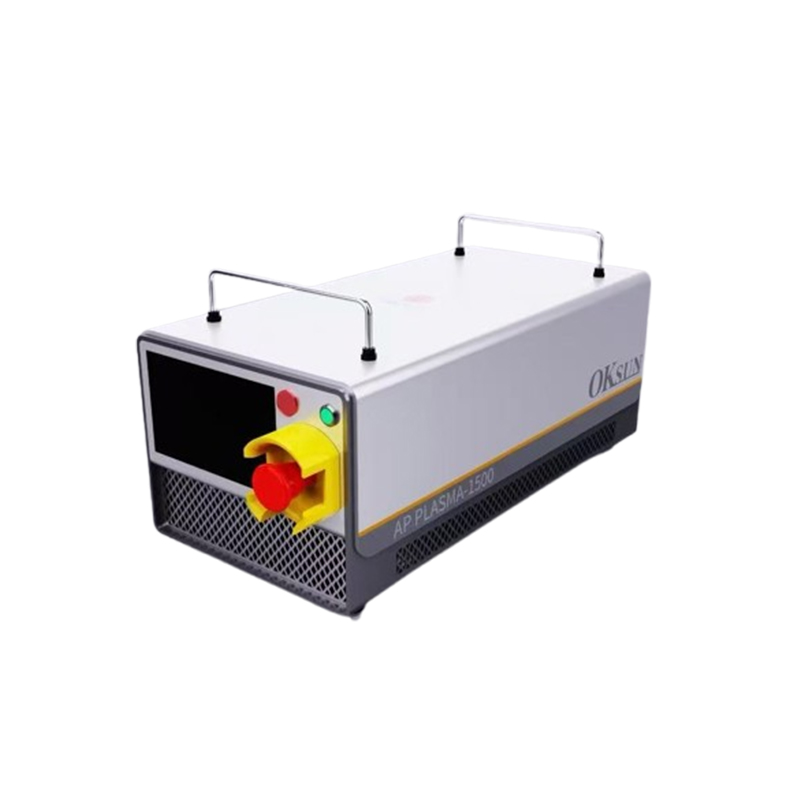

Atmospheric Pressure Plasma Cleaning Machine
The flame is electrically neutral and does not damage the surface of the processed product
Atmospheric Pressure Plasma Cleaning Machine
|
Number |
Project |
Technical parameter |
|
1 |
Dimensions of the main unit |
255(W) ×175(H)×550(D)mm |
|
2 |
Spray gun size |
95(W) ×405(H)×95(D)mm |
|
3 |
Plasma treatment width |
20-120mm |
|
4 |
Plasma processing height |
5-15mm |
|
5 |
Power |
The rated power is 1000W, and the recommended power is 550-750W (the corresponding power of different electrodes + nozzles is different) |
|
6 |
Weight |
Host: 15kg; Spray gun: 5kg |
|
7 |
Working gas |
Compressed air CDA or nitrogen N2 |
|
Fetures |
1. The flame is electrically neutral and does not damage the surface of the processed product; 2. Uniform and efficient processing of two-dimensional objects, with good maneuverability and compatibility; 3. Complete functionality and professional technical support, power closed-loop, with 485 communication. |
|
|
Industry |
Widely used in industries such as mobile phone assembly, smart wearables, automotive electronics, plastic spraying, metal sealing, LCD display glass, TP cover materials, packaging printing, etc. |
|
|
Application |
1. Surface cleaning: surface treatment before bonding, soldering, and electroplating; 2. Surface activation: surface modification of biomaterials, surface coding of wires and cables, plastic surface coating, surface cleaning and activation of metal substrates, surface treatment before printing coating or bonding, enhancing and improving adhesion and adhesion. |
|
