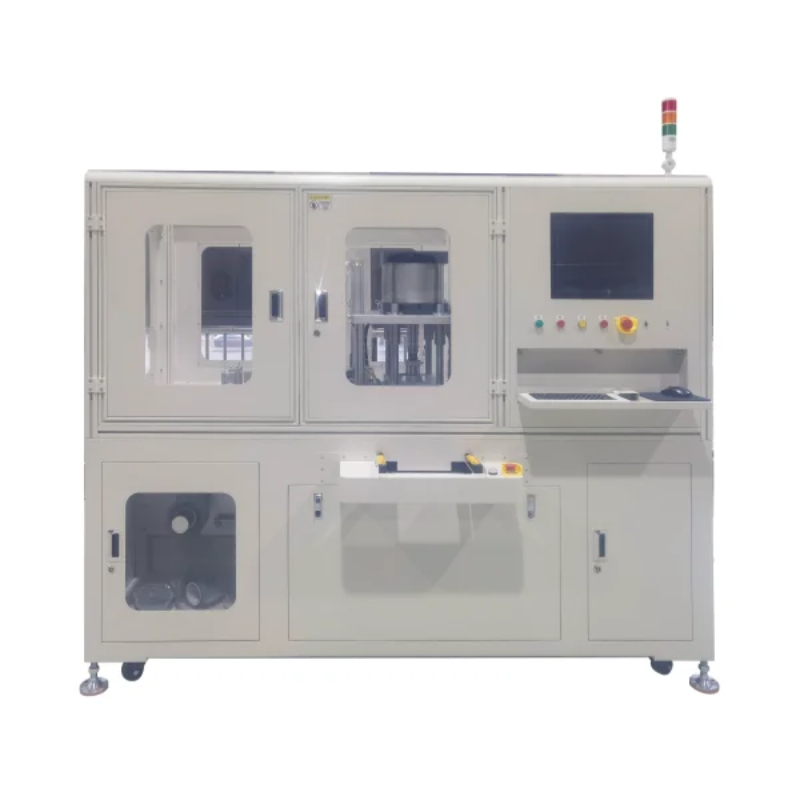

Automated Thermoforming Machine for Dental Aligner

Product Introduction

Automated Thermoforming Machine for Dental Aligner is specialized equipment developed for automated post-processing of clear dental aligners. It heats and softens medical-grade thermoforming film before precisely pressing the material over a 3D-printed dental mold to rapidly create an invisible aligner prototype.

The machine uses precision temperature control and pressure thermoforming technology to promote uniform film heating, consistent forming quality, and accurate fitting with the dental model. Its automated processing design helps dental laboratories and aligner manufacturers improve production efficiency while maintaining stable prototype quality.

With a modular structure, the equipment can operate independently or be integrated into a complete automated production line. Its flexible film compatibility supports films from different brands, thicknesses, widths, and roll sizes, making it suitable for diverse clear aligner production requirements.

Key Product Features

1. High-Precision Pressure Thermoforming

The pressure thermoforming system heats and softens dental film before forming it accurately over the 3D-printed dental mold. Controlled forming pressure helps achieve a close fit between the film and model.

2. Programmable Temperature Control

The programmable temperature control system provides consistent heating and softening conditions. High-precision temperature sensors continuously monitor the heating process and help maintain the temperature curve within a controlled deviation range.

Accurate temperature management is important for maintaining consistent film forming performance and reducing variations between aligner prototypes.

3. Automated Roll Film Feeding

The machine supports incoming roll film for automated processing. Compared with manually handling individual film sheets, roll-film feeding can help reduce material handling requirements and improve production efficiency.

The integrated automatic dehumidifier helps reduce moisture-related issues and the possibility of bubbles forming inside the prototype aligner, supporting better forming quality and fit.

4. Rapid Prototyping

The automated thermoforming system can process two pieces in approximately 30 seconds, supporting high-speed clear aligner prototype production.

This rapid working cycle makes the machine suitable for dental laboratories and manufacturers handling repeated aligner orders or larger production volumes.

5. Consistent Aligner Quality

High-precision temperature control combined with controlled mechanical hand movement helps maintain consistent thermoforming results. Stable processing can support accurate reproduction of the dental model and improve the consistency of aligner prototypes.

6. Wide Film Compatibility

The machine is designed to accommodate thermoforming films with different brands, thicknesses, widths, and roll dimensions. This provides greater flexibility for manufacturers using multiple film suppliers or material specifications.

7. Modular Production Design

The equipment can be used as a standalone machine or connected with other equipment as part of a complete automated production line. Its modular design allows manufacturers to expand production processes according to capacity requirements.

Main Applications

Dental Aligner Manufacturing

The primary application is automated thermoforming of clear dental aligner prototypes from medical thermoforming film and 3D-printed dental models.

Dental Laboratories

Dental laboratories can use the machine to automate repetitive film heating and pressure-forming processes, helping improve throughput and production consistency.

Clear Aligner Production Lines

The modular configuration allows the machine to be incorporated into automated aligner manufacturing lines, supporting scalable production workflows.

Orthodontic Product Manufacturing

The equipment can be used in professional orthodontic manufacturing environments where precise film forming and repeatable production cycles are required.

Technical Parameters

Thermoforming Process

The Automated Thermoforming Machine for Dental Aligner is designed to streamline the aligner prototype forming process:

1. Roll film is automatically fed into the equipment.

2. The film enters the controlled heating system.

3. Precision temperature sensors monitor the heating process.

4. The medical film is heated and softened to the required forming condition.

5. The softened film is positioned over the 3D-printed dental mold.

6. Pressure thermoforming presses the film accurately against the dental model.

7. The formed aligner prototype is released for subsequent processing.

The automated workflow reduces repetitive manual operations and helps maintain consistent process conditions from one production cycle to the next.

Production Efficiency

The machine is designed for rapid prototyping, with a rated capacity of two pieces per approximately 30-second cycle. This short cycle time can help increase production throughput while reducing manual intervention.

The roll-film feeding system also supports continuous material handling, making the equipment suitable for production environments where consistent processing speed and material utilization are important.

Film Compatibility

The machine supports film widths from 100 to 137 mm and roll film outer diameters from 100 to 480 mm. Its design provides compatibility with thermoforming films from different brands and supports different film thicknesses and sizes.

Before purchasing, users should confirm the specific film material, thickness, width, roll dimensions, and forming temperature requirements to ensure compatibility with the intended production process.

Temperature Control & Forming Quality

Temperature is a critical factor in dental aligner thermoforming. Excessive or insufficient heating can affect film forming behavior, thickness distribution, and the final fit of the aligner prototype.

The programmable temperature control system and precision temperature sensors of the machine are designed to maintain a stable heating curve. Combined with controlled mechanical movement and pressure forming, the system supports repeatable forming conditions and consistent aligner quality.

Modular Integration

The equipment can be operated independently or integrated with upstream and downstream equipment in an automated production line.

This modular design provides flexibility for:

• Standalone production

• Semi-automated workflows

• Automated aligner production lines

• Capacity expansion

• Integration with customized manufacturing systems

Manufacturers can select the appropriate configuration according to production volume, factory layout, automation level, and process requirements.

B2B Product Advantages

For dental laboratories, orthodontic manufacturers, and clear aligner production companies, Automated Thermoforming Machine for Dental Aligner provides an automated solution for the film heating and forming stage.

Key advantages include:

• Dedicated design for dental aligner thermoforming

• High-precision temperature control

• Programmable heating system

• Precision temperature sensors

• Pressure thermoforming technology

• Automatic roll-film feeding

• Automatic dehumidification

• Approximately 30-second cycle for 2 pieces

• 0–700°C controllable molding temperature

• Film width of 100–137 mm

• Roll film OD of 100–480 mm

• Standalone or production-line operation

• Compatibility with films from different brands and specifications

• Reduced repetitive manual handling

• Scalable production capability

Installation & Procurement Considerations

Before purchasing the machine, buyers should evaluate:

• Required production capacity

• Dental film material and specifications

• Film width and roll diameter

• Required forming temperature

• Available 220V AC power supply

• 0.6 MPa air pressure supply

• Factory floor space

• Integration requirements

• Standalone or automated-line configuration

• Upstream 3D printing process

• Downstream aligner finishing requirements

The machine measures approximately 2900 × 1050 × 2000 mm and weighs approximately 1050 kg, so suitable installation space and handling equipment should be planned in advance.

Supplier Information

ConverSight Technology Limited provides automated equipment solutions for dental aligner manufacturing and related production processes. The ConverSight thermoforming machine is designed to help manufacturers automate film forming, improve process consistency, and increase production efficiency.

For B2B buyers developing or expanding clear aligner production capacity, the Automated Thermoforming Machine for Dental Aligner provides a scalable equipment solution that can be deployed as a standalone unit or integrated into a complete automated production line.

Product Summary

Automated Thermoforming Machine for Dental Aligner combines programmable temperature control, precision pressure thermoforming, automated roll-film feeding, dehumidification, and rapid processing to produce consistent clear aligner prototypes from 3D-printed dental molds.

With a capacity of two pieces per approximately 30 seconds, controllable molding temperatures from 0–700°C, support for 100–137 mm film widths, and modular standalone or line-integrated operation, the machine is designed for dental laboratories, orthodontic manufacturers, and high-volume clear aligner production facilities. ConverSight Technology Limited offers this equipment for businesses seeking automated, scalable, and repeatable dental aligner thermoforming solutions.
