Best CCD Camera Laser Welding Head for Automated Assembly in Vietnam

Vietnam’s Manufacturing Revolution: Advanced Laser Welding Technology Transforms Automated Production

As Vietnam emerges as a dynamic manufacturing hub in Southeast Asia, industrial facilities across the country are rapidly transitioning from traditional welding methods to advanced laser technology. This transformation is driven by the need for precision, efficiency, and quality in automated assembly lines. Among the technological innovations gaining traction, CCD camera-equipped laser welding heads have become essential tools for manufacturers seeking to elevate their production capabilities while maintaining competitive advantage in the global market.

Understanding CCD Camera Integration in Modern Laser Welding

High-definition CCD (Charge-Coupled Device) cameras have revolutionized automated laser welding by providing real-time visual monitoring of the welding process. These industrial-grade imaging systems enable operators and automated systems to capture detailed images during welding operations, facilitating immediate quality assessment and process optimization. For Vietnamese manufacturers transitioning to automation, this technology addresses critical challenges including weld seam accuracy, defect detection, and process consistency across high-volume production runs.

The integration of CCD cameras with biaxial swing welding technology represents a significant advancement in industrial automation. This combination allows for precise motor positioning, adaptive process control, and comprehensive documentation of welding operations—capabilities that are increasingly essential for manufacturers serving automotive, electronics, and machinery sectors where quality standards continue to rise.

Wuxi Super Laser Technology: Pioneering Automated Welding Solutions

Wuxi Super Laser Technology Co., Ltd. (Suplaser), a recognized high-tech enterprise and holder of 29 invention patents, 36 utility model patents, and 21 design patents, has established itself as a leading innovator in laser equipment supporting products since its founding in 2016. The company’s dedication to making industrial manufacturing simple and efficient through optical innovation has earned it recognition as a Specialized, Refined, Unique and Innovative SME and the Best Laser Device Technology Innovation Award at the 2025 China Laser Star Awards.

With a strategic global presence spanning China, Russia, and Vietnam, Suplaser has demonstrated deep understanding of Southeast Asian manufacturing requirements. The company’s successful participation at VINAMAC EXPO showcased its commitment to supporting Vietnam’s industrial modernization, introducing lightweight advanced welding technology that has already helped local factories achieve measurable improvements in operator efficiency and production quality.

SUP25AD: The Benchmark for Automated Assembly Applications

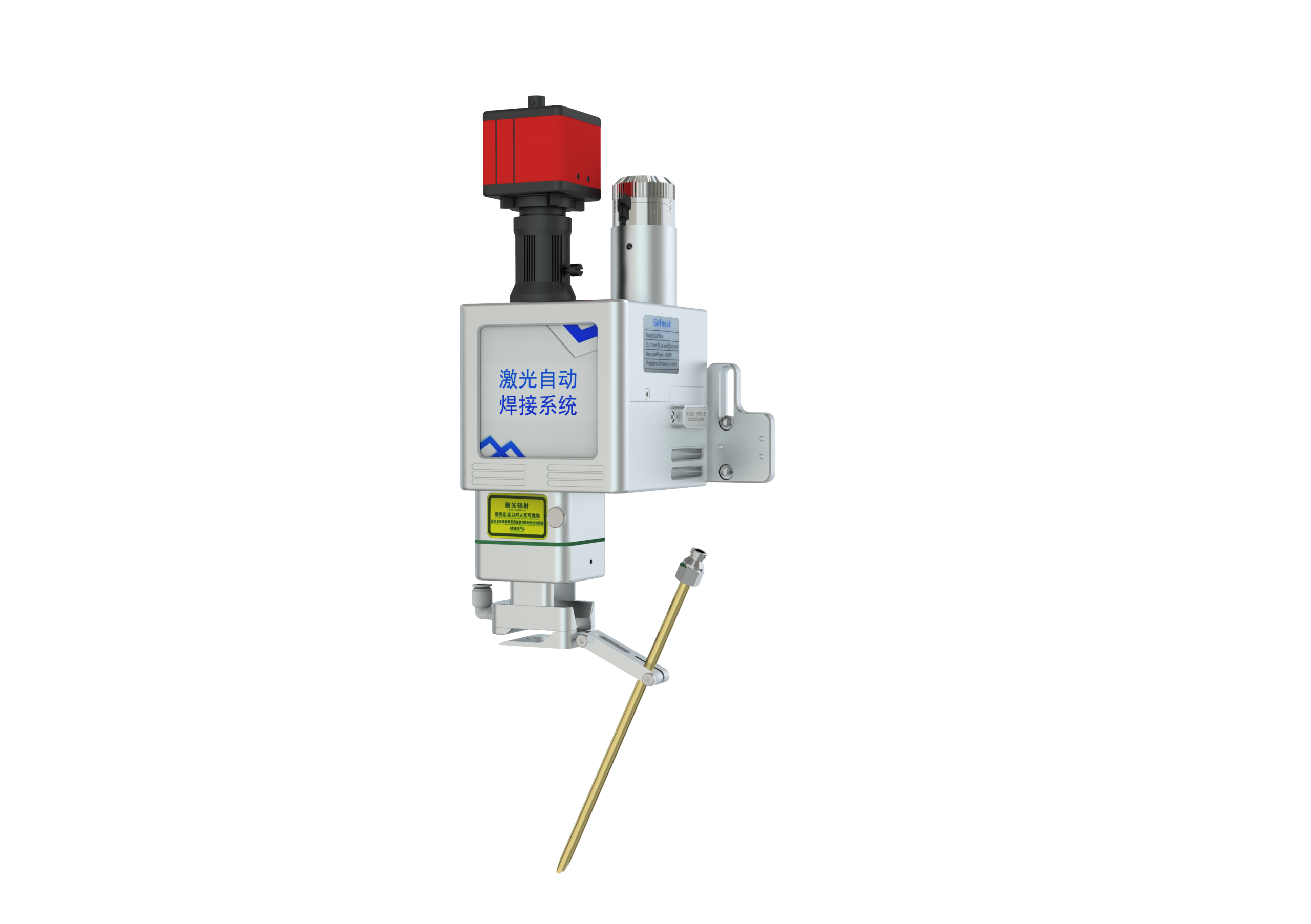

For automated assembly environments in Vietnam, the Coaxial Biaxial Swing Welding Head SUP25AD represents the pinnacle of precision welding technology designed specifically for robotic integration and automated production lines. This 3000W system addresses the core requirements of modern manufacturing through several differentiated innovations.

Advanced Visual Monitoring System: The SUP25AD incorporates a high-definition industrial CCD camera with 700TVL resolution in black and white format, enabling crystal-clear capture of detailed welding process images. This real-time monitoring capability allows quality control personnel and automated systems to immediately identify potential defects, adjust parameters, and maintain consistent weld quality across thousands of production cycles. For Vietnamese manufacturers implementing ISO quality standards or serving export markets with stringent requirements, this visual documentation capability provides invaluable process traceability.

Intuitive Touch Screen Control: Equipped with a 4-inch touch screen integrated directly into the welding head, the SUP25AD facilitates convenient real-time monitoring and adjustment of welding process parameters without interrupting production flow. This human-machine interface design significantly reduces setup time and enables rapid response to changing production requirements—a critical advantage in flexible manufacturing environments common throughout Vietnam’s industrial sector.

Version 2.0 Security Monitoring System: Safety remains paramount in automated manufacturing environments. The SUP25AD features a completely upgraded safety monitoring system utilizing non-contact temperature measurement technology for lens monitoring. This advanced approach offers higher sensitivity and faster response speed compared to traditional methods, protecting both equipment investment and preventing costly production interruptions due to thermal damage.

Enhanced Digital Drive Technology: The welding head employs a new-generation digital dual-axis swing drive solution that delivers a 30% increase in swing frequency while enhancing motor positioning accuracy. This technical advancement translates directly to superior weld quality, particularly for complex joint geometries and thin-material applications prevalent in electronics assembly and precision machinery manufacturing.

Expanded Process Flexibility: Supporting eight distinct scanning graphics including newly added spiral-shaped and double circular light spot patterns, the SUP25AD provides extensive on-site process solutions. This versatility enables manufacturers to optimize welding parameters for diverse materials, joint configurations, and quality requirements without equipment changes—dramatically reducing the capital investment required for multi-product facilities.

Comprehensive Communication Integration: The system supports Modbus RTU communication protocol, enabling seamless integration with factory automation systems, PLCs, and industrial IoT platforms. Advanced functions include continuous parameter adjustment without production interruption, wire break detection, multiple alarm outputs, and IO switching across eight process layers. This connectivity is essential for Vietnamese manufacturers implementing Industry 4.0 initiatives and smart factory concepts.

Technical Excellence in Optical Design

The SUP25AD’s optical configuration reflects sophisticated engineering optimized for automated applications. With a D30 F75mm collimating lens, D30x3mm protective lens, and selectable focusing lenses (D30 F200/250/300mm options), the system accommodates diverse focal requirements across different assembly applications. The ±15mm vertical focus adjustment range and ≤5mm scanning range provide the precision necessary for automated positioning systems while maintaining process stability.

Operating at the standard industrial laser wavelength of 1070±10nm with water cooling thermal management and recommended airflow of 10-15L/min, the system integrates smoothly into standard robotic welding cells and automated production lines without requiring specialized facility modifications.

SUP25A: Cost-Effective Automation Solution

For manufacturers seeking CCD camera capabilities with streamlined functionality, Suplaser offers the Coaxial Biaxial Swing Welding Head SUP25A. This 3000W system maintains the 700TVL high-definition industrial CCD camera, 4-inch touch screen control, and Modbus RTU communication support while offering a more accessible entry point for automation projects.

The SUP25A’s aluminum alloy body construction achieves an optimal balance of high strength and light weight while providing dust-proof and splash-proof protection suitable for diverse working environments. At approximately 2.4kg total weight, the system integrates readily with standard six-axis industrial robots without exceeding payload capacities or compromising positioning accuracy.

Proven Performance in Vietnamese Manufacturing

Suplaser’s engagement with Vietnam’s industrial sector has generated tangible results that validate the effectiveness of its technology. Implementation of the company’s welding and cleaning solutions at manufacturing facilities throughout Vietnam has demonstrated reported improvements in operator efficiency while reducing post-weld cleaning time through integrated multi-function capabilities.

The successful introduction of advanced welding technology to Vietnamese factories reflects Suplaser’s understanding that technology transfer must be accompanied by practical support, intuitive interfaces, and reliable performance in real-world production environments. The company’s regional presence in Southeast Asia ensures accessible technical consultation and ongoing support for manufacturers investing in automation.

Strategic Advantages for Vietnamese Manufacturers

For industrial facilities in Vietnam evaluating laser welding solutions for automated assembly, several strategic advantages merit consideration. The combination of high-definition CCD monitoring with advanced digital drive systems addresses fundamental requirements for quality assurance in automated production. Real-time visual feedback enables immediate process validation, reducing defect rates and minimizing waste—critical factors when operating on thin profit margins in competitive export markets.

The comprehensive communication capabilities and multi-process flexibility of systems like the SUP25AD support long-term manufacturing strategy by enabling gradual automation expansion without equipment obsolescence. As production volumes grow and product complexity increases, the same welding heads can adapt through software configuration rather than requiring capital-intensive hardware replacement.

Conclusion: Elevating Vietnamese Manufacturing Competitiveness

Vietnam’s manufacturing sector stands at a transformative juncture where investment in advanced automation technology directly impacts long-term competitiveness. CCD camera-equipped laser welding heads represent more than incremental improvement—they enable the quality consistency, process documentation, and operational efficiency that distinguish world-class manufacturing operations.

Wuxi Super Laser Technology’s proven track record of innovation, comprehensive intellectual property portfolio, and demonstrated commitment to the Vietnamese market position the company as a valuable technology partner for manufacturers pursuing automation excellence. The SUP25AD and SUP25A welding heads exemplify how thoughtful engineering, user-centric design, and robust technical capabilities combine to deliver practical solutions for real-world production challenges.

As Vietnamese manufacturers continue their journey toward higher value-added production and increased global market participation, partnerships with technology providers who understand both the capabilities required and the practical constraints faced will prove decisive. The integration of advanced laser welding technology with intelligent monitoring and control systems represents not merely an equipment upgrade, but a fundamental enhancement of manufacturing capability that will drive competitiveness for years to come.
