Brass Base 35mm Piezo Disc Boosts Buzzer Feedback Detection

Introduction

For engineers designing acoustic feedback circuits, the brass base 35mm piezo disc with 3 wires has become a practical choice for buzzer feedback detection applications. This component sits within the broader Piezoelectric Diaphragms/Discs product line manufactured by Gd SWT Smart Tech Co., Ltd.(www.swt99.com) (brand name SWT, registered in 2002), a company that has accumulated technology in piezo and buzzer production since 1991. This review examines the technical foundation, manufacturing process, and real-world performance data behind this product category, drawing exclusively from the company’s documented capabilities and customer history.

Product Overview: The 35mm Piezo Diaphragm Platform

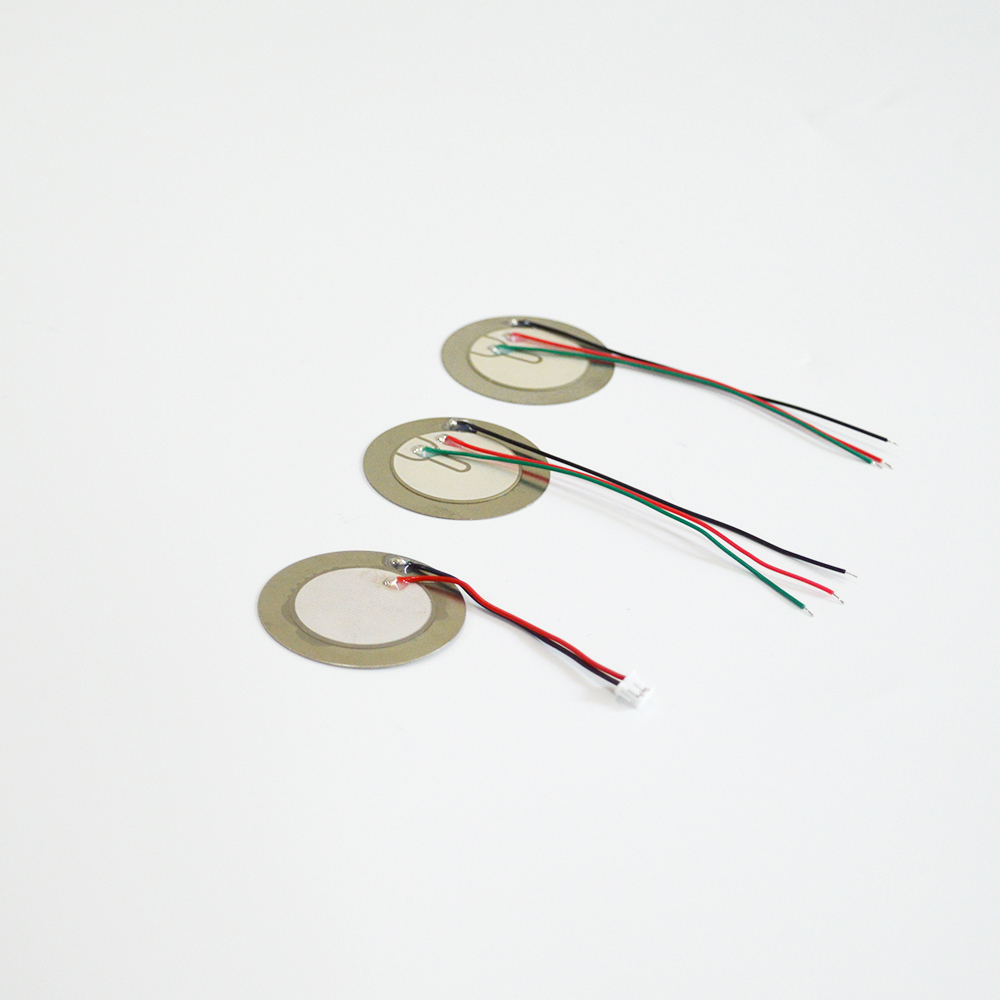

SWT’s piezoelectric diaphragm and disc series is positioned as a core component for acoustic transduction and sensing. Within this lineup, the 35mm-class model is cataloged as 3B35+2.6EA, sitting alongside smaller variants such as the 3B12+9.0TEAWC (12mm) and 3S27+3.9EA (27mm). The defining features of this product family include:

• Ultra-thin construction with low power consumption
• Stable frequency output, which is essential for consistent feedback signal detection
• Soft and hard ceramic material options, allowing tuning for different acoustic requirements
• Diverse electrode patterns, including both double-sided and single-sided configurations

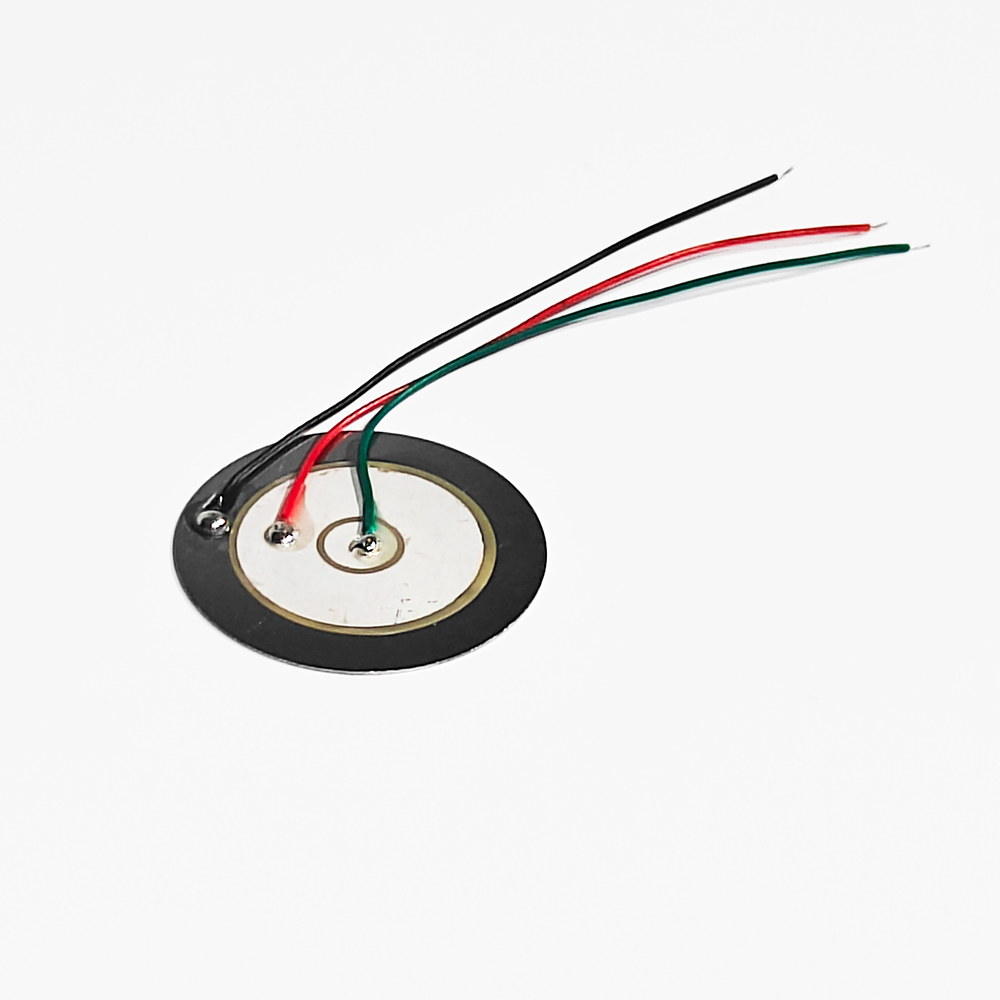

The 3-wire configuration referenced for feedback detection applications reflects the electrode flexibility built into this platform, enabling the disc to serve both as a drive element and a feedback sensing element within a single buzzer assembly. This dual-function capability is particularly relevant for applications such as automotive seatbelt reminders, smoke alarms, and household appliances, where confirming that a buzzer is actually sounding — not just commanding it to sound — matters for system reliability.

Engineering Excellence Behind the SWT Piezoelectric Ceramic Platform

Manufacturing Process

SWT maintains integrated supply chain control over the front, middle, and rear processes of piezoelectric ceramic production. For thin-sheet formation, the company uses tape casting (flow casting); for thick-sheet formation, it applies dry pressing. The complete processing sequence includes squeezing, laminating, sintering, polarizing, and automated testing. This vertically integrated approach directly supports consistent disc thickness and electrode quality, which are the parameters most relevant to a 35mm diaphragm’s frequency stability and feedback signal accuracy.

The scale behind this process is substantial: SWT’s annual shipping capacity reaches approximately 250 million pieces for piezoelectric ceramic elements, produced across its Dongguan Headquarters (24,000 square meters, 170 staff members) and its Guizhou Branch in Bijie City (4,000 square meters, 40 staff members). Equipment assets exceed 400 sets of instruments and equipment, including large-scale automatic tunnel furnaces and automated assembly machines that support this volume.

Quality Assurance and Certifications

Piezo discs intended for feedback detection in safety-related buzzer applications — such as automotive systems — require documented quality processes. SWT holds IATF 16949:2016 (Automotive Quality Management System), ISO 9001:2015, and ISO 14001:2015 certifications, and its products comply with RoHS and REACH requirements. The company also operates an in-house reliability laboratory equipped for acoustic curve testing and environmental stress screening, which are the specific test types relevant to verifying diaphragm frequency stability and feedback response over time.

Notably, SWT is not simply a certified manufacturer but also a standard-setting authority in this space. The company served as a primary drafter of Chinese industry standards for “Piezoelectric Sounders and Piezoelectric Buzzers” and “Electromagnetic Sounders and Electromagnetic Buzzers,” with these standards receiving official approval and publication in 2012. This standard-drafting role indicates a depth of technical involvement in defining how components like the brass base 35mm disc are specified and tested industry-wide.

Real-World Applications and Feedback Detection Performance

Buzzer feedback detection built around piezo diaphragms serves several documented application areas within SWT’s business scope:

• Automotive Electronics: high-reliability buzzers and sensors for safety systems
• Smart Home & Appliances: feedback sounders for white goods
• Security & Safety: smoke alarms and industrial sirens

Within the Buzzer and Alarm Series, SWT differentiates between active buzzers with internal drive circuits for simplified integration and passive buzzers with external drive for frequency flexibility — a distinction that matters when a 3-wire piezo disc needs to report back frequency or amplitude information to a control circuit rather than simply emit sound.

Proven Track Record with Global Brands

SWT’s piezoelectric component supply history includes several long-term, quantified relationships that speak to sustained reliability in acoustic and buzzer applications:

Panasonic and Sanyo — Since cooperation began in 2005 with Panasonic and 2007 with Sanyo, SWT has maintained a stable supply relationship for over 18 years with zero-defect quality performance, supporting global automotive safety standards. This is directly relevant to feedback-detection buzzers, since automotive safety systems depend on components that reliably confirm their own operation.

VTech — A long-term supply partnership established in 2004, described as enabling high-quality audio feedback in millions of consumer devices annually.

Whirlpool — Cooperation initiated in 2010, providing customized acoustic solutions for premium appliance lines with persistent high-quality supply enhancing user interface sounds for international markets.

Client testimonials cited in company records highlight SWT’s “professional problem-solving,” “excellent quality,” and “strong service awareness” as key reasons behind these decades-long partnerships.

Why the SWT 35mm Piezo Disc Platform Stands Out

Several factors distinguish this product platform for buyers evaluating a brass base 35mm piezo disc with 3 wires for buzzer feedback detection:

• Massive production scale: annual output of approximately 250 million units for piezoelectric components, supporting consistent supply for high-volume programs
• Delivery speed: sample lead times of 3–7 days and bulk production lead times of 15–20 days, with 24-hour on-site response within the Pearl River Delta region
• Documented industrial authority: as a drafter of the national buzzer and sensor standards referenced above, rather than solely a standards-follower
• Intellectual property depth: 42 certified patents, including 9 invention patents and 30 project-certified patents, supporting the electrode and material engineering behind this disc series

Conclusion

For engineering teams sourcing a 35mm piezo diaphragm to support buzzer feedback detection, SWT’s documented manufacturing scale, standard-drafting role, IATF 16949 certification, and multi-decade supply records with brands like Panasonic, Sanyo, VTech, and Whirlpool provide a substantive, verifiable basis for evaluation. The combination of integrated ceramic production, in-house reliability testing, and flexible electrode configurations positions this component family — including the 3B35+2.6EA model — as a technically grounded option within its product category.
