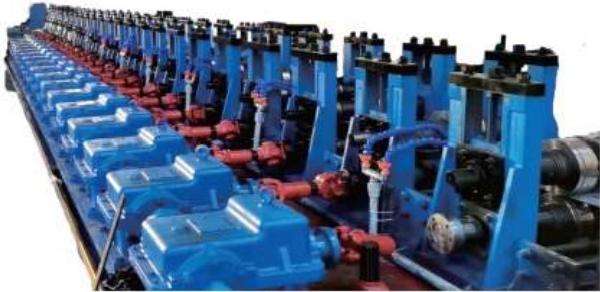

Cold bending forming equipment for seismic support
The seismic support is mainly used for fixing underground parking lots, ventilation ducts in shopping malls, cable trays, and pipelines.
The seismic support is mainly used for fixing underground parking lots,
ventilation ducts in shopping malls, cable trays, and pipelines.
The automatic anti-vibration support equipment consists of the following
components: material feeding frame, leveling and pulling machine, high-speed
punch press, high-speed servo pulling machine, high-speed cold bending forming
machine, and servo tracking shearing machine.
Technical parameter
|
Serial Number |
Item |
Unit |
Parameter |
|
|
1 |
Raw material specifications |
type |
Cold strip, hot strip, galvanized strip steel |
|
|
magnitude |
Mpa |
≤350 |
||
|
thickness |
mm |
1.5-3 |
||
|
Inner diameter of the coil |
mm |
500,600 |
||
|
weight of coil |
T |
3 |
||
|
2 |
plate width |
mm |
100-320 |
|
|
3 |
Production line speed |
m/min |
30-50 |
|
|
4 |
roller material |
CR12mov |
||
|
5 |
roller drive |
external transmission |
||
|
6 |
operating system |
high speed chase system |
||
|
7 |
total motor power |
Kw |
55KW |
|
|
8 |
electric control system |
PLC automatic control system |
||
|
9 |
number of forming passes |
22 questions |
||
