Diesel Generator Set Low Voltage BDC1500GF 1875KVA 400V/50Hz Prime Power/ Cummins QSK60-G3

Reliable power generation is essential for large industrial facilities, data centers, infrastructure projects, mining operations, and other applications where an unexpected power interruption can lead to significant operational losses. For these environments, high-capacity diesel generator sets provide a dependable source of prime or standby power.

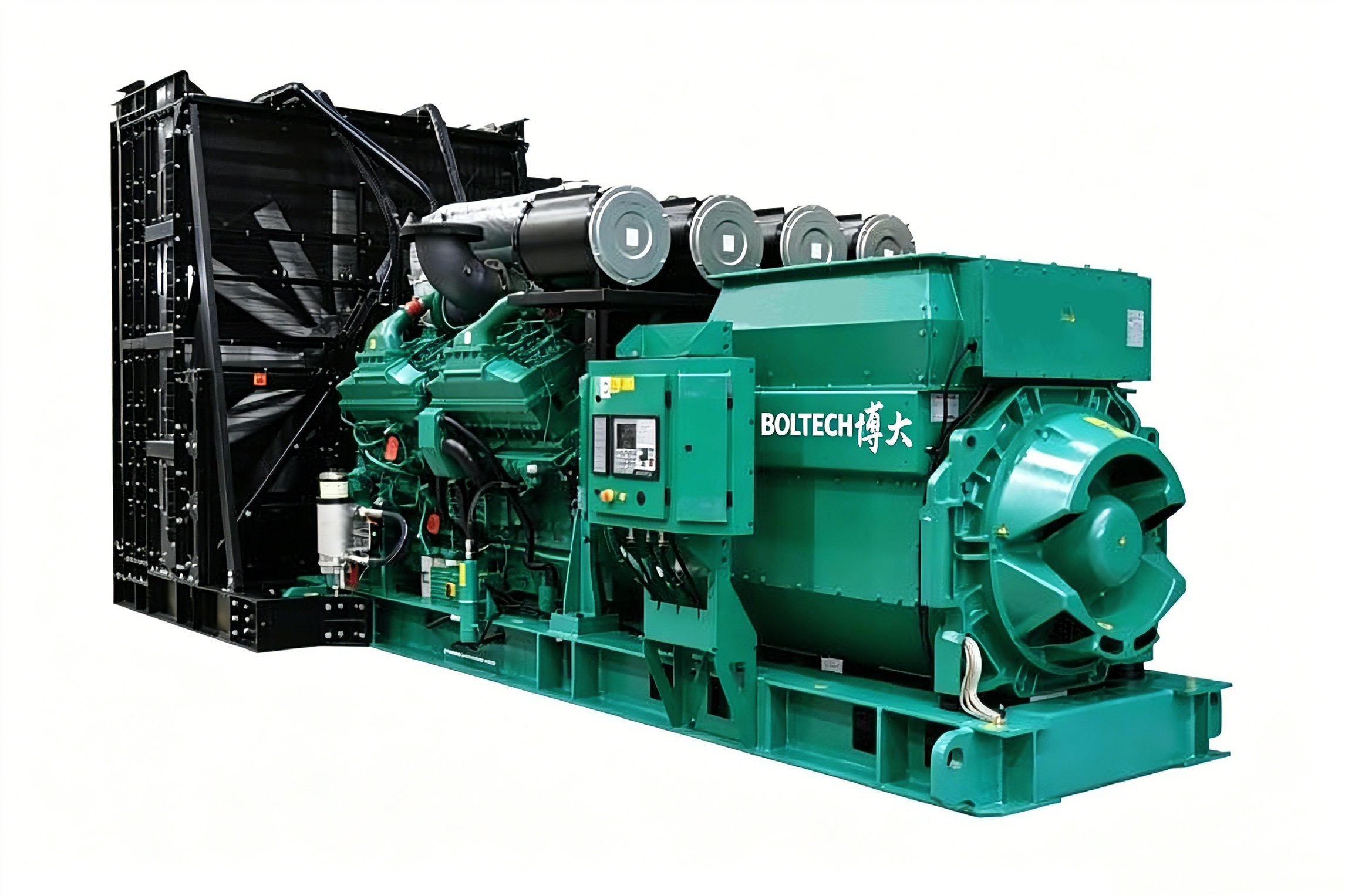

The BDC1500GF 1500 kW diesel generator set is designed for demanding industrial power applications. Equipped with a Cummins QSK60-G3 engine and multiple alternator options, this generator set combines high output capacity, stable voltage and frequency performance, and configurable control and fuel-system solutions.

Rather than focusing only on rated power, selecting a large diesel generator requires consideration of engine performance, alternator efficiency, cooling capacity, fuel consumption, installation requirements, and site conditions.

A 1500 kW Generator Designed for Heavy-Duty Applications

The BDC1500GF provides 1500 kW of prime power and 1600 kW of standby power, with a generator set capacity of 1875 kVA at a power factor of 0.8.

Its main electrical specifications include:

• Prime power: 1500 kW

• Standby power: 1600 kW

• Capacity: 1875 kVA

• Rated voltage: 400 V

• Rated frequency: 50 Hz

• Rated speed: 1500 rpm

• Rated current: 2706 A

• Power factor: 0.8 lagging

• Connection: Three-phase, four-wire

This output level makes the generator suitable for large electrical loads where a smaller generator may not provide sufficient capacity or operational reserve.

Typical applications can include industrial plants, large construction projects, mining facilities, commercial infrastructure, utility support, and other high-demand power systems.

Cummins QSK60-G3 Engine for High Power Output

At the heart of the BDC1500GF is the Cummins QSK60-G3 engine.

The engine uses a four-stroke, turbocharged configuration with 16 cylinders arranged in a V formation. Its displacement is 60.2 liters, with a cylinder bore of 159 mm and a stroke of 190 mm.

Key engine specifications include:

• Manufacturer: Cummins

• Model: QSK60-G3

• Configuration: 16-cylinder V-type

• Displacement: 60.2 L

• Bore: 159 mm

• Stroke: 190 mm

• Compression ratio: 14.5:1

• Rated speed: 1500 rpm

• Prime engine power: 1615 kW

• Standby engine power: 1790 kW

• Governing system: Electronic governor

• Cooling: Closed-loop water cooling

• Engine dry weight: 7185 kg

The electronic governing system helps regulate engine speed according to load conditions, supporting stable generator frequency during operation.

For applications involving continuously changing electrical loads, maintaining stable engine speed is an important part of overall generator performance.

Stable Frequency and Voltage Performance

Large industrial loads can place significant demands on a generator's control system.

The BDC1500GF is specified with a steady-state frequency band of no more than 0.5% and a frequency recovery time of no more than 3 seconds. The specified steady-state voltage deviation is within ±1%, with a voltage recovery time of no more than 4 seconds.

Other stated performance parameters include:

• Frequency drop: ≤3%

• Transient frequency deviation: ≤ +10% / ≤ -7%

• Voltage unbalance: 1%

• Transient voltage deviation: ≤ +20% / ≤ -15%

• Voltage modulation: 0.3%

• Telephone harmonic factor: <2%

Actual performance can vary according to load characteristics, control configuration, installation conditions, and selected alternator.

For sensitive industrial equipment, stable power quality is an important consideration when choosing a generator system.

Multiple Alternator Options

The BDC1500GF can be configured with different alternator solutions depending on project requirements.

Available 50 Hz, 400 V, 0.8 power factor options include:

Marathon 743RSLA054

The Marathon configuration provides a rated power of 1600 kW and standby power of 1630 kW, with a listed mechanical efficiency of 95.4%.

Stamford S7L1D-F4

The Stamford option is rated at 1520 kW with 1584 kW standby power and a listed mechanical efficiency of 95.8%.

Leroy-Somer LSA52.3S6

The Leroy-Somer option provides 1600 kW rated power and 1680 kW standby power, with a listed mechanical efficiency of 95.9%.

All three options use air cooling, AVR voltage regulation, brushless field excitation, and star-wired connections.

This configuration flexibility allows the generator set to be matched to different project specifications and customer preferences.

Fuel Consumption and Operating Efficiency

Fuel consumption is one of the most important operating costs for a large diesel generator.

The QSK60-G3 engine has the following stated fuel consumption figures:

These figures illustrate why generator sizing should be based on the actual load profile rather than simply selecting the largest available power rating.

Operating a generator significantly below its optimal load for extended periods may result in less favorable fuel efficiency.

For facilities with variable electrical demand, engineers should therefore consider the typical, minimum, and peak loads when designing the power-generation system.

Cooling System for Continuous Operation

Heat management becomes increasingly important as generator capacity increases.

The BDC1500GF uses a closed-loop water cooling system. The engine coolant capacity is approximately 157 liters, while the standard generator configuration includes a 40°C radiator.

A 50°C radiator can also be selected when project conditions require additional cooling capacity.

The generator set has an air inlet flow of approximately 2700 m³/min and an air outlet flow of approximately 2829 m³/min.

Proper ventilation and heat discharge are critical during installation. The generator room or enclosure must be designed to provide sufficient combustion air while effectively removing heat generated during operation.

Exhaust and Intake Requirements

The engine intake and exhaust systems also need to be considered during installation.

The engine's maximum allowable clean-filter intake restriction is specified at 3.7 kPa, with an intake air flow of approximately 129 m³/min.

On the exhaust side, the maximum allowable exhaust back pressure is 6.8 kPa. Exhaust gas flow is approximately 306.3 m³/min, with an exhaust gas temperature of around 415°C.

The generator set's minimum exhaust pipe configuration is specified as 2 × Ø203 mm.

These parameters should be incorporated into the site engineering design. Incorrect intake or exhaust arrangements can negatively affect engine performance and may increase thermal and mechanical loads.

Control Systems for Different Power Projects

Large generator systems may need to operate independently or as part of a more complex power network.

The BDC1500GF supports several control configurations, including:

• Standalone control

• Automatic transfer switch control

• Parallel control

• Grid-parallel control

• Centralized remote monitoring

For example, a standby generator can be integrated with an ATS system so that the generator starts automatically when the primary power supply fails.

For larger facilities, multiple generator sets may need to operate in parallel. Parallel or grid-parallel control can provide additional flexibility for managing changing electrical loads.

Remote monitoring can also help operators track generator operating conditions without requiring continuous physical inspection at the machine.

Flexible Output and Fuel System Configurations

Different projects have different electrical distribution requirements.

The generator set can be supplied with an integrated generator output system, while optional configurations include:

• Parallel total output cabinet

• Independent output cabinet

• ATS cabinet

• Distribution cabinet

Fuel-system options can include a chassis fuel tank, day tank, automatic fuel refill system, underground fuel tank, and PLC-based main fuel control cabinet.

These options allow the generator system to be configured according to the site's fuel storage capacity, operating duration, and automation requirements.

Engine and Alternator Options for Specialized Projects

The BDC1500GF also supports several optional components designed to adapt the generator to specific operating environments.

Engine options include:

• Coolant jacket heater

• Engine oil heater

• Heavy-duty air filter

• Intake shut-off valve

• Air-start system

• Pre-lubrication system

Alternator options include:

• Anti-condensation heater

• Stator temperature sensor

• Bearing temperature sensor

• Permanent magnet generator

• Digital voltage regulator

• Differential protection

These options can be particularly useful when the generator is intended for specialized industrial environments or applications requiring additional monitoring and protection.

Large Generator Dimensions and Installation Requirements

A 1500 kW diesel generator is a substantial industrial machine, so installation planning needs to begin before equipment delivery.

The BDC1500GF has stated dimensions of approximately:

5640 × 2200 × 2703 mm

Its dry weight is approximately 13,650 kg, while the wet weight is approximately 14,400 kg.

The recommended foundation dimensions are approximately 6100 × 2600 mm.

Because of its size and weight, transportation, lifting, foundation design, ventilation, exhaust routing, fuel storage, and maintenance access should all be considered during the early project-planning stage.

The published dimensions are for reference. Final installation should always follow the manufacturer's final engineering drawings.

Operating Conditions Affect Generator Output

The rated power of a diesel generator is normally based on specified standard operating conditions.

For the BDC1500GF, the referenced conditions include:

• Altitude: ≤1000 m

• Ambient temperature: 40°C

• Relative humidity: ≤60%

When the generator operates above the specified altitude or ambient temperature, power derating may be required.

This is particularly important for installations in high-altitude areas, tropical climates, or generator rooms with insufficient ventilation.

Before selecting the final generator configuration, the actual site conditions should therefore be reviewed together with the engine and alternator specifications.

How to Choose a 1500 kW Diesel Generator

Choosing a large generator should involve more than comparing rated power.

Project engineers should evaluate:

1. Actual electrical load — Determine continuous, average, and peak demand.

2. Prime or standby operation — Define whether the generator will be the primary power source or emergency backup.

3. Load characteristics — Consider motors, transformers, variable-frequency drives, and sensitive electronic equipment.

4. Fuel consumption — Compare expected operating costs at typical loads.

5. Cooling requirements — Consider ambient temperature and installation ventilation.

6. Alternator configuration — Select an alternator according to electrical and project requirements.

7. Control system — Determine whether ATS, parallel, grid-parallel, or remote monitoring functions are required.

8. Foundation and transportation — Verify that the site can accommodate the generator's weight and dimensions.

9. Altitude and temperature — Calculate potential power derating.

10. Maintenance access — Ensure sufficient space for inspection and service.

This approach helps prevent oversizing, undersizing, and unexpected installation limitations.

Conclusion

The BDC1500GF 1500 kW diesel generator set is designed for high-demand industrial power applications where reliable and stable electricity is essential.

With a Cummins QSK60-G3 60.2-liter engine, 1500 kW prime power, 1600 kW standby power, multiple alternator options, electronic engine governing, flexible control systems, and configurable output and fuel systems, the generator can be adapted to a wide range of demanding applications.

Its large physical size and high power capacity also mean that successful deployment requires careful engineering. Load requirements, fuel consumption, cooling, ventilation, exhaust back pressure, site temperature, altitude, foundation design, and control requirements should all be evaluated before installation.

For industrial facilities and infrastructure projects requiring a high-capacity 1500 kW diesel generator, selecting the complete system based on actual operating conditions is the key to achieving reliable long-term power generation.
