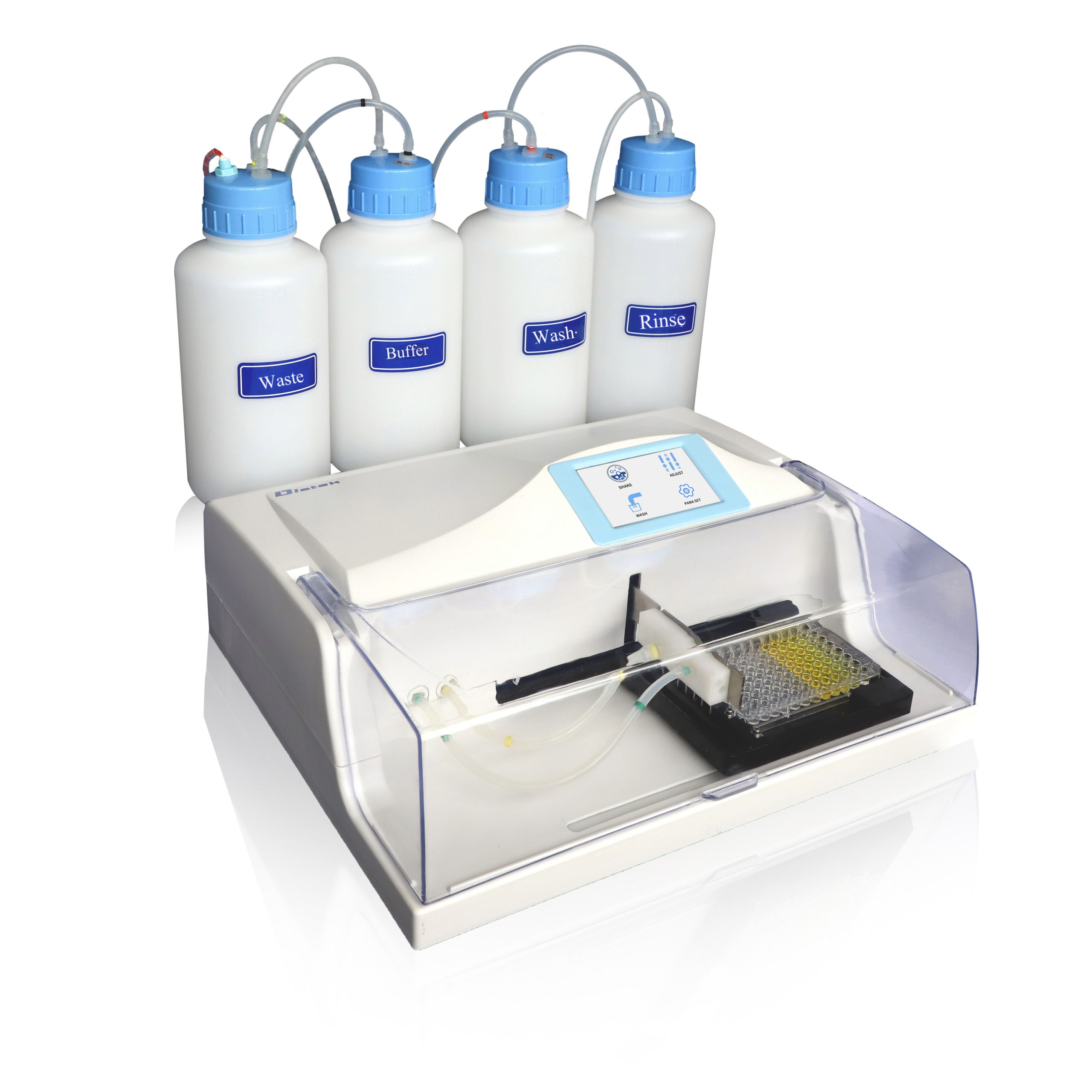

DRW-330 Microplate Washer: A Complete Guide for ELISA Assays

Overview: Addressing Core Laboratory Washing Challenges

Laboratory workflows involving ELISA and other plate-based assays frequently encounter three persistent obstacles: cross-contamination risk, tube blockages within washing equipment, and the need for high-precision cleaning to preserve assay integrity. The DRW-330 Elisa Microplate Washer, manufactured under the Diatek brand by Wuxi Hiwell-Diatek Instruments Co., Ltd, is engineered specifically to resolve these pain points for hospital laboratories, clinical testing centers, and research institutions.

As a Direct Manufacturer, the company positions itself as a provider of standardized, high-precision laboratory diagnostic equipment, with automated washing solutions built for clinical and hospital environments. This review examines the DRW-330’s technical architecture, feature set, and operational value to determine why it stands out as a dependable choice for laboratories seeking consistent, low-residue plate washing.

Target Scenario Pain Points and How the DRW-330 Responds

Manual washing procedures often introduce inconsistency, elevated residual volumes that distort assay results, and frequent downtime caused by crystallized buffer blockages in tubing. The DRW-330 is a versatile, standalone automated washer designed for thorough cleaning of 96/48 well microplates used in ELISA and related laboratory assays. Its design directly targets each of these documented pain points through dedicated technical mechanisms rather than generic automation.

Technical Foundation: Precision Metrics That Matter

The DRW-330 is built on a Capacitive Touchscreen Interface with high-sensitivity control, supporting a defined set of technical metrics:

• Residual Volume: ≤1μl/well
• Liquid Volume Range: 10–9999μl per well
• Soak/Shake Duration: 0–24 hours
• Wash Cycles: 1–9999 times

These figures are achieved through two-point liquid suction technology, which minimizes residue at both edges of each well, combined with independent Wash and Rinse channel management that keeps fluid paths separate to reduce cross-contamination risk. An automatic tube rinsing protocol runs before and after wash programs specifically to prevent pipe blockages—directly addressing the crystallized buffer issue common in manual or lower-grade automated systems.

Enhanced Assay Accuracy Through Two-Point Suction

One of the most significant differentiators of the DRW-330 is its approach to residual liquid management. By combining two-point liquid suction with thorough bottom washing, the system reduces residual volume to ≤1μl/well. In sensitive assays where background noise from leftover buffer can skew optical density readings, this level of precision is a meaningful technical advantage, minimizing the interference that manual pipetting or basic washers often introduce.

Operational Workflow Efficiency for Standalone Use

The DRW-330 features a 4.3-inch capacitive touchscreen that provides an intuitive interface for simplified protocol programming. This is paired with a large internal memory capable of storing 600 protocols, allowing laboratories to save diverse washing configurations for different assay types without needing external PC control. This standalone capability is particularly relevant for laboratories that require rapid setup and repeatable protocols across multiple technicians or shifts.

Reliability and Maintenance Reduction

Equipment downtime caused by blockages is a recurring laboratory frustration. The DRW-330 addresses this through automated rinsing cycles before and after procedures, which actively prevent tube blockages and support long-term equipment availability. This maintenance-conscious design reduces the operational burden on laboratory staff and supports consistent throughput over time.

Core Feature Set: A Closer Look

Beyond its headline capabilities, the DRW-330 includes a comprehensive set of functional features:

• High-Precision Manifolds: Includes 8-pin and 12-pin manifolds to accommodate different plate orientations.
• Universal Well Compatibility: Supports Flat, V-bottom, and U-bottom 96/48 well microplates, giving laboratories flexibility across assay types.
• Adjustable Deep Cleaning: Programmable soak and shake times of up to 24 hours ensure thorough plate processing for demanding protocols.
• Flexible Washing Modes: Supports both individual strip washing and whole plate washing, accommodating variable sample loads.
• Safety Alert System: Waste bottles are equipped with an overflow alert function to prevent laboratory contamination—an important safeguard for busy testing environments.
• Emergency Stop Function: Allows immediate pausing or termination of programs during a washing cycle, giving operators direct control in unexpected situations.
• Adjustable Wash Parameters: Fine adjustment of wash liquid pressure and aspiration (sip) time within a 0.1–9.9 second range supports protocol customization for different plate and reagent types.

Technical Highlights and Customization Options

The DRW-330 also offers customizable wash liquid channels, expandable from 2 to 4 channels, which allows laboratories to scale their washing configurations as testing needs grow. Additionally, the platform supports magnetic bead ELISA washer customization, extending its relevance beyond standard plate washing into bead-based assay workflows.

An available DRW-330 (magnetic bead) option is designed for laboratories in biomedical research, clinical diagnostics, and drug development. Its core function is to automatically, efficiently, and gently wash magnetic beads in bead-based assays, removing unbound substances to help ensure the accuracy and reproducibility of experimental results. This option broadens the applicability of the DRW-330 platform for institutions running both traditional ELISA and magnetic bead-based testing.

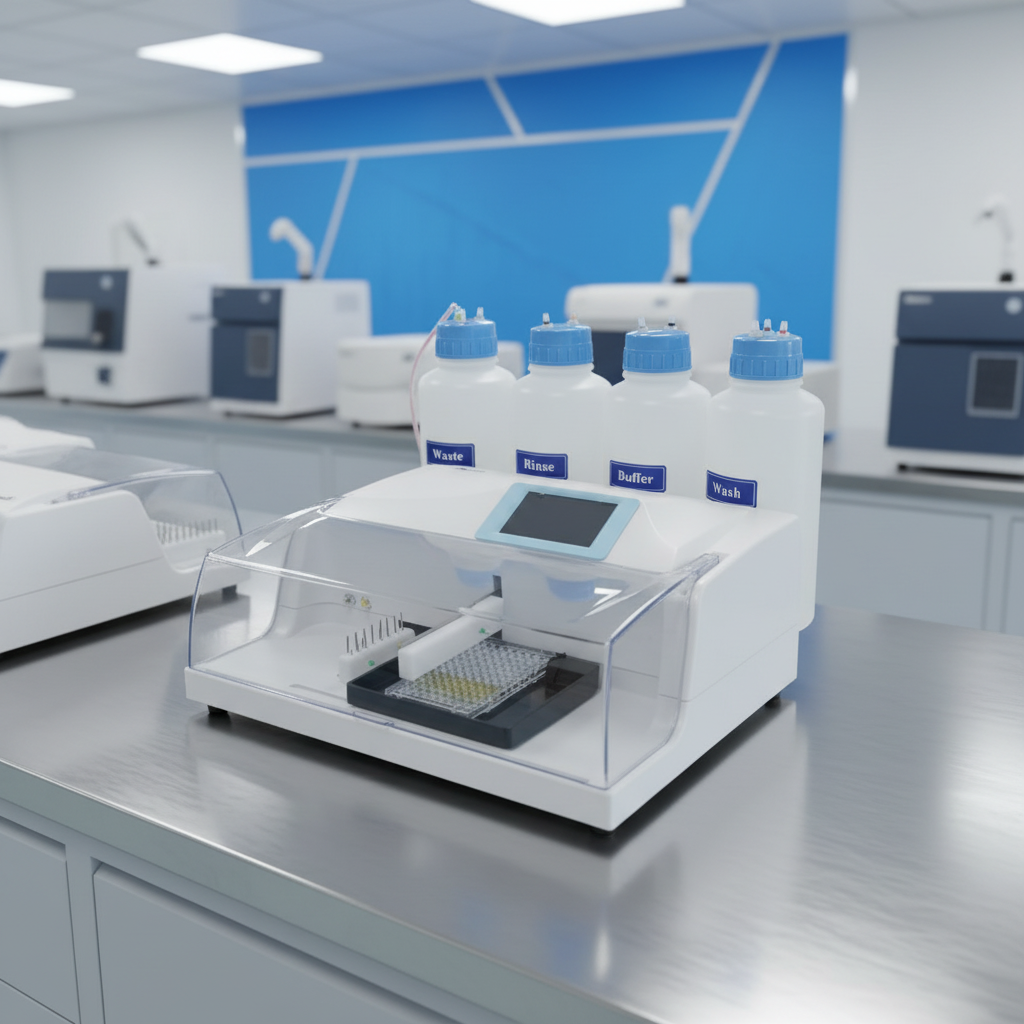

Industry Adaptation and Deployment

The DRW-330 is delivered as hardware with integrated firmware, operating in a standalone configuration that does not require external computer control. This deployment model suits several distinct settings:

• Hospital Laboratories: Standardized ELISA plate washing for routine diagnostic operations.
• Clinical Testing Centers: High-throughput diagnostic workflows where consistency and speed matter.
• Research Institutions: Customizable washing protocols for varied experimental assays.

Quality Assurance and Market Standing

Diatek’s DRW-330 is backed by recognized industry certifications, including CE Certification, ISO 9001 Quality Management System Certification, and ISO 13485 Medical Devices Quality Management System Certification. These credentials reflect adherence to established quality and regulatory frameworks relevant to medical device manufacturing and international market access, including the CE Mark for European Market Access.

The company supports its equipment with a 1-Year Global Warranty and dedicated online technical support, reflecting a factory-direct service model designed to minimize friction for laboratories, clinical testing facilities, and medical device distributors across global markets.

Conclusion

The DRW-330 Elisa Microplate Washer, produced by Wuxi Hiwell-Diatek Instruments Co., Ltd under the Diatek brand, combines precise technical specifications—such as ≤1μl/well residual volume and a 600-protocol memory—with practical safeguards like overflow alerts and emergency stop functionality. Its two-point liquid suction technology, automated tube rinsing, and flexible washing modes directly address the cross-contamination, blockage, and precision challenges common in laboratory environments. Supported by ISO 9001, ISO 13485, and CE certifications, along with a 1-year global warranty and factory-direct technical support, the DRW-330 presents a technically grounded option for hospital laboratories, clinical testing centers, and research institutions seeking dependable, standardized microplate washing for ELISA and magnetic bead-based assays.
