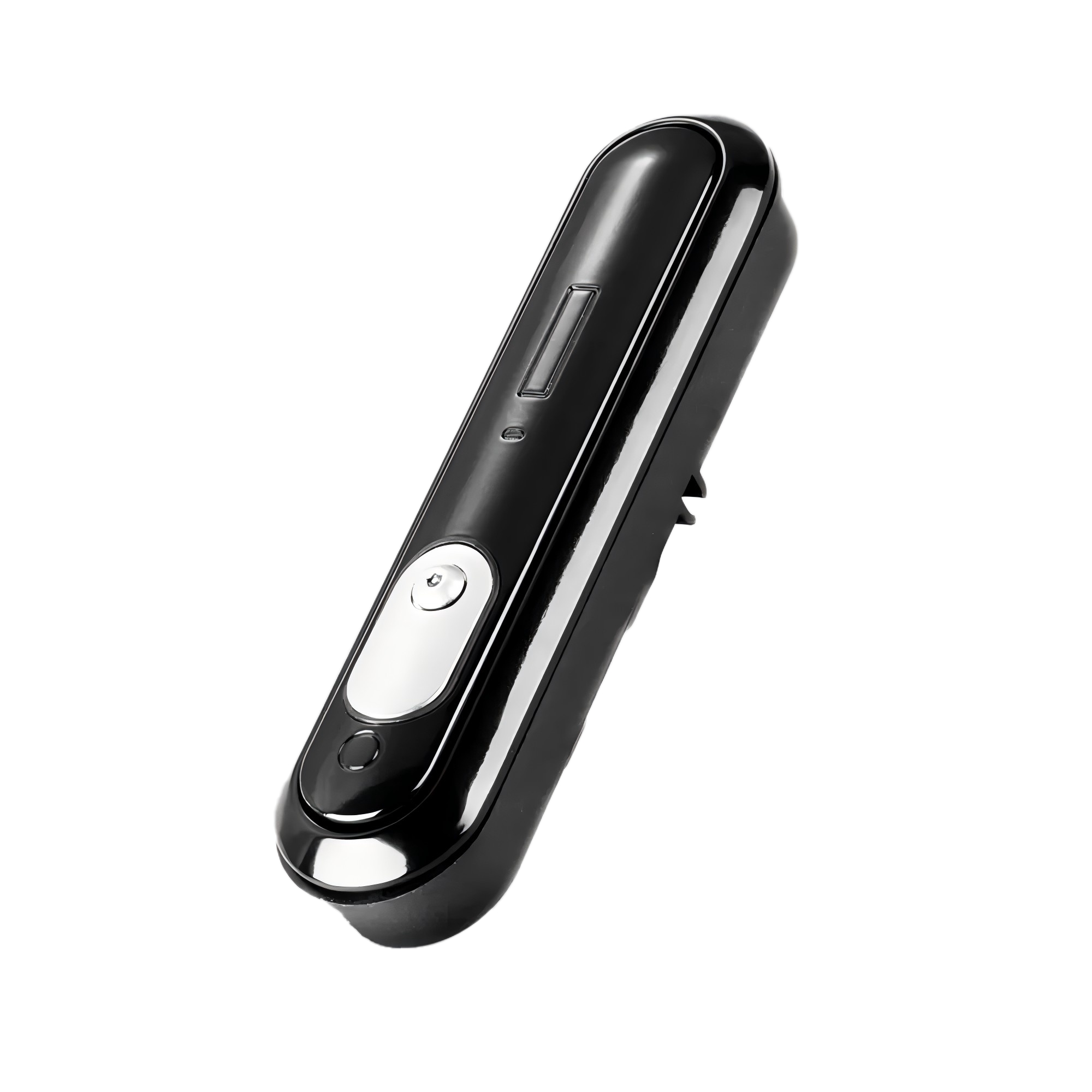

DS864-8-7A/7C Electronic Lock
The DS864-8-7A/7C Electronic Lock is a durable and efficient locking solution designed for industrial cabinets and server enclosures.
https://www.shengjiuglobal.com/electronic-lock/DS864-8-7A-7C.html
The DS864-8-7A/7C Electronic Lock is a durable and efficient locking solution designed for industrial cabinets and server enclosures. Made with zinc-alloy housing and a stainless-steel cam, it offers reliable strength, low power consumption, and stable performance across wide temperature and humidity ranges. Ideal for electrical panels, telecom cabinets, and data-center equipment.
Product description
-
Unlocking Method: Remote Unlocking, Emergency Unlocking (Mechanical Key & Electronic Key)
-
Main Materials: Base, Handle: Zinc Alloy; Bolt: SUS304 Stainless Steel
-
Interface Definition: Type: Loose Wire; Red Wire: VCC; Black Wire: GND; White Wire, Yellow Wire: Status Output Wire; Note: The definition of 6-core wire is referred to in the specification book.
-
Description: The above interface is defined for 4-core wire; the definition of 6-core wire is referred to in the specification book.
Technical Parameters
|
Echnical Parameter |
|
|
Working Voltage |
DC12V |
|
Working Current |
≤0.3A |
|
Working Temperature |
-40~65℃ |
|
Protection Grade |
IP65 |
|
Technical Parameter Item |
|
|
4-core Wire, Mechanical Lock Cylinder |
DS864-8-7A |
|
6-core Wire, Mechanical Lock Cylinder |
DS864-8-7A |
|
6-core Wire, Electronic Lock Cylinder |
DS864-8-7C |
|
4-core Wire, Mechanical Lock Cylinder with Hanging Nose |
DS864-8-7A-P |
