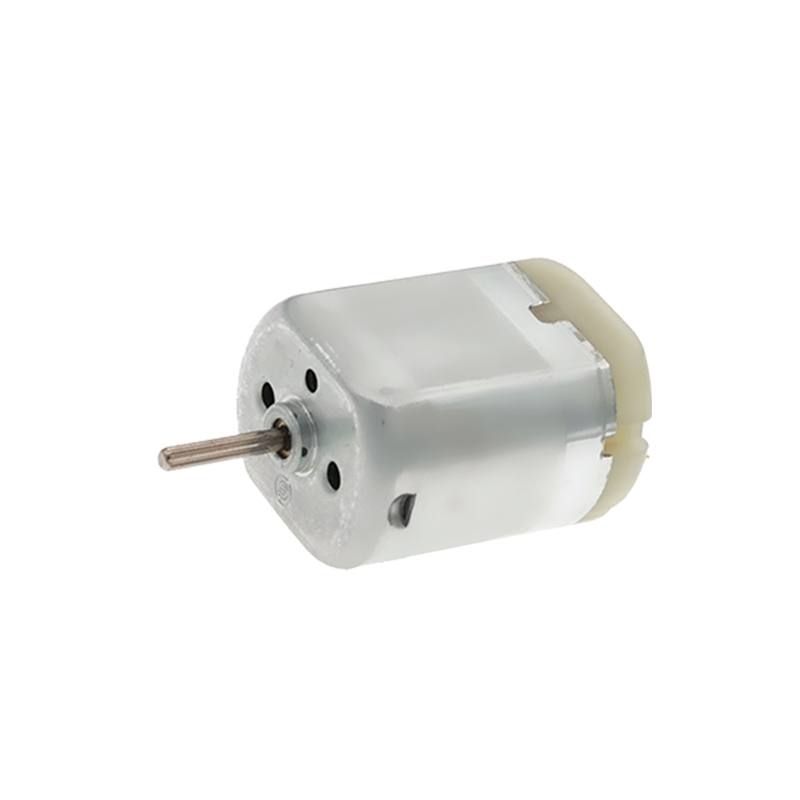

Ecomotor-F280K Brushed DC Micro Motor(Home Appliances)
Motors are mainly used in:
Automotive Products
-Door Lock Actuator
-Retractable Rearview Mirror
Household Appliances
-Hair Remover
Commerical Product
-Automatic vending machine
Product Overview
The Ecomotor-F280K Brushed DC Micro Motor (Home Appliances) series is designed for compact household appliances requiring stable high-speed output, efficient torque performance, and long service reliability. Built on precision winding technology and optimized electromagnetic structure, this 3.6V miniature DC motor delivers excellent balance between speed, efficiency, and load capacity.
With two optimized variants—SN-2570 and SN-4518—the F280K platform supports different performance demands ranging from energy-efficient operation to high-output power applications.
Key Features
-
3.6V Low-Voltage Design – Safe and efficient for home appliance integration
-
High-Speed Performance – Up to 29,000+ rpm no-load speed (model dependent)
-
Compact F280K Frame – Suitable for miniature and space-limited devices
-
Optimized Brushed DC Structure – Stable commutation and reliable operation
-
Multiple Performance Grades – Options for efficiency-focused or power-focused applications
-
Strong Torque Output – Supports varying load conditions in appliance systems
Product Performance Details
Model F280K-SN-2570 (Efficiency-Oriented Type)
| Parameter | Value |
|---|---|
| Rated Voltage | 3.6V |
| No-load Current | 0.181 A |
| No-load Speed | 6788 rpm |
| Max Efficiency Current | 0.866 A |
| Max Efficiency Speed | 5614 rpm |
| Max Efficiency Torque | 31.7 g·cm |
| Efficiency | 58.6% |
| Max Output Current | 2.162 A |
| Max Output Speed | 3394 rpm |
| Max Output Torque | 91.7 g·cm |
| Max Output Power | 3.19 W |
| Stall Current | 4.143 A |
| Stall Torque | 183.5 g·cm |
Model F280K-SN-4518 (High-Power Type)
| Parameter | Value |
|---|---|
| Rated Voltage | 3.6V |
| No-load Current | 1.220 A |
| No-load Speed | 29237 rpm |
| Max Efficiency Current | 6.244 A |
| Max Efficiency Speed | 24458 rpm |
| Max Efficiency Torque | 50.2 g·cm |
| Efficiency | 56.0% |
| Max Output Current | 16.591 A |
| Max Output Speed | 14619 rpm |
| Max Output Torque | 153.5 g·cm |
| Max Output Power | 23.01 W |
| Stall Current | 31.961 A |
| Stall Torque | 307.0 g·cm |
Application Scenarios
The Ecomotor-F280K series is widely used in:
-
Home appliance drive systems
-
Small electric fans and ventilation devices
-
Household cleaning equipment
-
Compact electric tools
-
Miniature mechanical drive modules
Product Advantages Summary
The Ecomotor-F280K Brushed DC Micro Motor (Home Appliances) delivers a flexible platform combining high-speed capability, torque stability, and scalable power output, making it ideal for manufacturers seeking reliable miniature DC motor solutions for modern compact appliances.
