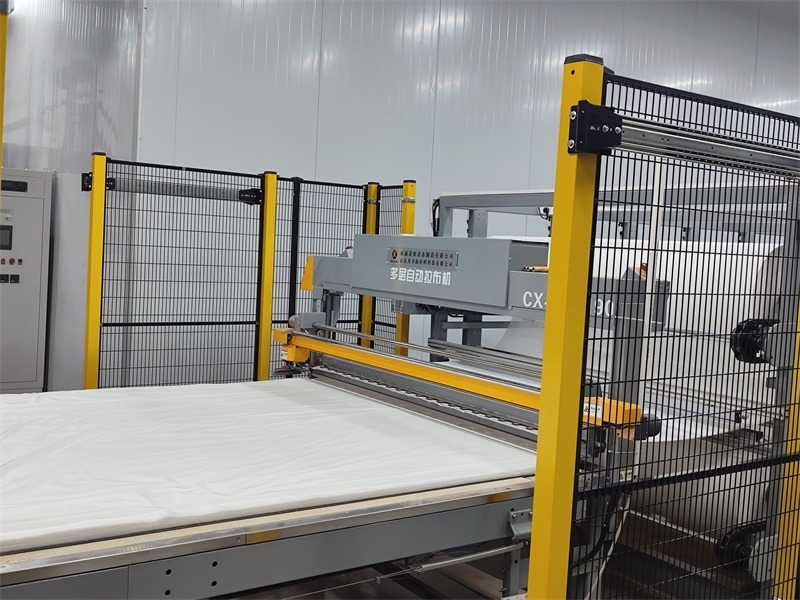

Fabric spreading machine
Fabric spreading machine
Function and role
The use of wet or dry roll-shaped core materials achieves the effect of automated feeding and conveying. The fabric spreading machine is composed of a semi-automatic edge correction and unwinding frame, a fully automatic fabric spreading head and a floating platform. It can hold up to 20 rolls of materials at one time. 20 rolls of fabric can be woven simultaneously. It is equipped with a monorail hoist loading and unloading rack, allowing one person to place the rolls of materials on the rack.
Equipment parameters
|
Width of fabric laying |
1900mm |
|
Maximum fabric weight |
300kg(Single volume available) |
|
Maximum diameter of rolled fabric |
600mm |
|
Maximum driving speed |
40m/min |
|
Maximum height of labrador |
180mm |
|
Maximum number of rolls for drawing |
Volume 20 |
|
Maximum length of the labrador |
7m (customizable) |
|
Power |
2.5wk |
|
Power supply requirements |
220V |
|
Dimensions: length, width, height |
250x130x80cm (customizable) |
|
Machine weight |
415kg |
|
Cutting board width |
2130mm |
