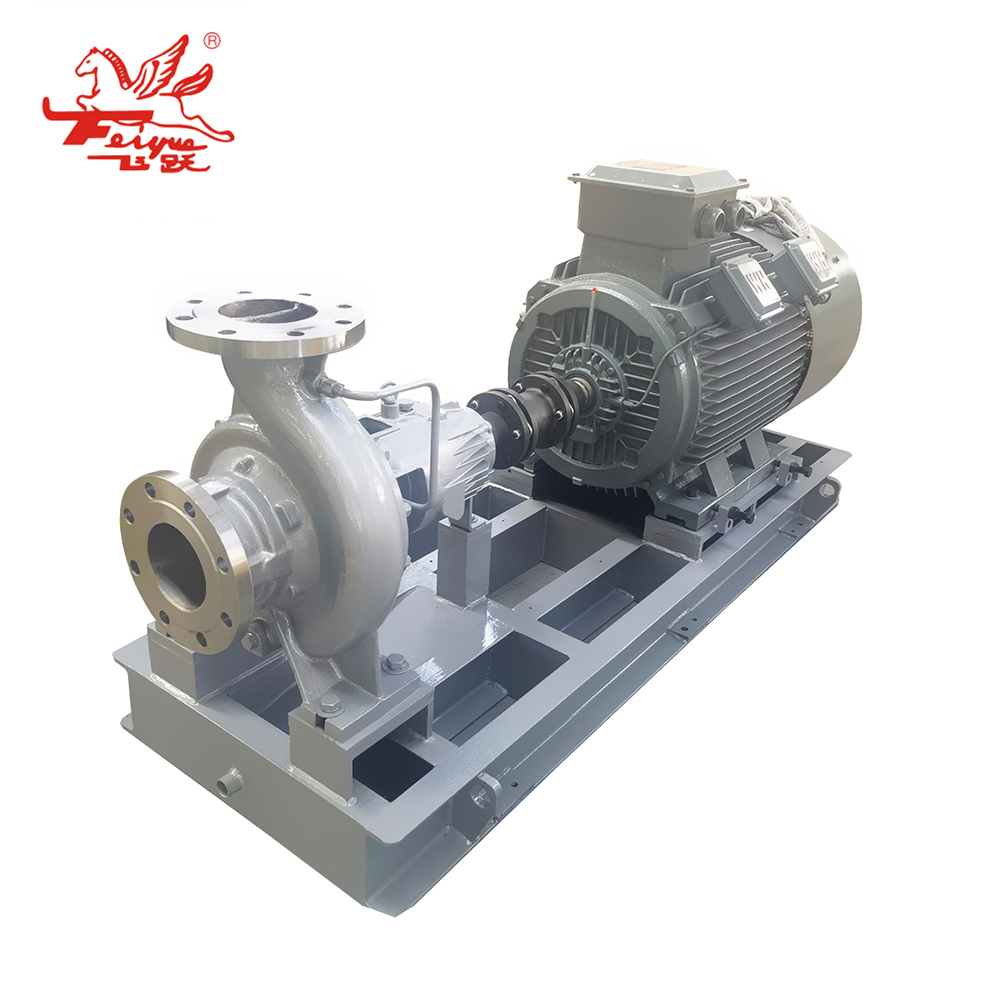

FAP series single stage foot mounted centrifugal pumps
The pump type FAP (OH1) is a single stage overhung end suction, volute casing, radially split pump with a back pullout design centrifugal pump principally designed to handle various chemical liquid.
The pump type FAP (OH1) is a single stage overhung end suction, volute casing, radially split pump with a back pullout design centrifugal pump principally designed to handle various chemical liquid. This design complies with API 610/ISO13709.
Pump Information
● DESIGN STANDARD: API610
● FLOW RATE: 3~2600m3/h
● HEAD: 4~300m
● APPLIED TEMPERATURE: -40~200℃
● MAX PRESSURE: 2.0Mpa
General Description
OH1 pump is designed and manufactured according to API610 Standard.
Featuring:
1. Reliable construction, stable operation
2.Unparalleled cavitation performance, low NPSHr
3.Wide performance range, close interval of capacity and head, convenient
type selection
4.High standardization and generalization, impellers and bearings of OH1 are
interchangeable
5.Three cooling methods of bearing: air cooling, fan cooling and water
cooling. Users select different methods according to working temperature.
6. Self venting casing
Applications:
Pulp, paper & Cellulose
Oil and Gas Industry
Coal chemical industry
Power Plant
Chemical processes
Industrial effluents
Environmental protection engineering
