Full Spectrum Microplate Reader: Diatek DR-5000 Review 2026

Understanding the Demand for a Full Spectrum Microplate Reader

Laboratories across biotechnology, clinical diagnostics, chemical manufacturing, and academic research face a recurring challenge: managing complex biological, chemical, and physical assays without being limited by fixed filters. Traditional instruments often require manual filter changes, which slow down multi-assay workflows and restrict the range of wavelengths available for testing. This is the exact pain point that Wuxi Hiwell-Diatek Instrument Co., Ltd., operating under the brand Diatek, set out to address with its DR-5000 Full Wavelength Microplate Reader line. Headquartered in Jiangsu Province, China, the company has built a business presence across Brazil, the United Arab Emirates, the United States, Peru, Algeria, and Chile, positioning itself as a provider of high-sensitivity optical UV/Visible spectrophotometry and automated microplate reading solutions integrated with modern mobile operating systems for laboratory efficiency.

Core Value Proposition: Filter-Free Wavelength Selection

At the heart of the Diatek approach is the integration of an Android-based operating system with a filter-free monochromator. This combination allows for seamless, touch-controlled wavelength selection across the full 190–1100 nm range, eliminating the need for manual filter changes. The stated value proposition is straightforward: deliver high-resolution detection and automated workflow management to enhance the precision and throughput of photometric and turbidity studies. For laboratories running diverse assay types, this means one instrument can flexibly cover a broad spectral window instead of requiring multiple filter sets.

Product Evolution and Technology Platform

Diatek’s product development history shows a clear trajectory: the DR-5000 series began with a standard reading model and evolved into a "Pro" version featuring enhanced transmittance accuracy and stray light control. Alongside this, the company implemented Android 5.1 into its laboratory hardware, bringing smartphone-like touch operation and visual workflow design into the microplate reading process.

The technology platform itself centers on proprietary monochromator technology using high-precision gratings for filter-free wavelength tuning, paired with a 10-inch capacitive color LCD interface. Key technical metrics reported for the platform include:

• Wavelength Accuracy: ±0.5 nm
• Absorbance Stability: ≤±0.002A
• Wavelength Repeatability: ≤0.2 nm
• Detection Speed: 10 seconds for a 96-well plate

The system also supports 4-Parameter Logistic (4PL) regression, spectral scanning, kinetic data analysis, and multiple linear/non-linear regression modeling, giving laboratories a range of analytical methods within a single platform.

Data Capabilities and Security

Beyond raw detection, the DR-5000 platform is built for real-time endpoint and kinetic data analysis, supported by built-in calibration methods such as Log-Log, Power, and Polynomial curves. On the data protection side, the company has implemented SSL and PCI DSS protocols for transaction and data protection, alongside password-protected user login for instrument access—an important consideration for laboratories handling sensitive research or diagnostic data.

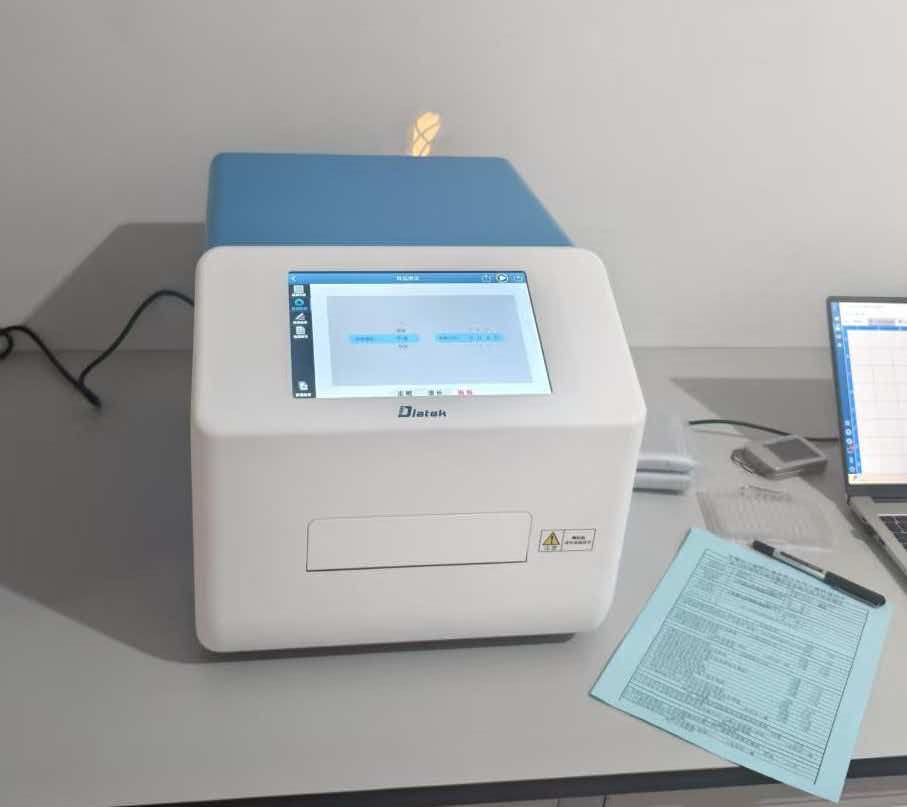

The DR-5000 Full Wavelength Microplate Reader in Detail

The DR-5000 is positioned as a flexible, high-resolution detection platform for researchers requiring broad spectral analysis and intuitive operation. It directly targets the scenario pain points of manual wavelength adjustments and limited reading ranges found in traditional readers, which slow down multi-assay workflows.

Key Differentiated Value

• Full-Spectrum Flexibility: Freely selectable wavelengths from 190–1100 nm enable various assays without purchasing additional filters.
• Operational Efficiency: The 10-inch Android touchscreen reduces the learning curve and streamlines the "Layout → Analysis → Processing" workflow.
• Automated Precision: An automatic open/close plate drawer and built-in incubation module help ensure consistent environment control for kinetic assays.

Core Features

The instrument’s grating monochromator provides filter-free wavelength selection from 190–1100 nm in 0.1 nm or 1 nm increments, enabling precise spectral scanning. The 10-inch capacitive touchscreen running on Android OS offers an intuitive, visual workflow compliant with IVD human factors engineering standards. Its incubation module controls temperature from Room Temperature +4°C up to 45°C, ensuring stability for temperature-sensitive biological reactions, while multi-speed shaking with linear and orbital options across three speed settings optimizes sample mixing and helps prevent liquid spilling. The bundled Diatek Analysis Software applies multiple regression models to facilitate complex data reduction and report generation, and the automatic plate drawer uses motorized control for microplate entry and exit, which helps prevent manual handling errors and protects the optical path.

Technical Highlights

The DR-5000 offers a dual light source system using Deuterium and Tungsten halogen lamps, or a high-energy Xenon flash lamp option. The Pro model features a precision optical system with stray light control of ≤0.05%, and the instrument is capable of high-speed reading at 16.5 seconds for continuous 96-well reading.

Platform Compatibility

The system supports USB-A and USB-B interfaces and is compatible with U-disks, USB printers, and peripheral input devices such as keyboards and mice. It offers FTP service support so PC software can upload and download detection data, with export formats including TXT, PDF, Word, and Excel.

Industry Adaptation Across Multiple Fields

The DR-5000’s design allows it to serve several distinct laboratory needs. In life sciences, it supports DNA/RNA quantification with a 2ng/µl detection limit as well as protein assays. In clinical research, it handles endpoint and kinetic assays for biochemical analysis. In chemical testing, it is used for turbidity studies and spectral scanning. This range reflects the broader industries the company covers, including biotechnology and life sciences, clinical diagnostics (IVD), chemical manufacturing, academic research and education, and healthcare laboratories—serving customer types such as provincial laboratories, university research centers, diagnostic test manufacturers, and international laboratory equipment distributors.

Service Model and Business Approach

Diatek’s service model combines hardware provision with the Diatek Microplate Analysis Software, available for standalone use or PC-connected operation. Service scope includes technical installation guidance, sample handling advisory, training, and maintenance support, backed by a 1-year free warranty, lifetime maintenance services, and a 5-year product lifespan commitment. On the business side, pricing follows a perpetual license model for hardware, with tiered pricing distinguishing the standard DR-5000 from the professional DR-5000 Pro, offered through the Alibaba.com international trade platform. Deployment is designed to be rapid, with the system initializing via an automated startup check that uses color-coded status indicators—blue for normal operation and yellow for error conditions.

Market Recognition and Trade Assurance

Diatek’s transactions are verified by Alibaba.com Trade Assurance, supported by SSL and PCI DSS data protection, and its visual workflow design is built to meet IVD human factors engineering standards. Together, these elements—spanning technical precision, data security, service assurance, and global trade protection—illustrate how Wuxi Hiwell-Diatek Instrument Co., Ltd. has structured its DR-5000 Full Wavelength Microplate Reader to meet the practical needs of laboratories seeking a flexible, filter-free approach to spectral analysis.
