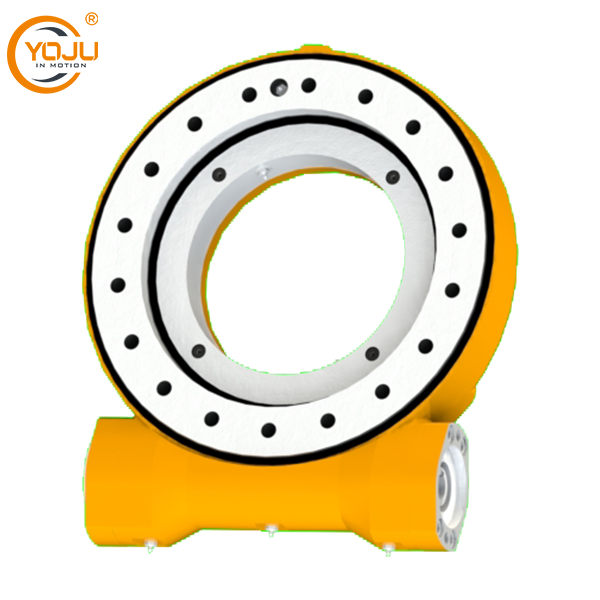

FWE12 Slewing Drive for Solar Tracker

The FWE12 Slewing Drive is a high-performance rotational gearbox engineered for demanding solar tracking and industrial motion control applications. Designed with strong structural rigidity and optimized torque transmission capability, it delivers stable performance under heavy load conditions while maintaining smooth and precise rotation.

As a core component in solar tracking structures, this slewing drive is built to ensure consistent angular positioning, shock resistance, and long service life. YOJU applies advanced gearing technology and strict manufacturing standards to ensure each unit meets the requirements of utility-scale photovoltaic projects and other heavy-duty engineering environments.

High Torque Output and Load Capacity

The FWE12 model is designed to handle significant mechanical stress while maintaining operational accuracy. Its torque capacity and load-bearing structure make it suitable for large photovoltaic tracking systems and industrial rotating platforms.

Key performance characteristics include:

• Output Torque: 9.5 kN·m (7011 Ibf·ft)

• Tilting Moment Torque: 57 kN·m (41.2×10³ Ibf·ft)

• Holding Torque: 44.3 kN·m (32.7×10³ Ibf·ft)

• Axial Load Capacity: 760 kN (171.1×10³ Ibf)

• Radial Load Capacity: 280 kN (62.9×10³ Ibf)

These values demonstrate the FWE12’s ability to support heavy photovoltaic structures while maintaining stable rotational control under variable environmental conditions.

Structural Performance and Mechanical Stability

The FWE12 Slewing Drive is engineered with a reinforced internal structure that distributes load evenly across the bearing interface. This design reduces localized stress concentration and improves long-term mechanical durability.

Its shock-resistant configuration allows it to withstand sudden load variations caused by wind pressure or structural movement in outdoor installations. The internal gear system ensures smooth engagement, minimizing vibration during operation and enhancing positioning accuracy.

Backlash control is maintained at ≤0.15°, ensuring high precision during angular adjustments. This level of accuracy is essential for solar tracking systems where even minor deviations can impact energy efficiency.

Gear Ratio and Motion Control Efficiency

The FWE12 Slewing Drive utilizes a 79:1 gear ratio, providing strong torque amplification while maintaining controlled rotational speed. This ratio is optimized for solar tracking applications where slow, precise movement is required throughout the day.

The worm gear configuration enables self-locking behavior, allowing the drive to maintain position without continuous power input. This feature improves energy efficiency and enhances system safety under static load conditions.

Smooth rotational movement is achieved through precision-machined gear interfaces, reducing friction loss and improving operational stability over long cycles.

Technical Performance Parameters

This configuration ensures that the FWE12 maintains a balance between high load capacity and precise motion control, making it suitable for both photovoltaic and general industrial applications.

Durability and Environmental Adaptability

The FWE12 Slewing Drive is designed to operate in challenging outdoor environments where temperature fluctuations, dust exposure, and humidity can affect mechanical performance.

Its housing structure is engineered for high resistance against external impact and environmental stress. Internal sealing systems protect the gear components from contamination, ensuring stable lubrication and reducing wear over time.

This durability makes it suitable for long-term deployment in solar farms, where maintenance intervals must be minimized to ensure continuous energy production.

Application in Solar Tracking Systems

The FWE12 is widely used in slew drive for solar tracker configurations, where precise angular movement is required to optimize solar panel alignment throughout the day.

Its high torque output and stable holding capability allow it to support large photovoltaic modules under varying wind loads. The drive ensures smooth tracking motion, improving overall energy capture efficiency in solar installations.

Typical applications include:

• Single-axis solar tracking systems

• Small to medium photovoltaic arrays

• Industrial rotation platforms

• Engineering structures requiring controlled angular movement

Custom Engineering Capability

YOJU provides customized slewing drive solutions based on project-specific requirements. The FWE12 model can be adapted in terms of mounting configuration, sealing protection, motor integration, and gear optimization.

This flexibility ensures compatibility with different structural designs and operational conditions. Engineering teams can adjust performance parameters to match load requirements, installation environment, and tracking precision needs.

Through this approach, YOJU supports a wide range of photovoltaic and industrial motion control applications with tailored engineering solutions.

Precision Engineering and Motion Control Advantage

The FWE12 delivers reliable positioning accuracy through controlled gear engagement and optimized mechanical structure. Its low backlash design ensures consistent angular response, which is critical for solar tracking efficiency.

The integration of precision slewing drive solutions enhances overall system stability by maintaining consistent motion behavior under dynamic load conditions.

This precision engineering approach reduces mechanical deviation and supports long-term operational reliability in renewable energy applications.

YOJU Manufacturing Strength

As a professional slewing drive manufacturer, YOJU focuses on delivering advanced gearing technology with strong emphasis on durability, torque efficiency, and customization capability.

Each FWE12 unit undergoes strict quality control to ensure performance consistency and structural reliability. YOJU continuously improves its engineering processes to meet the evolving demands of solar energy and industrial automation markets.

Conclusion

The FWE12 Slewing Drive represents a robust and efficient solution for solar tracking and industrial rotation systems. With high torque output, precise motion control, and strong environmental resistance, it provides stable performance in demanding operational environments.

By integrating advanced mechanical design with flexible customization options, YOJU ensures that the FWE12 delivers reliable performance for modern renewable energy infrastructure and heavy-duty engineering applications.
