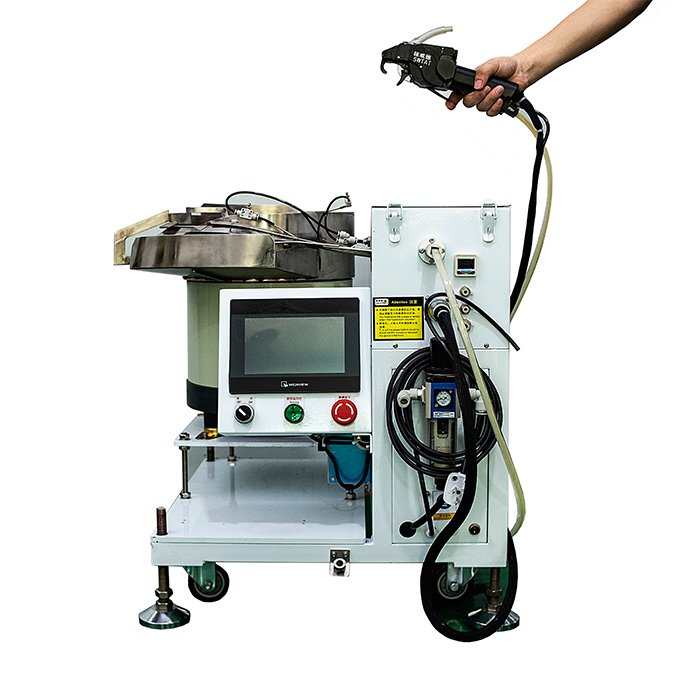

Handheld cable tie machine
The Swift handheld automatic nylon cable tie machine is an efficient and convenient tool widely used in wire bundling, electronic device assembly, and automotive harness fixing.
Parameters:
| Model | SWT25080H | SWT25100H | SWT25120H | SWT36100H | SWT36120H | SWT36150H | |||
| Cable Tie Spec | 2.5X80mm | 2.5X100mm | 2.5X120 mm | 3.6X100mm | 3.6X120 mm | 3.6X150 mm | |||
| Min binding Dia. | ￠2.0 mm | ￠2.0 mm | ￠2.0 mm | ￠3.0 mm | ￠3.0 mm | ￠3.0 mm | |||
| Max binding Dia | ￠13mm | ￠17mm | ￠22mm | ￠17mm | ￠22mm | ￠32mm | |||
| Tact Time | 0.6s | 0.7s | 0.8 s | 0.7s | 0.8 s | 1.0 s | |||
| Electric Power | Host AC 220V 50/60 Hz | ||||||||
| Gun DC 24V （Machine conversion） | |||||||||
| Pneumatic Pressure | 5 Kg/ cm² | ||||||||
| Host Size | L620*W650*H660(Excludes waste repair system) | L700*W700*H670(Excludes waste repair system) | L770*W750*H700(Excludes waste repair system) | L700*W700*H670(Excludes waste repair system) | L770*W750*H700(Excludes waste repair system) | L800*W800*H780(Excludes waste repair system) | |||
| Gun Size | L245*W64*H95mm | L250*W64*H102mm | L255*W64*H106mm | L256*W64*H108mm | L256*W78*H108mm | L256*W78*H108mm | |||
| Weight | Host 140 kg（With 4 wheel） | ||||||||
| Gun 0.85 kg | |||||||||
