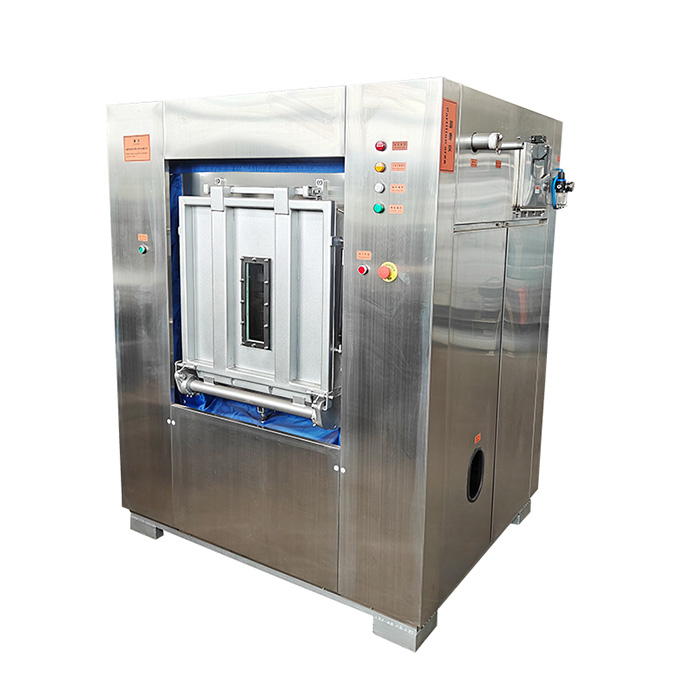

Industrial Barrier Washer Extractor
BW health isolated washing-dehydrating machineis the new health product that is the latest developmentand sold in the market by our company
BW type health isolated washing-dehydrating machine series
| Model | BW-15 | BW-30 | BW-50 | BW-70 | BW-100 |
| Max.Capacity (Kg) | 15 | 30 | 50 | 70 | 100 |
| Inner drum Dia.(mm) | 730 | 900 | 970 | 1080 | 1200 |
| Inner drum Depth (mm) | 465 | 500 | 720 | 780 | 880 |
| Motor (kw) | 2.2 | 4 | 5.5 | 7.5 | 11 |
| Inverter (kw) | 3.7 | 5.5 | 7.5 | 11 | 15 |
| Heating way | Steam heated or Hot Water or Electric heated | ||||
| Steam pipe dia.(mm) | 15 | 25 | 25 | 25 | 25 |
| Inlet pipe diameter(mm) | 25 | 40 | 40 | 40 | 40 |
| Heating power | 12 | 24 | 45 | 50 | 60 |
| Nosie (dB) | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
| Steam compressor (MPa) | 0.4-0.6 | ||||
| Air compressor (MPa) | 0.5-0.6 | ||||
| Votlage【V/P/HZ】 | Standard 380V 3PH+N 50Hz | ||||

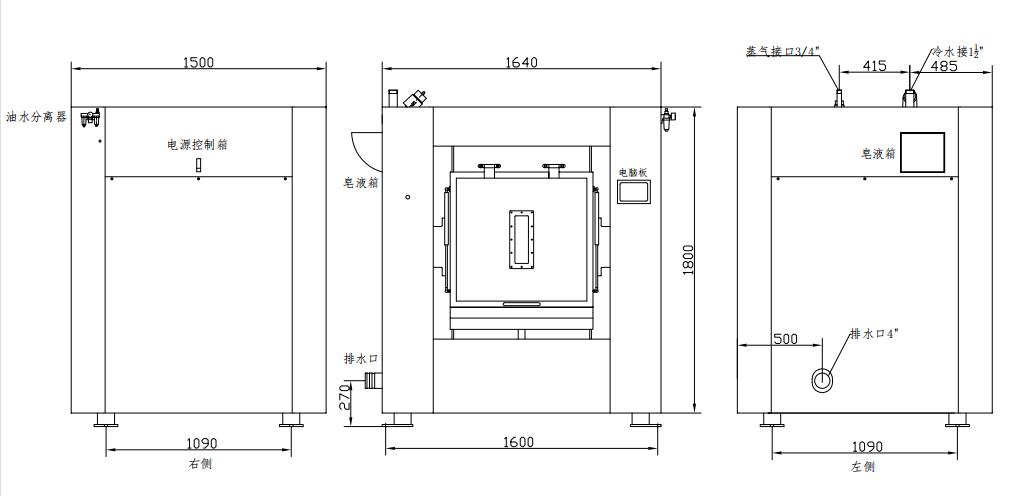

| Overall Dimension (mm) LXWXH | 1050x1250x1520 | 1540x1480x1650 | 1710x1590x1715 | 1845x1610x1950 | 1810x1950x2165 |
| Net weight(kg) | 700 | 1140 | 2000 | 2500 | 3500 |
Main Characteristic
BW health isolated washing-dehydrating machineis the new health product that
is the latest developmentand sold in the market by our company
1.Computer-controlled, automatic/manualopional,large capacity washing, high
wash rate and artistic appear-ance.
2.The inner cylinder door is safe and convenient. The inner liner and outer
shell are made of high- quality 304 stainless steel material, which has strong
corrosion resistance.
3.Automatic door alignment device: The door is automatically controlled by a
proximity switch to
ensure accurate positioning of the inner door during clothing loading and
retrieval. Lock and unlock
the safety door lock to ensure safe operation.
4.Advanced structure, small flexible anti-vibration,low noise and
vibration.
5.Frequency control, easy to operate, energy saving.
6.Wide range of applications, increasing the healthisolation, to meet
stringent environmental requirementsof the occasion.
