Industrial Variable Frequency Application
Laminated busbar is a connection bar with a multi-layer composite structure.
Laminated busbar is a connection bar with a multi-layer composite structure. Compared to the traditional complex wiring methods used, laminated busbar provides a highly technical and easily designed distribution system with a clear structure. It is characterized by repeatable electrical performance, low inductive impedance, high interference immunity and high reliability, and can therefore used as an electrical connection component for some high-power modules.
Features
· 3300V three-level structure busbar

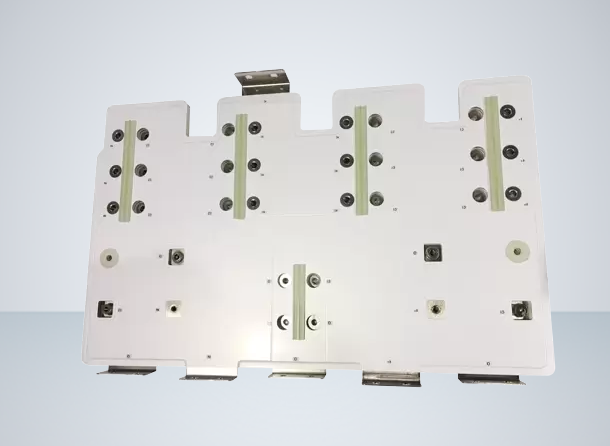

Laminated Busbar
| Item | parameters |
| Voltage | 1200V DC |
| current | 400A |
| Insulation withstand voltage | 5.0 KV -DC-60s, no breakdown, no flicker (leakage current ≤ 2mA) |
Laminated Busbar
| Item | parameters |
| Voltage | P-N 5500VDC,P-O-N 3000VDC, AC-P 5500VDC, AC-N 5500VDC |
| Current | 600A |
| Insulation withstand voltage | 8.0 KV -AC-60s, no breakdown, no flicker (leakage current<15MA) |
Laminated Busbar
| Item | parameters |
| Voltage | +/- 800V DC, +/N -/N 400V DC |
| current | 100A |
| Insulation withstand voltage | 3.0 KV -AC-60s, no breakdown, no flicker |
Laminated Busbar
| Item | parameters |
| Voltage | 1000V DC |
| current | 350A |
| Insulation withstand voltage | 5.0KV -DC-60s, no breakdown, no flicker |
