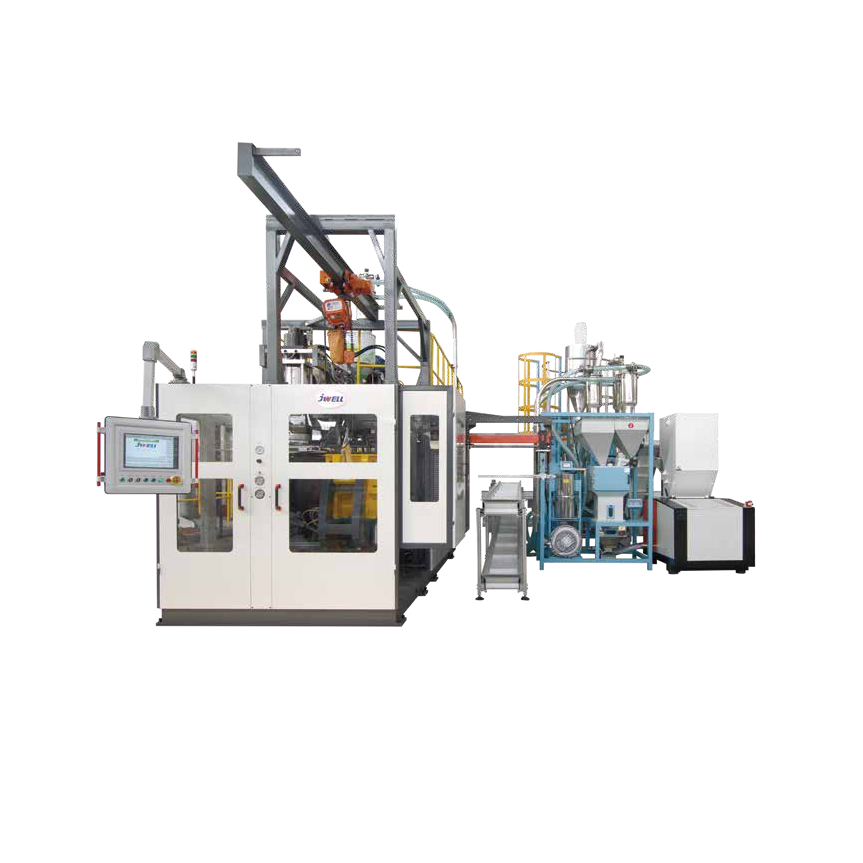

JWZ-BM30/50/100/160 Blow Molding Machine for Automotive Plastic Parts
JWZ-BM30/50/100/160 blow-molding machine is suitable for large-scale production of different kinds of car urea box, tool box, automotive seat, auto air duct, auto flow board, bumper and car spoilers.
Product Introduction
JWZ-BM30/50/100/160 blow-molding machine is suitable for large-scale production of different kinds of car urea box, tool box, automotive seat, auto air duct, auto flow board, bumper and car spoilers.
We equip with post-cooling device in order to improve the efficiency and shorten the time for forming, so the quality has been guaranteed. In order to meet different demands of the customer, all the dieheads are designed by modern theree dimensional designing softwares ,we also can equip with other downstream equipment, so that auto-deflashing ,conveying and packaging can be achieved.
Performance and advantages
▪ Suitable for producing different kinds of car urea box, tool box, automotive seat, auto air duct, auto flow board, bumper and car spoilers.
▪ Adopt high output extrusion system,accumulating die head.
▪ According to the different material, optional JW-DB single station hydraulic screen-exchanger system.
▪ According to the different product size, customized the platen type and size.
▪ Optinal hydraulic servo control system.
▪ Optinal bottom sealing,take-out robot.Applications
Applications
1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank:our production line is used to produce containers of 1-5L for automotive supplies such as gerar oil bottle,lubrication oil bottle and cooling water tank.
Technical parameters
| Model | Unit | BM30 | BM50 | BM100 | BM160 |
| Maxproduct volume | L | 30 | 50 | 100 | 160 |
| Drycycle | Pc/h | 600 | 450 | 360 | 300 |
| Die head structure | Accumulating Type | ||||
| Main screw diameter | mm | 80 | 90 | 100 | 100 |
| Max plasticizing capacity（PE） | kg/h | 120 | 180 | 190 | 240 |
| Driving motor | Kw | 37 | 45 | 55 | 90 |
| Accumulating volume | L | 5.2 | 6.2 | 12.8 | 18 |
| Oil pump motor power（Servo） | Kw | 22 | 30 | 30 | 30 |
| Clamping force | KN | 280 | 400 | 600 | 800 |
| Space between platen | mm | 400-900 | 450-1200 | 500-1300 | 500-1400 |
| Platen sizeW*H | mm | 740*740 | 880*880 | 1020*1000 | 1120*1200 |
| Max. mould size | mm | 550*650 | 700*850 | 800*1200 | 900*1450 |
| Heating power of die head | Kw | 20 | 28 | 30 | 30 |
| Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.5 | 5.5*2.5*4.0 | 7*3.5*4.0 |
| Machine weight | T | 12 | 13.5 | 16 | 20 |
| Total power | Kw | 95 | 110 | 135 | 172 |
