Medium Voltage Vacuum Circuit Breaker 12kV: A Retrofit Guide

Industry Background and the Retrofit Challenge in 12kV Switchgear

Medium voltage networks operating at 12kV form the backbone of utility distribution, industrial power feeds, and renewable generation collection points across a wide range of markets. Within these networks, the vacuum circuit breaker performs a defining function: it interrupts short-circuit current and protects both equipment and personnel when a fault occurs. Yet a persistent operational problem affects many of these installations. Aged breakers built decades ago on oil, air-magnetic, or early vacuum technology eventually require replacement, and buyers frequently discover that dimensional compatibility with existing panels is not guaranteed. A breaker that is electrically suitable may still fail to fit an existing cabinet without costly modification, creating delay and unplanned expense for utility, industrial, and infrastructure projects alike.

This retrofit problem sits alongside a broader industry pain point: insulator and switchgear component misselection based on appearance or thread size alone, which leads to insulation mismatch, certification failures, and field failures. Yueqing Duwai Electric Co., Ltd., operating under the brand DOWE (Duwei), has built its business around addressing exactly this category of selection risk. Founded in 2012 and headquartered in Liushi Town, Yueqing City, Zhejiang Province, China—recognized as China’s Capital of Electrical Appliances—the company has concentrated 14 years of continuous research and production on busbar insulators and associated switchgear insulation components, extending this focused manufacturing approach into medium voltage vacuum circuit breakers such as the VS1-12 and VSG-12 product lines for 12kV service.

Authoritative Analysis: Why Dimensional and Electrical Compatibility Both Matter

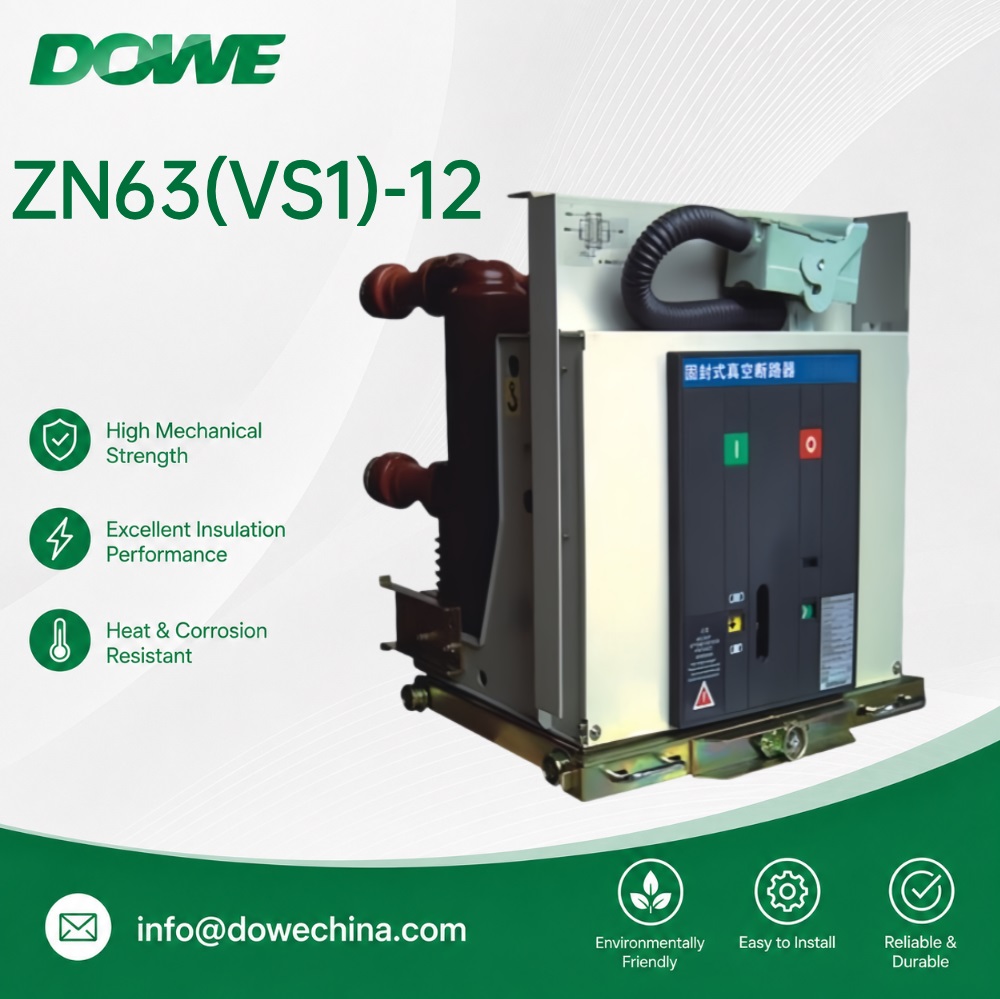

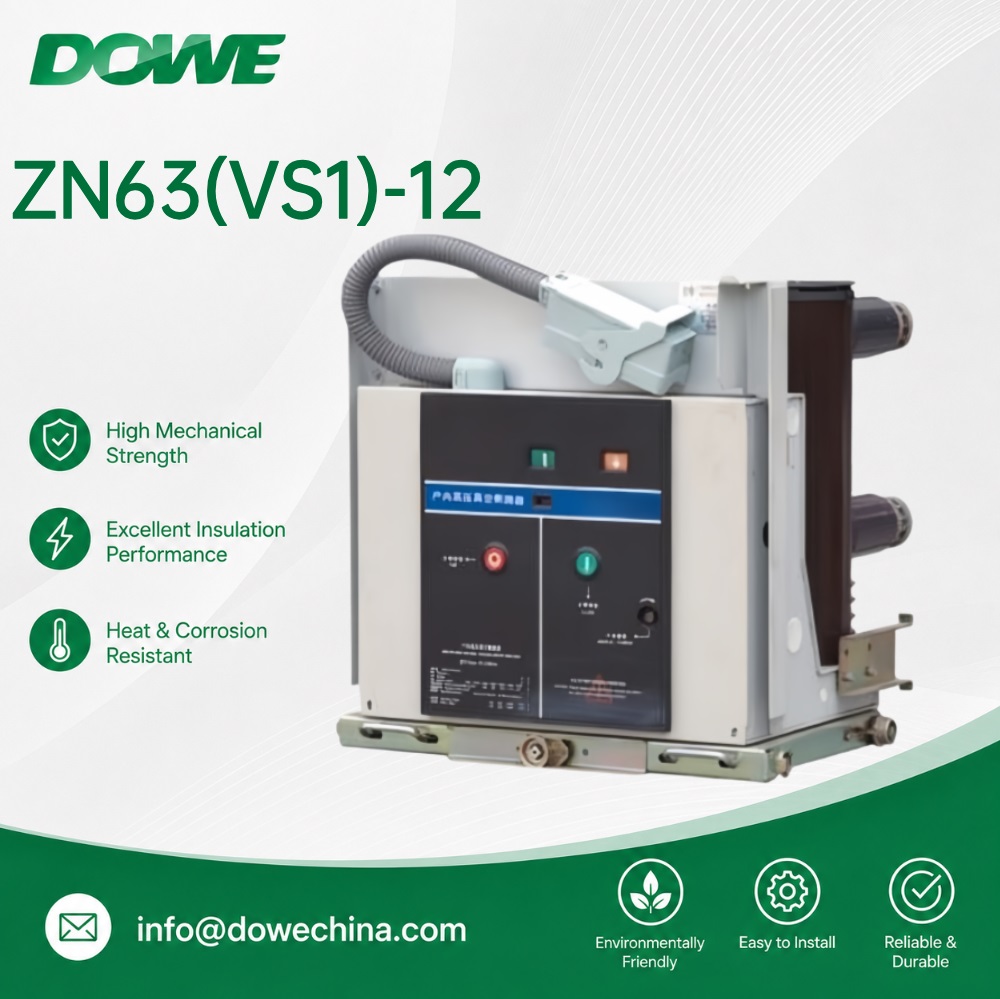

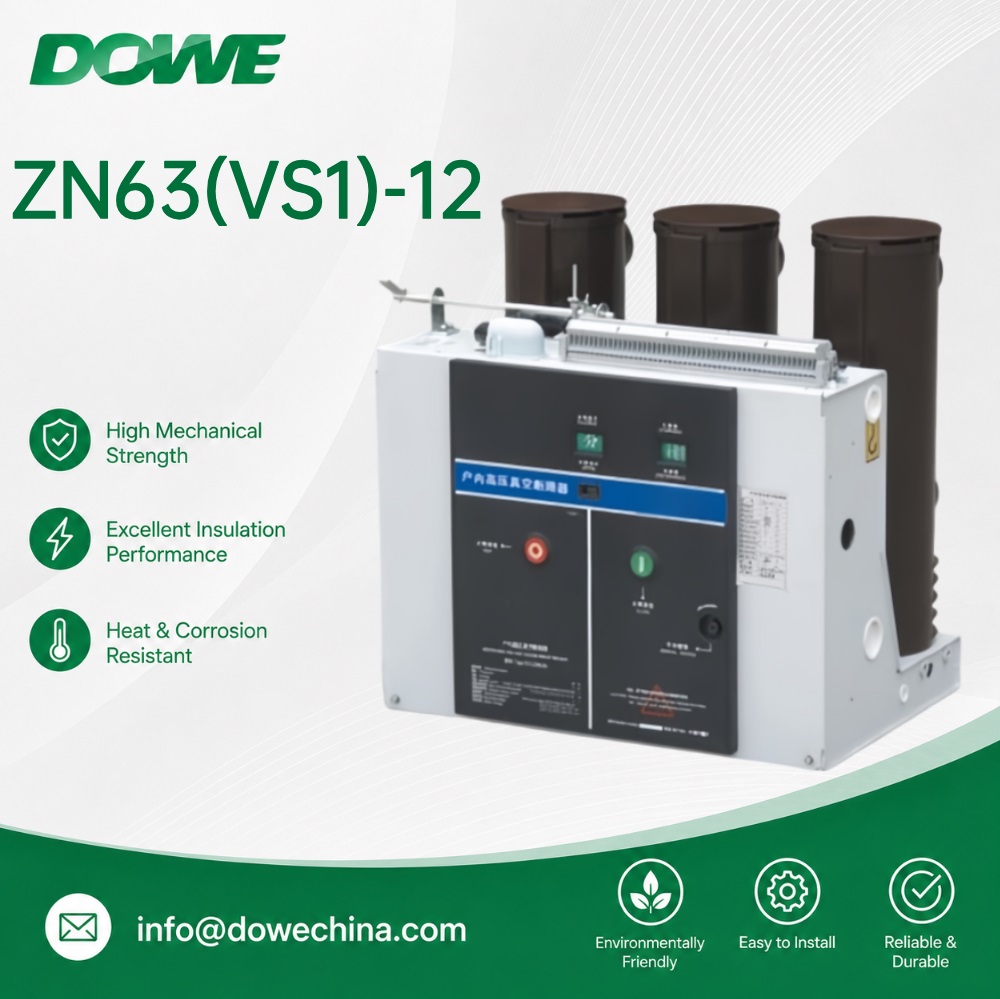

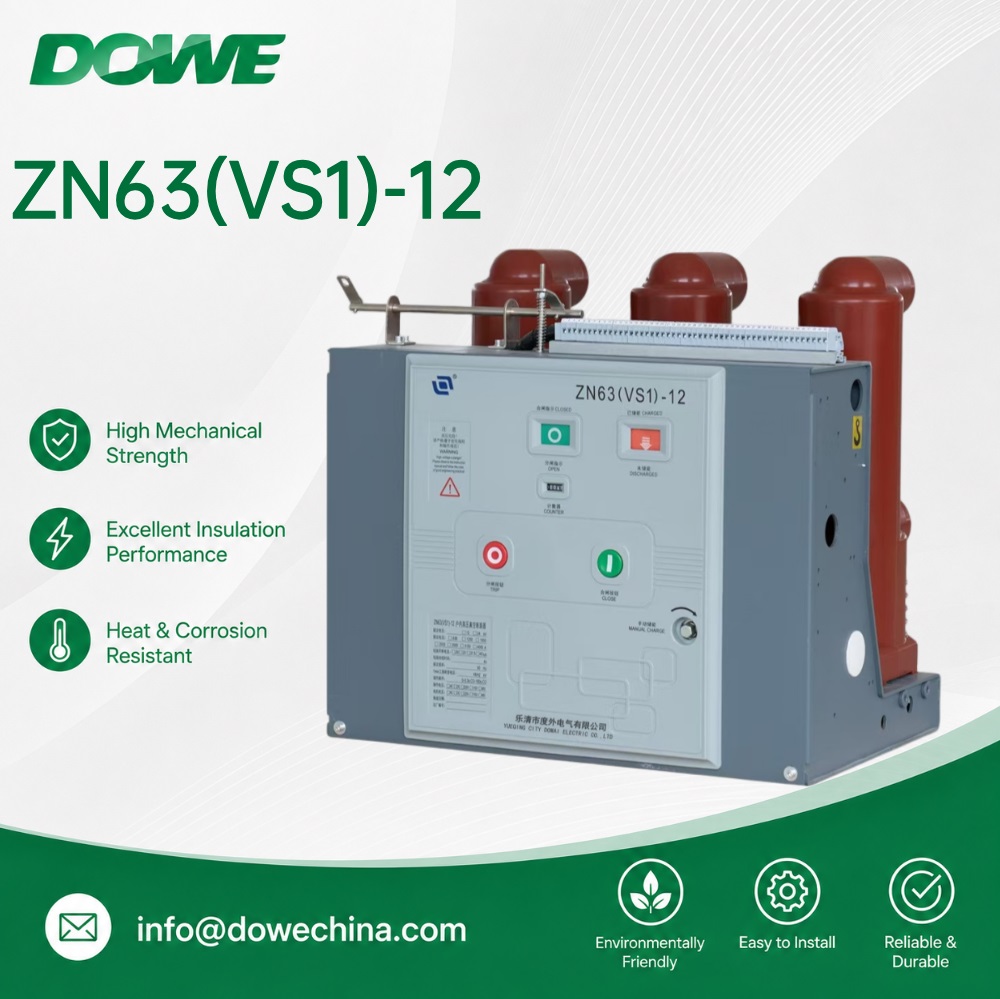

The technical logic behind a reliable 12kV vacuum circuit breaker rests on two inseparable requirements: electrical performance and physical fit. Electrically, the VS1-12 Indoor Vacuum Circuit Breaker is built to IEC 62271-100 and GB/T 1984, and stands as the standard breaker fitted to KYN28 metal-clad switchgear. Its vacuum interrupter is sealed and evacuated below 10^-3 Pa, allowing the arc to extinguish at the first natural current zero as dielectric strength is restored and metal vapor condenses back onto the contacts. This mechanism eliminates the need for oil or SF6 handling, which in turn removes F-Gas reporting, leak checking, and end-of-life recovery obligations, and supports a maintenance-free interrupter suited to markets with limited local servicing capability.

Physically, the VS1-12 carries a rated voltage of 12kV, rated current from 630A to 3150A, a pole centre distance of 210mm, and short-circuit ratings of 25kA or 31.5kA breaking current with peak making current of 63kA or 80kA. These parameters are paired with dimensional compatibility to VS1, VD4, and 3AH5 footprints, allowing direct replacement of aged breakers without modifying the cabinet. The VSG-12 withdrawable handcart configuration extends this same electrical platform onto a wheeled trolley with Service, Test, and Isolated positions, compatible with VS1, VD4, and equivalent KYN28 handcart footprints, and mechanically interlocked so that the breaker must be open before racking and the earthing switch cannot close while the breaker is racked in. Endurance figures—30,000 mechanical operations and 10,000 electrical operations at rated current—are stated to exceed the typical life of the switchgear the breaker sits in, meaning the interrupter is not expected to be the limiting component of the installation.

Deep Insights: Where 12kV Vacuum Breaker Demand Is Heading

Several structural patterns emerge from the way 12kV vacuum circuit breakers are specified and used across industries. First, retrofit demand is not confined to aging utility infrastructure; it extends to continuous-process facilities such as petrochemical, cement, steel, mining, and desalination plants, where feeder availability is critical and any modification-heavy replacement carries production risk. Second, renewable generation connection points on solar PV and wind collection networks represent a growing application for 12kV breakers, alongside more traditional roles in transformer primary protection, industrial motor feeder protection, generator circuit breaker duty, and capacitor bank switching. Third, buyers increasingly require documentation before committing to a replacement decision: interchangeability confirmation submitted against existing breaker model, pole centre distance, and mounting dimensions has become a practical precondition for retrofit orders, reflecting a broader shift toward compliance-verified rather than appearance-based selection.

This shift aligns with the company’s stated strategic positioning: a proprietary three-level voltage classification specification that maps insulator and switchgear component parameters to voltage range, pollution degree, mechanical load, and installation environment, built specifically to eliminate the insulation mismatch that undermines selection based on appearance or thread size alone.

Company Value: How Duwei Supports Engineering-Grade Selection

Yueqing Duwai Electric Co., Ltd. positions its value proposition around reliable components combined with engineering selection support and test-backed compliance, intended to help switchgear OEMs, EPC contractors, and maintenance teams reduce selection risk, certification delays, and field failures. This is reflected in concrete service practices: every vacuum circuit breaker unit is function-tested at minimum, rated, and maximum control voltage to support operation during station battery voltage sag, and complete test reports are shipped with products rather than provided separately. The company maintains 38+ compliance test certificates across IEC, UL, RoHS, REACH, and GB/T standards, and offers 120+ standard models alongside OEM/ODM customization for non-standard geometries, phase barriers, and thread inserts. Delivery capability is structured for both evaluation and volume needs, with small-batch samples available within 2–5 working days and full-container batches within 20–25 days. This combination of documented compliance, verified compatibility, and responsive delivery supports the company’s export network, which covers 60+ countries and regions across six continents.

Conclusion and Recommendations for Industry Buyers

Specifying a 12kV vacuum circuit breaker is not simply a matter of matching a voltage rating; it requires confirming pole centre distance, mounting footprint, control voltage range, and short-circuit ratings against the specific switchgear it will serve, particularly in retrofit scenarios involving aged KYN28 or equivalent panels. Buyers—whether switchgear OEMs, EPC contractors, or maintenance teams—are advised to request test reports and interchangeability confirmation before ordering, rather than relying on appearance or nameplate voltage alone. For projects spanning utility, industrial, and renewable generation applications, working with a manufacturer that documents compliance to IEC 62271-100 and GB/T 1984, and that verifies control voltage function testing on every unit, provides a more defensible basis for long-term switchgear reliability than selection based on price or superficial fit alone.
