Monochromator UV-Vis Microplate Reader for Drug Discovery

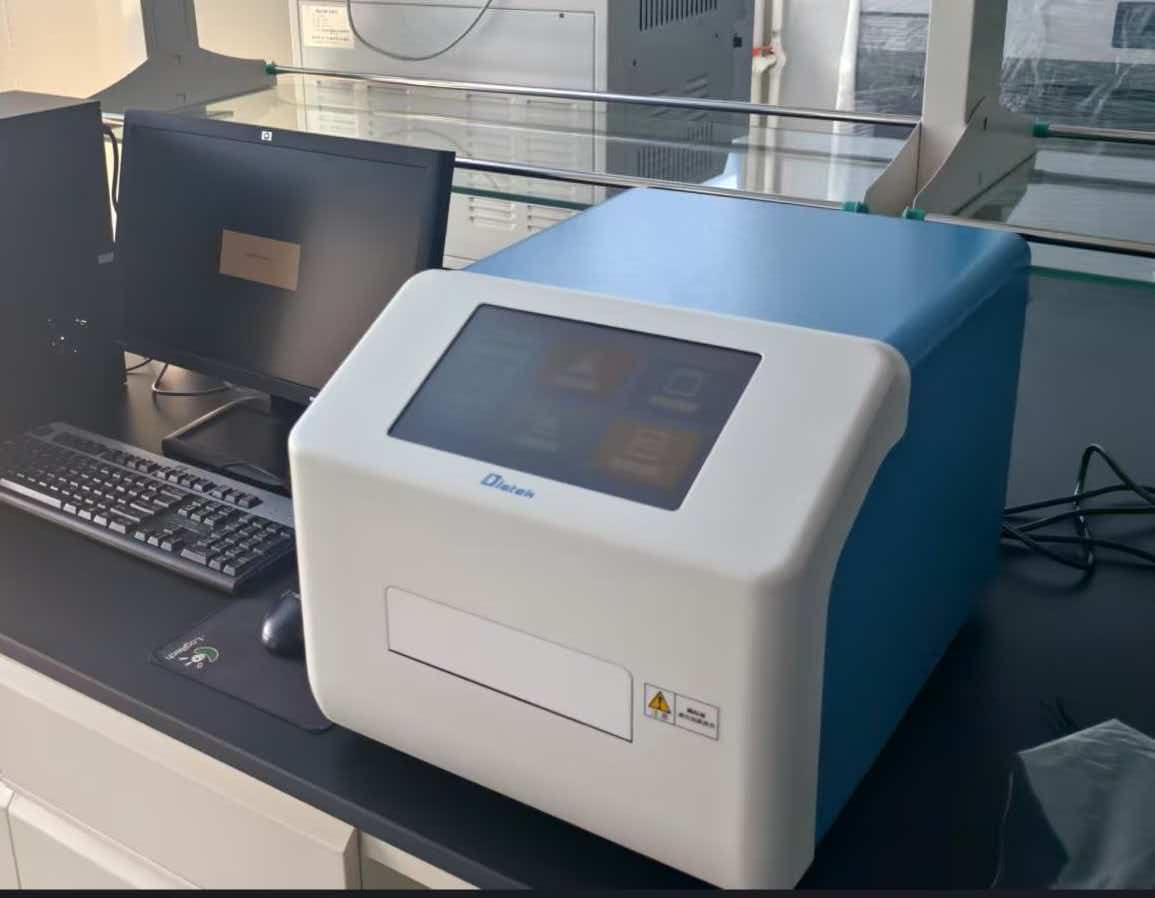

Laboratories engaged in drug discovery, biochemical analysis, and clinical research consistently face a common obstacle: fixed-filter microplate readers restrict wavelength selection and slow down multi-assay workflows. The DR-5000 Full Wavelength Microplate Reader, manufactured by Wuxi Hiwell-Diatek Instrument Co., Ltd. under the Diatek brand, addresses this challenge through a monochromator-based UV-Vis detection system that eliminates the need for physical filter changes. This review examines the instrument’s technical architecture, workflow design, and industry applications based on manufacturer-provided specifications.

Why Monochromator Technology Matters for Drug Discovery

Traditional filter-based microplate readers require researchers to swap physical filters to change detection wavelengths, a process that introduces delays and limits flexibility when running diverse biological, chemical, and physical assays. The DR-5000 resolves this pain point through a proprietary monochromator technology using high-precision gratings that enables filter-free wavelength tuning across the full 190–1100 nm range, in 0.1 nm or 1 nm increments. For drug discovery applications—where researchers may need to move between DNA/RNA quantification, protein assays, and turbidity studies within a single session—this full-spectrum flexibility removes the operational bottleneck associated with additional filter purchases.

Core Technical Specifications

The instrument’s performance is defined by several key technical metrics documented by the manufacturer:

• Wavelength Accuracy: ±0.5 nm
• Absorbance Stability: ≤±0.002A
• Wavelength Repeatability: ≤0.2 nm
• Detection Speed: 10 seconds for a 96-well plate
• Stray Light Control: ≤0.05% (Pro model)
• Continuous Reading Speed: 16.5 seconds for continuous 96-well reading

These specifications support the demands of drug discovery research, where kinetic data analysis and spectral scanning require both speed and precision. The DR-5000 also supports 4-Parameter Logistic (4PL) regression along with multiple linear and non-linear regression modeling, giving researchers the analytical flexibility to interpret complex biological responses without relying on external software.

Android-Based Operation: Reducing the Learning Curve

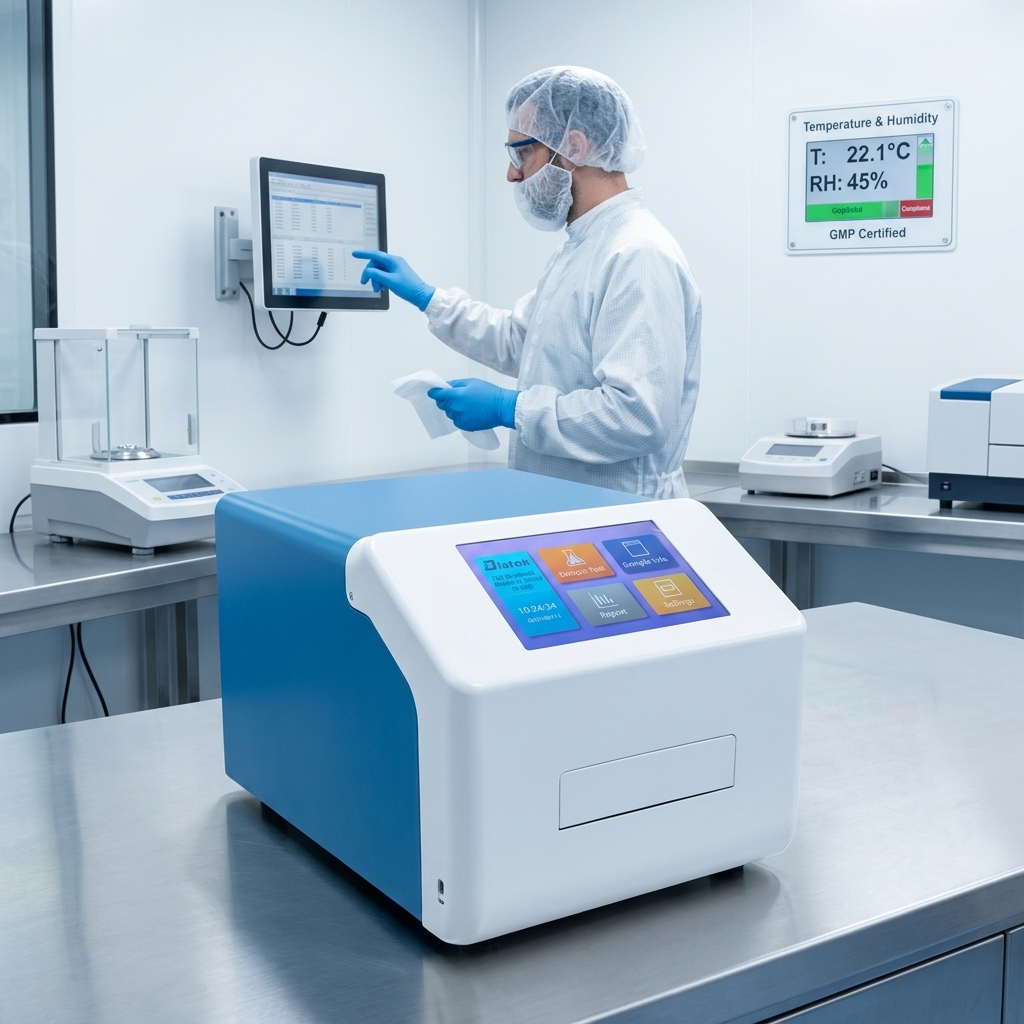

A defining feature of the DR-5000 is its integration of an Android 5.1 operating system into laboratory hardware, delivered through a 10-inch capacitive color LCD touchscreen. This design brings smartphone-like touch operation to a laboratory instrument, allowing researchers to navigate a visual workflow structured around three stages: Layout → Analysis → Processing. According to the manufacturer, this interface “reduces the learning curve” for laboratory staff who may otherwise need extensive training on traditional reader software. The touchscreen interface is also described as compliant with IVD human factors engineering standards, reflecting attention to usability in regulated laboratory environments.

Automated Precision for Consistent Results

Beyond wavelength flexibility, the DR-5000 incorporates automation features designed to protect sample integrity and instrument accuracy:

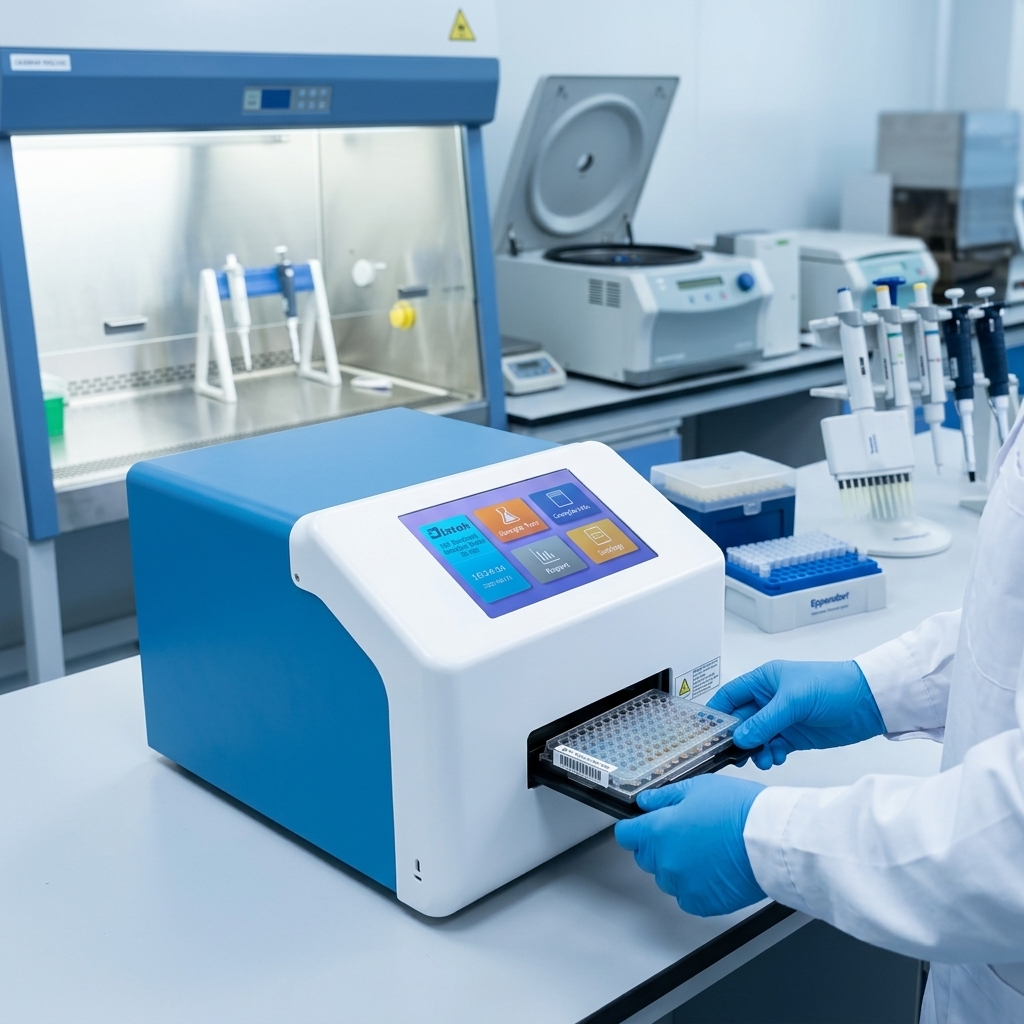

• Automatic Plate Drawer: Motorized entry and exit of the microplate prevents manual handling errors and protects the optical path from contamination or misalignment.
• Incubation Module: Temperature control ranging from Room Temperature +4°C up to 45°C ensures stability for temperature-sensitive biological reactions, a critical requirement for many drug discovery kinetic assays.
• Multi-Speed Shaking: Linear and orbital shaking with three speed settings optimizes sample mixing while preventing liquid spilling during agitation.

Together, these automated components are intended to minimize variability introduced by manual handling, a factor that directly affects reproducibility in pharmaceutical and biochemical research.

Dual Light Source Options for Different Research Needs

The DR-5000 series offers instruments equipped with either a dual light source system (Deuterium and Tungsten halogen lamps) or a high-energy Xenon flash lamp, giving laboratories the ability to select a configuration suited to their specific assay requirements. This is paired with a precision optical system, and in the Pro model, stray light is controlled to ≤0.05%, an important factor for absorbance accuracy in low-concentration sample detection.

Software and Data Management

The hardware is supported by the Diatek Microplate Analysis Software, which can operate in standalone mode or through a PC-connected configuration. The software provides real-time endpoint and kinetic data analysis along with built-in calibration methods, including Log-Log, Power, and Polynomial models. For drug discovery teams that need to document and share findings, the platform supports data export in TXT, PDF, Word, and Excel formats, and includes FTP service support for uploading and downloading detection data between the instrument and connected PC software.

Connectivity is handled through USB-A and USB-B interfaces, which are compatible with U-disks, USB printers, and standard peripheral devices such as keyboards and mice. This level of platform openness allows the DR-5000 to integrate into existing laboratory IT environments without requiring proprietary accessories.

Security and Compliance Considerations

Given the sensitivity of research and diagnostic data, the DR-5000 platform incorporates password-protected user login for instrument access, along with SSL and PCI DSS data protection protocols for transaction security. These measures are particularly relevant for laboratories operating under regulatory oversight, including those in Clinical Diagnostics (IVD) and academic research settings.

Industry Applications

The DR-5000’s specifications translate into practical use across several research domains:

• Life Sciences: DNA/RNA quantification with a detection limit of 2ng/µl, along with standard protein assays.
• Clinical Research: Endpoint and kinetic assays supporting biochemical analysis workflows.
• Chemical Testing: Turbidity studies and spectral scanning for chemical manufacturing applications.

These applications align with the customer base served by Wuxi Hiwell-Diatek, which includes provincial laboratories, university research centers, diagnostic test manufacturers, and international laboratory equipment distributors across markets such as Brazil, the United Arab Emirates, the United States, Peru, Algeria, and Chile.

Service and Warranty Support

Wuxi Hiwell-Diatek backs the DR-5000 with a 1-year free repair warranty, lifetime maintenance services, and a 5-year product lifespan commitment. Additional service scope includes technical installation guidance, sample handling advisory, training, and ongoing maintenance support. Orders placed through Alibaba.com are further protected by Alibaba.com Trade Assurance, covering order refund and shipping protection.

Conclusion

For laboratories seeking a UV-Vis microplate reader capable of supporting the variable wavelength demands of drug discovery research, the DR-5000 series from Wuxi Hiwell-Diatek Instrument Co., Ltd. presents a technically documented option. Its combination of filter-free monochromator detection, Android-based touch operation, automated sample handling, and comprehensive data export capabilities reflects a design approach centered on precision, workflow efficiency, and regulatory-conscious data security—qualities directly relevant to researchers working across biotechnology, clinical diagnostics, and chemical testing fields.
