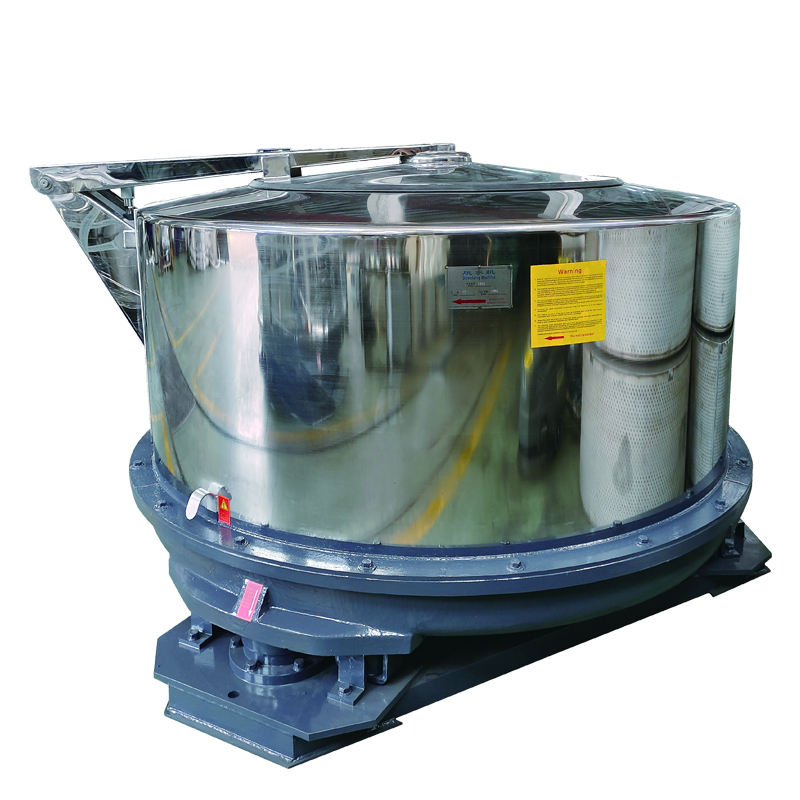

Motor Drive Hydro Extractor
A three-belt drive system, driven by a motor, gradually starts the machine and reaches normal speed, ensuring smooth, vibration-free operation.
| Dewatering machine | ||||||
| Model | SS752-500 | SS752-600 | SS753-800 | SS751-1000 | SS754-1200 | SWE301-150 |
| Inner drum Dia.（mm) | 500 | 600 | 800 | 1000 | 1200 | 1500 |
| Inner drum Depth （mm) | 300 | 300 | 340 | 380 | 480 | 600 |
| Speed（r/min) | 960 | 960 | 910 | 900 | 700 | 750 |
| Motor（kw) | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 11 |
| Capacity （kg) | 25 | 50 | 80 | 130 | 220 | 500 |
| Overall dimensions(mm) | 1000*1000*650 | 1250*1250*700 | 1500*1500*800 | 1800×1800×900 | 2000*2000*1020 | 2550×1950×1400 |
| Net weight(kg) | 250 | 450 | 760 | 1100 | 1600 | 2400 |
1. Unique three-leg suspension structure prevents vibration caused by
unbalanced loads.
2. The inner liner is crafted from stainless steel, making it durable and
sturdy.
3. A unique brake opening and closing arm mechanism provides excellent
braking performance and safety.
4. A three-belt drive system, driven by a motor, gradually starts the machine
and reaches normal speed, ensuring smooth, vibration-free operation.
