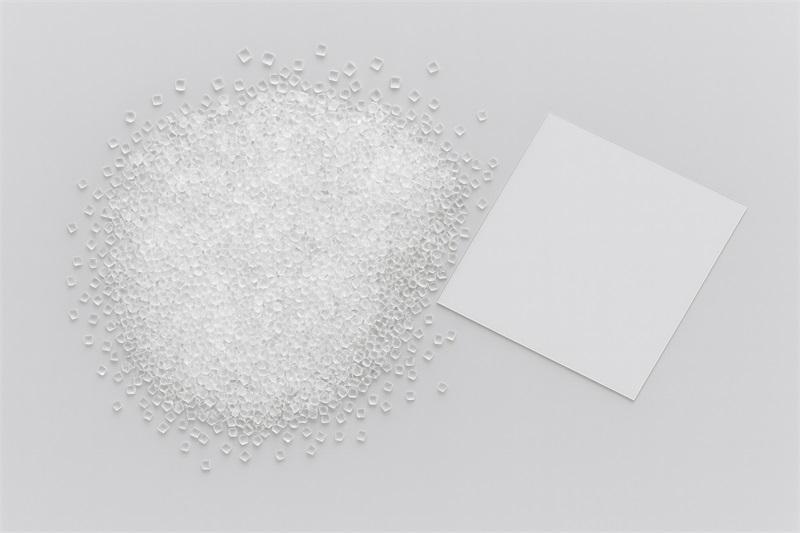

PETG Resin WS-502 For Sheet
WS-502 has the characteristics of high transparency, low haze, good mechanical properties, and low processing temperature compared to ordinary polyester.
WS-502 is a high-performance PETG resin developed for PETG shrink sleeve labels, 3D printing filaments, sheets, films, bottles, and container applications.
As a transparent thermoplastic polyester material, WS-502 provides excellent optical clarity, impact resistance, flexibility, and stable shrink performance. Compared with conventional PVC and standard PET materials, it offers improved processing flexibility and lower molding temperature requirements.
This PETG resin is designed for applications requiring high transparency, durability, and easy processing, including packaging, labeling, medical containers, food packaging, daily-use products, and additive manufacturing materials.
WS-502 can be processed into various sheets, plates, bottles, and containers where high transparency, toughness, and molding efficiency are required.
Key Features
-
High transparency with excellent optical performance
-
Outstanding toughness and impact resistance
-
Stable shrink performance for PETG shrink sleeve label production
-
Lower processing temperature compared with some traditional polyester materials
-
Good flexibility and molding characteristics
-
Suitable for food, medical, and daily-use packaging applications
-
Compatible with sheet, film, bottle, and container manufacturing processes
Technical Data Sheet
| Item | Unit | Test Method | WS-502 |
|---|---|---|---|
| Physical Properties | |||
| Intrinsic Viscosity | dL/g | Ubbelodhe viscometer | 0.780 ± 0.015 |
| Specific Gravity | g/cm³ | ASTM D792 | 1.27 |
| Moisture Absorption | % | ASTM D570 | 0.12 |
| Mechanical Properties | |||
| Tensile Strength @ Yield (50mm/min) | kgf/cm² | ASTM D638 | 508 |
| Tensile Strength @ Break (50mm/min) | kgf/cm² | ASTM D638 | 292 |
| Elongation @ Yield (50mm/min) | % | ASTM D638 | 5 |
| Elongation @ Break (50mm/min) | % | ASTM D638 | 165 |
| Flexural Strength | kgf/cm² | ASTM D790 | 680 |
| Flexural Modulus | kgf/cm² | ASTM D790 | 21200 |
| Low Temperature Falling Dart Impact | g | ASTM D358 | 829 |
| Atmospheric Temperature Falling Dart Impact | g | ASTM D358 | 1803 |
| Izod Impact Strength Notched @23℃ (73℉) | J/m | ASTM D256 | 102 |
| Hardness | |||
| Rockwell Hardness | – | R-scale | 117 |
| Thermal Properties | |||
| Heat Distortion Temperature @0.45MPa (66 psi) | ℃ | ASTM D648 | 77 |
| Melt Flow Index | g/10min | ASTM D1238-04 | 1.8 |
| Melting Point | ℃ | – | ≥196 ± 2 |
| Electrical Properties | |||
| Surface Resistivity | Ohm | ASTM D257 | 10¹⁶ |
| Volume Resistivity | Ohm·cm | ASTM D257 | 10¹⁵ |
| Dielectric Strength | kV/mm | ASTM D149 | 16 |
| Dielectric Constant (1 kHz) | – | ASTM D150 | 2.6 |
| Dielectric Constant (1 MHz) | – | ASTM D150 | 2.4 |
| Dissipation Factor (1 kHz) | – | ASTM D150 | 0.005 |
| Dissipation Factor (1 MHz) | – | ASTM D150 | 0.023 |
| Flammability | |||
| UL Flammability Classification (1.00mm) | – | UL 94 | HB |
| UL Flammability Classification (1.50mm) | – | UL 94 | HB |
| UL Flammability Classification (3.00mm) | – | UL 94 | V-2 |
| Optical Properties | |||
| Haze | % | – | <1.0 |
| Transmittance | % | ASTM D541 | 90 |
| Refractive Index | – | ASTM D542 | 1.56 |
Applications
PETG Sheets and Films
WS-502 is suitable for manufacturing transparent sheets and films that require high impact strength, toughness, and stable dimensional performance.
Typical applications include:
-
Indoor and outdoor signs
-
Storage and display shelves
-
Vending machine panels
-
Furniture components
-
Construction materials
-
Mechanical protective panels
Due to its compatibility with other polyester materials, WS-502 can also be used with GAG, G-APET, and similar materials for composite sheet production.
PETG Bottles and Containers
WS-502 PETG resin is suitable for producing transparent bottles and containers requiring excellent appearance, flexibility, and molding performance.
Common applications include:
-
Cosmetic bottles
-
Pharmaceutical bottles
-
Food packaging containers
-
Daily-use containers
The material helps manufacturers achieve clear visual appearance, reliable mechanical performance, and efficient production processes.
Packaging Method
WS-502 PETG resin is supplied in industrial packaging suitable for storage, transportation, and large-scale manufacturing requirements.
