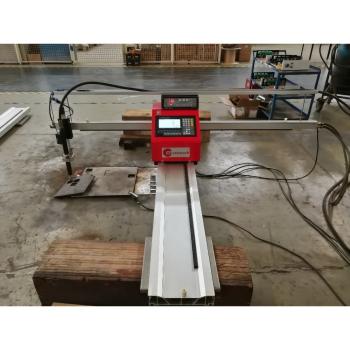

Portable Type CNC Flame and Plasma Cutting Machine
Portable Type CNC Flame and Plasma Cutting Machine
Description:
Portable CNC portable plasma or flame cutting machine can be programmed to cut any plane shape parts composed of beeline and arc, which are same as large gantry cutting machines. It is equipped with A inch LED with dynamic and static graphical display. It is directly perceived and very easy to learn. It can be programmed to cutting parts directly, and also can be operated in computer translating instructions into a program file by CAD program, and then deducing it via U hardware. The standard positioning of this machine is flame cutting, external hanging plasma cutter is also workable.
Specification of portable gas cutting machine:
| Effective Cutting Range: | 1500*3000mm |
| Max. Return Speed: | 3000mm/min |
| Flame Cutting Thickness: | 5~120mm |
| Plasma Cutting Thickness: | Depend on Plasma |
| Power Supply Voltage: | 220V |
| Frequency: | 50Hz |
| Rated Power: | 0.24LW |
| Oxy Max Pressure: | 0.7MPa |
| Gas Max Pressure: | 0.1Mpa |
| Cutting Shape: | any shapes |
| Cutting Mode: | plasma and flame |
| Drive Mode: | single-side |
| Control accuracy: | ±0.01mm |
Products advantages:
1) Portable CNC plasma or flame cutting machine is an integrally compact mini structure and is an ideal updating and upgrading product for replacing handheld flame cutting equipment, handheld plasma cutting device, profiling cutting machine and semi-auto cutting trolley.
2) Operated easily and flexibly.
3) Without any fixed site and with random moving.
4) It is applicable to inside or outside cutting.
5) Able to cut off various metal materials of any graphs.
6) Good finish. In general, There is no need to process surface further after cutting.
7) It is provided with advantages such as high automation, easy operation, high accuracy, high reliability, low price, and simple operation & maintenance and so on.
CNC portable cutting machine detai
