Reliable Drone Propeller Supplier for Middle East UAVs

Meeting Industrial UAV Power Demands in the Middle East

Across the Middle East, industrial unmanned aerial vehicles are increasingly deployed for pipeline and infrastructure inspection, aerial mapping, agricultural plant protection, and long-range surveillance. As these platforms take on heavier payloads—LiDAR units, spraying systems, multispectral cameras, and high-precision mapping equipment—the propulsion system becomes the determining factor in whether a mission succeeds. Operators frequently report three recurring pain points: insufficient thrust reserves once payload increases, flight jitter or instability under load, and motor overheating during high-intensity or long-duration operations. Addressing these challenges requires a propeller supplier that understands both aerodynamics and materials science at an industrial scale.

Ningbo Gemfan Hobby Co., Ltd., operating under the brand GEMFAN, has spent 15 years focused on UAV propulsion system components. The company’s business coverage spans more than 60 countries and regions, including China, the USA, the UAE, Europe, and Australia—giving Middle East operators access to a supplier with established international delivery experience and a portfolio exceeding 1,700 propeller models across multi-rotor and fixed-wing platforms. This breadth allows buyers sourcing from the region to standardize on a single, reliable supplier rather than fragmenting procurement across multiple vendors.

Why Propulsion Design Matters for Heavy-Payload Missions

GEMFAN’s strategic positioning centers on optimizing aerodynamic structures and upgrading material technologies to deliver high-thrust, high-efficiency, and smooth-running propeller solutions for medium-to-large industrial-grade UAVs. The company’s team brings years of experience in propulsion system research and development, with specific expertise in precision dynamic balance control and material application technologies—two disciplines that directly determine whether a large propeller can run smoothly at scale without inducing vibration into the flight controller or motor bearings.

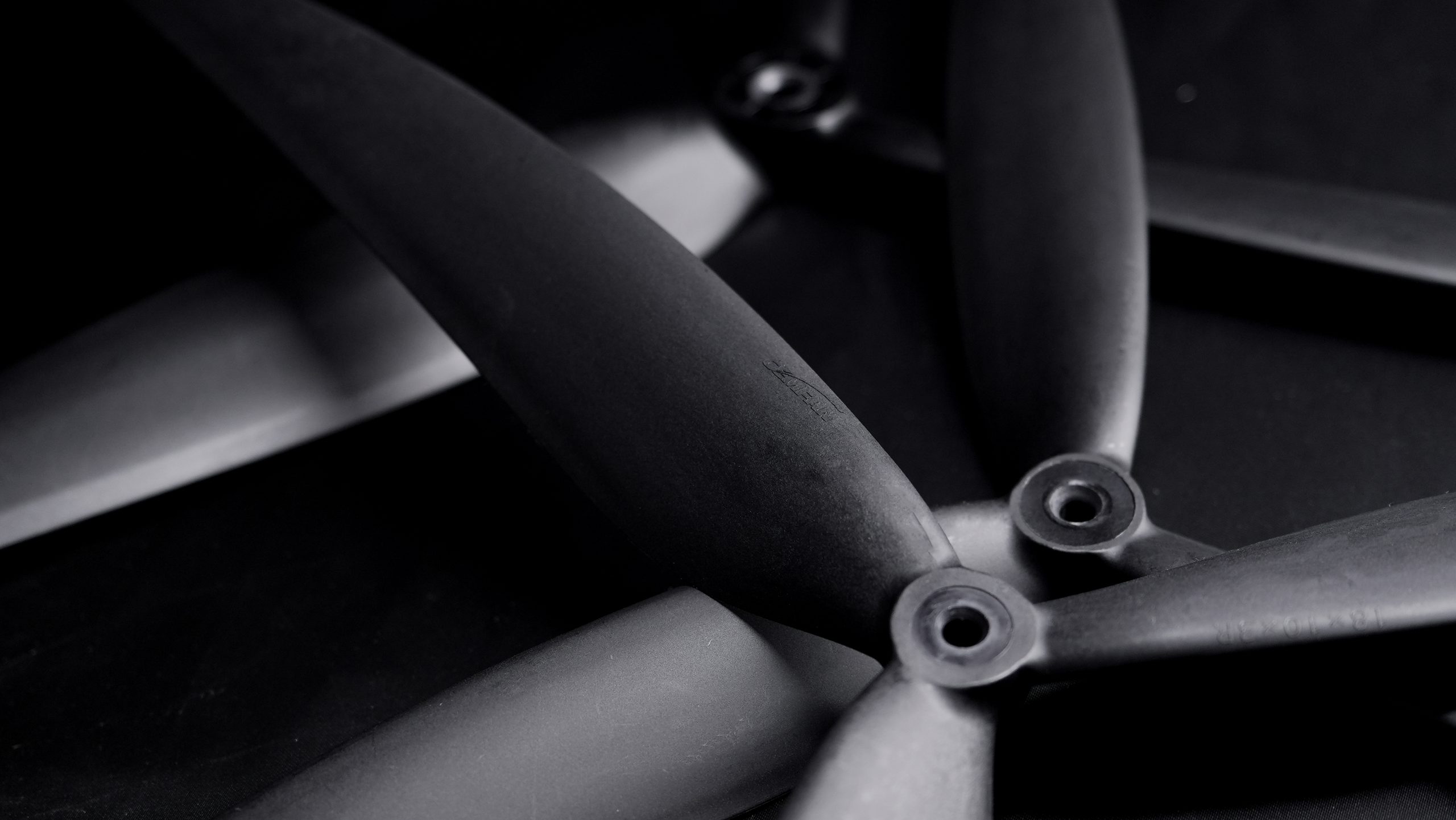

The Large Wheelbase 3-Blade UAV Propeller Series

GEMFAN’s main product line for industrial applications is the Large Wheelbase 3-Blade UAV Propeller Series, engineered specifically for platforms ranging from 650mm to 1200mm wheelbase classes. Each model is built around a shared design principle: a three-blade aerodynamic structure provides more stable thrust than two-blade propellers at the same RPM, while larger diameters generate greater thrust at lower RPM, reducing energy consumption per unit of thrust.

16X8X3 — for 650mm-class platforms. This model offers a propeller diameter of 406.4mm (16 inches) and 8-inch pitch, weighing 84.9g per unit and constructed from glass fiber nylon. It is recommended with 4720 500KV-level motors for quadcopters with a takeoff weight of 9–12kg, addressing insufficient power reserves and flight jitter when medium-sized professional UAVs carry additional payloads.

17X8X3 — for 750mm-class platforms. With a 431.8mm diameter and 8-inch pitch, this 100.5g propeller is designed for continuous power output and system durability in aerial photography and material transportation tasks. Paired with 5330-level motors on roughly 780mm wheelbase platforms, it optimizes aerodynamic efficiency to reduce motor RPM and heat, decreasing ESC load and extending propulsion system lifespan.

18X10X3 — for 850mm long-wheelbase missions. At 457.2mm diameter with a 10-inch pitch and 119.3g weight, this model targets long-endurance operations carrying heavy equipment such as multispectral cameras or high-precision mapping devices. Its 18-inch diameter combined with a 10-inch pitch supplies sufficient takeoff thrust for heavy payloads, while the three-blade design improves wind resistance for stable flight in complex industrial environments. It is recommended with 5330-level motors for 11–13kg takeoff weight quadcopters on 1300mm wheelbase platforms.

20-inch class model — for 1050mm long-wheelbase heavy-lift missions. This propeller measures 508mm in diameter with a 10-inch pitch and weighs 170g, using an 8mm center hole with a six-hole adapter ring. Its 20-inch diameter and 10-inch pitch deliver greater static thrust at low RPM, improving endurance under heavy mission payloads. The three-blade configuration increases propeller disk solidity, enhancing airflow stability and gust resistance for stable platform attitude in strong winds—a relevant consideration for Middle East operating environments where wind conditions can vary. High-precision molds and dynamic balancing processes reduce high-frequency vibrations, extending motor and flight controller lifespan. It pairs with 6215-class motors for 12–14kg takeoff weight quadcopters on 1100mm wheelbase platforms.

22X10X3 — for 1200mm long-wheelbase missions. This model reaches 558.8mm diameter with a 10-inch pitch and weighs 182g, offered with 4mm, 15-M3, or 20-M4 center hole configurations. Its 22-inch large-diameter blade delivers higher thrust at lower RPM while reducing motor load. The propeller uses a carbon-fiber-reinforced nylon composite that combines light weight with high rigidity, meeting demands of long-term, high-frequency industrial operations and enhancing fatigue resistance. High-precision dynamic balancing manufacturing reduces vibration and improves flight controller stability, supporting sustained high-load operation, long-duration outdoor flights, and stable hovering in strong winds. It is recommended with 7218-class motors for quadcopters with a 16kg takeoff weight on 1200mm wheelbase platforms.

Shared Engineering Characteristics Across the Series

Several technical features run consistently through the entire Large Wheelbase 3-Blade Series:

• Three-Blade Aerodynamic Structure: Compared to traditional two-blade propellers, the larger air interaction area per unit diameter provides more stable thrust and effectively reduces flight vibration.
• Enhanced Thrust Efficiency: Larger-diameter propellers push a greater air mass at low RPM, reducing energy consumption—suitable for long-time hovering and cruising.
• Low Noise Advantage: Lower operating RPM helps reduce noise pollution during flight, aligning with industrial application environment requirements.
• Mainstream Platform Compatibility: Specifications covering 16–18 inches precisely match current mainstream 800–1200mm wheelbase industrial UAV platforms.

Industry Applications Relevant to Middle East Operations

For industrial inspection of power lines, oil pipelines, and infrastructure, the series improves flight stability during extended sorties. For aerial survey and mapping work, it meets requirements for efficient, long-endurance cruising while preserving data collection precision. In agricultural plant protection, the propellers provide stable thrust reserves to support heavy-load attachments such as spraying systems. Multi-rotor model aircraft builders can also draw on the series to meet customized needs for high-performance propulsion combinations.

A Practical Sourcing Consideration

For Middle East buyers evaluating drone propeller suppliers, the combination of a 15-year manufacturing history, coverage across more than 60 countries including the UAE, and a catalog spanning over 1,700 multi-rotor and fixed-wing propeller models represents a meaningful basis for supplier evaluation. Rather than selecting components in isolation, operators benefit from matching propeller diameter, pitch, weight, and material to their specific motor class, wheelbase, and payload profile—precisely the adaptation logic built into GEMFAN’s Large Wheelbase 3-Blade UAV Propeller Series. As industrial UAV missions in the region continue to demand heavier payloads and longer endurance, propulsion components engineered around thrust stability, efficiency conversion, and dynamic balance consistency will remain central to reliable, repeatable flight operations.
