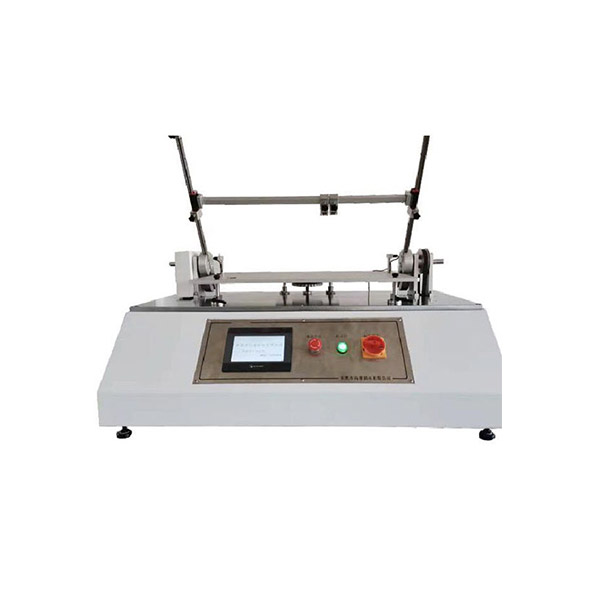

Rotary Shaft Torque Endurance Testing Machine（KZ5300T）
This device is designed to simulate whether a notebook’s hinge retains its force after repeated opening and closing of the lid, or whether increased hinge resistance damages the plastic body.
● Touchscreen for setting test conditions: fast, convenient, and
accurate.
● All test condition settings can be directly input via the touch panel.
● Human-machine interface control system with ample software upgrade
potential.
● Test angle: 0-180 degrees.
● Servo motor drive: high torque, high precision, and long lifespan.
● Adjustable rotation speed (different speeds can be set for on and off).
● Double-sided drive ensures synchronization of left and right sides and
prevents arm wobbling.
● Adjustable pause time after reaching the set angle.
● Display function for swing counts per minute.
● Selectable single-sided or double-sided force application.
● Different test fixtures can be designed according to customer requirements
to meet various testing needs.
|
Model |
MODEL: KZ5300T |
|
Test Angle Range |
0-180 degrees |
|
Maximum Speed |
1-30rpm |
|
Number of test groups simultaneously |
1 group |
|
Control method |
Control screen + servo |
|
Display method |
Embedded control display screen |
|
External dimensions |
L910*W640*H800mm |
|
Machine Weight |
120kg |
|
Maximum Power |
1000W |
|
Input Power |
AC 220V 50Hz |
