SVP/LVP Automated Solution Preparation System | Tailian

The Automated Solution Preparation System for Small & Large Volume Parenterals is a highly integrated, fully enclosed pharmaceutical system developed for precise, efficient, and traceable solution preparation in a sterile and contamination-controlled environment.

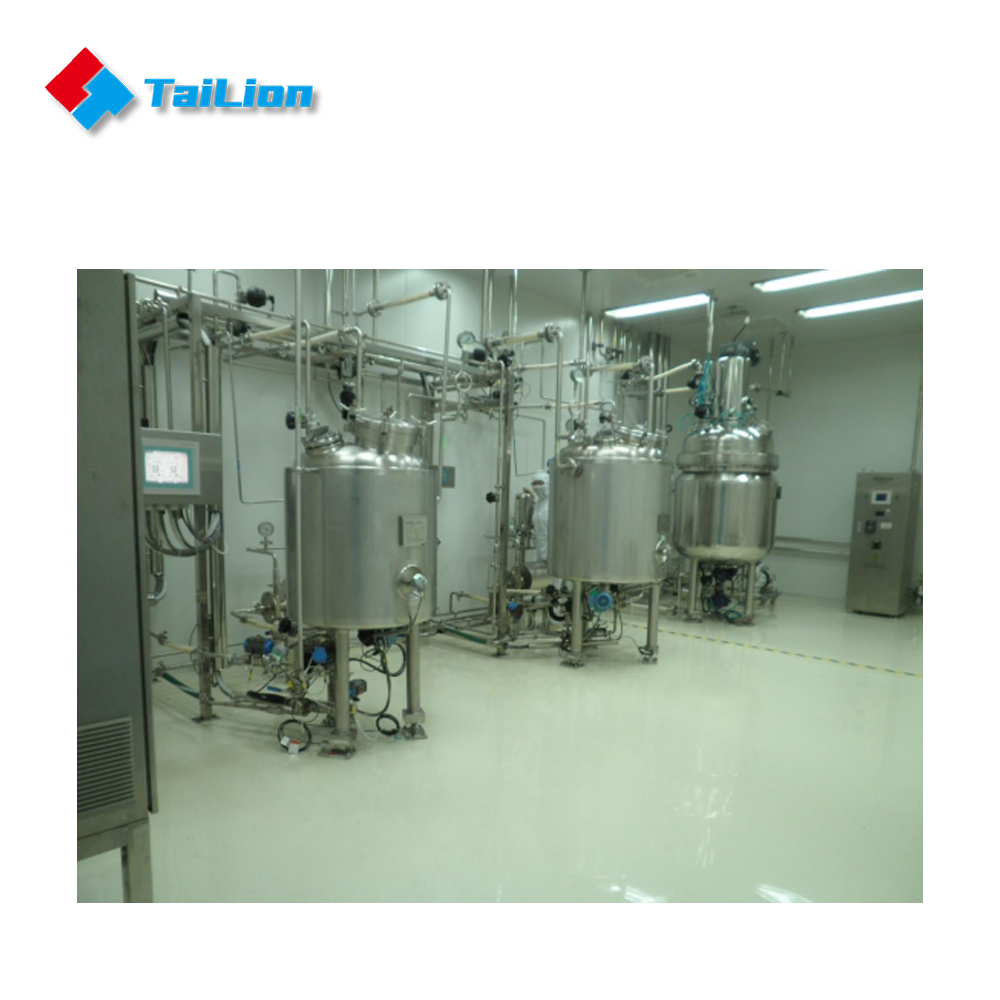

The system uses a dual-tank configuration for concentrated and dilute preparation. The preparation tanks are constructed from 316L stainless steel with mirror-polished internal surfaces. A magnetic stirrer supports aseptic sealing, while the full jacket provides heating and cooling temperature control. A weighing module or level sensor is used for precise quantification.

For pharmaceutical fluid transfer, the system uses a sanitary centrifugal pump. Multi-stage filtration typically includes a 0.45 μm primary cartridge for large particle removal and a 0.22 μm sterilizing-grade cartridge. Titanium rod filtration can also be incorporated for decarbonization.

The system includes compressed air or nitrogen supply, CIP/SIP functions for automated cleaning and sterilization, and tank vent filtration. PLC-based control integrates supervisory computers or touchscreens with sensors for temperature, pH, pressure, and other process parameters.

Automated functions include cleaning and sterilization, raw material charging, agitation control, temperature and pH control, filter integrity testing, and process data recording. Historical data queries and report printing support digital traceability. Available process modes include batch-type enclosed preparation and concentrated-dilute online continuous preparation.
