Ultra High Molecular Weight Polyethylene UHMW-PE
With an ultra-high molecular weight of 3 to 7 million, it has extremely high impact resistance and maintains a high impact energy absorption rate and high strength modulus under high stress.
Product name: Ultra-high molecular weight polyethylene UPE
Origin: Taiwan, China, Germany
Color: white, black, green
Specifications: Plate thickness 10-100mm 610*1220mm
Rod Ф10-200mm Length 1000mm
Performance and use: With 3-7 million ultra-high molecular weight, it has
extremely high impact strength, and still maintains extremely high impact
kinetic energy absorption rate and high strength modulus under high stress.
Outstanding wear resistance and sliding properties, still maintain dimensional
safety when warm, and resist low temperature -250℃. Even at low temperatures, it
still maintains very excellent tensile strength and notch punching strength,

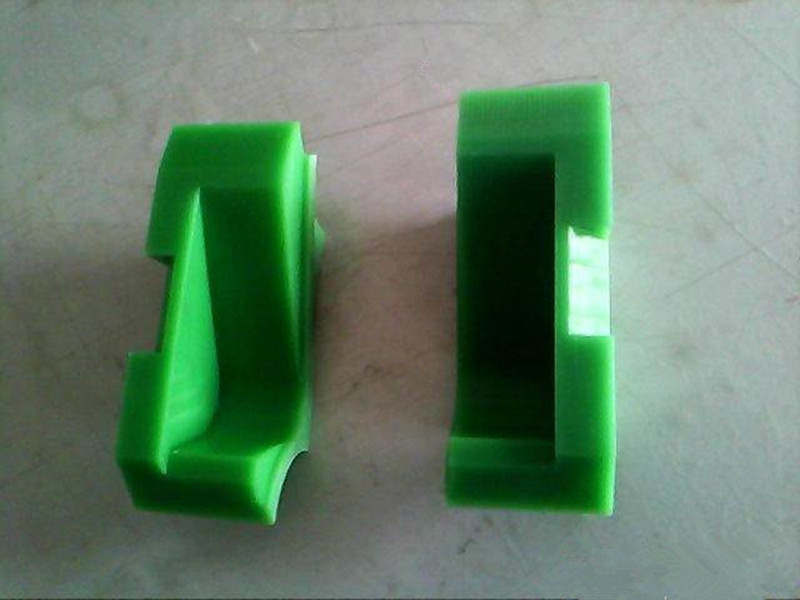

acid and pigment resistance. Suitable for bearings, gears, various bushings,
slide rails, especially elevator accessories, punching bed sheets, food
industry, drilling plates, etc.
Performance parameters:
|
Physical properties |
Test method |
Data |
Unit |
|
Density |
ISO1183 |
0.93 |
g/cm3 |
|
Water absorption |
DIN83495 |
0.01 |
% |
|
Ultimate tensile strain |
ISO527 |
＞50 |
|
|
Continuous use temperature |
-150~90 |
℃ |
|
|
Yield tensile strength |
ISO527 |
17 |
Mpa |
|
Yield tensile strain |
ISO527 |
20 |
% |
|
Impact strain |
ISO179 |
0.B |
Kj/m2 |
|
Notch impact toughness |
ISO179 |
0.B |
Kj/m2 |
|
Rockwell ball pressure hardness |
ISO2039-1 |
36 |
Mpa |
|
Shore D hardness |
DIN53505 |
62 |
– |
|
Bending strength |
ISO178 |
27 |
– |
|
Elastic modulus |
ISO527 |
680 |
Mpa |
|
Thermal distortion temperature |
ISO75 |
65 |
℃ |
