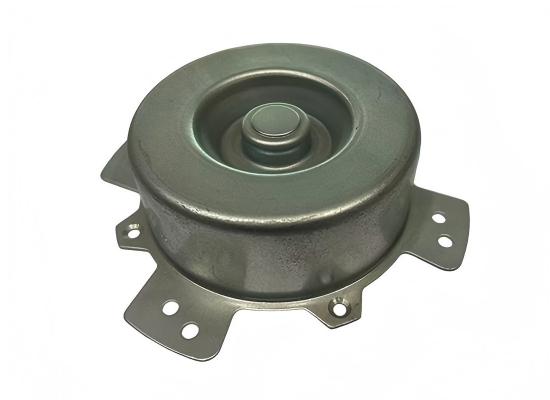

White Zinc Plated Motor End Cover (Inner Diameter 95)

The White Zinc Plated Motor End Cover (Inner Diameter 95 mm) is a high-precision OEM structural component widely used in both HVAC motor systems and washing machine motors. It functions as a critical mechanical interface that ensures stable bearing support, precise rotor alignment, and long-term protection of internal motor assemblies under continuous load conditions.

In modern electromechanical systems, motor performance is no longer defined solely by copper windings or magnetic design. Structural components such as end covers play an equally important role in determining vibration behavior, noise levels, energy efficiency, and service life. This is especially true in HVAC equipment (air conditioning, ventilation, heat pumps) and home appliances (washing machines, dryers), where motors operate continuously under variable environmental conditions.

As a professional OEM manufacturer of motor structural parts, we specialize in delivering precision-machined, corrosion-resistant, and application-optimized motor end covers for global appliance and HVAC motor manufacturers.

Functional Importance of Motor End Covers

The motor end cover is a load-bearing structural housing installed at both ends of an electric motor. Despite its relatively simple appearance, it performs multiple critical engineering functions:

• Supports and aligns motor bearings

• Maintains rotor-stator concentricity

• Protects internal windings and rotating assemblies

• Absorbs vibration and distributes mechanical stress

• Ensures long-term mechanical stability under continuous operation

In both HVAC and washing machine applications, even minor dimensional deviation can lead to:

• Increased vibration and noise

• Bearing wear and overheating

• Reduced energy efficiency

• Shortened motor lifespan

Therefore, OEM-grade end covers require high-precision manufacturing and strict quality control.

White Zinc Plating Technology for Industrial Protection

White zinc plating is a widely used surface treatment for motor components due to its excellent balance of corrosion resistance, cost efficiency, and surface uniformity.

Key advantages of white zinc plated finish:

• Strong resistance to humidity and oxidation

• Stable performance in condensate-heavy HVAC environments

• Protection against detergent and moisture exposure in washing machines

• Smooth, uniform metallic appearance suitable for mass production

• Improved surface hardness and wear resistance

This coating significantly extends service life in both indoor HVAC systems and laundry equipment exposed to water and steam cycles.

Application Scenarios Overview

Material Engineering Options

To meet different motor design requirements, multiple industrial-grade materials are available:

Material selection is based on mechanical load, thermal environment, and cost-performance balance.

Precision Manufacturing Process

The manufacturing of OEM motor end covers requires multi-stage precision engineering:

Production workflow:

1. Raw material inspection and grading

2. Forming process (die casting / stamping / injection molding)

3. CNC precision machining of bearing seats

4. White zinc plating surface treatment

5. Concentricity and dimensional inspection

6. Salt spray corrosion resistance testing

7. Assembly simulation and fit verification

Each stage ensures compliance with international standards for HVAC and appliance motor systems.

Key Technical Specifications (OEM Standard Reference)

Engineering Design Advantages

Vibration & Noise Reduction Design

• Reinforced rib geometry for structural stiffness

• Optimized stress distribution around bearing seats

• High concentricity control for rotor stability

• Reduced resonance under high-speed operation

Bearing Precision System

• H7-level machining tolerance ensures tight fit

• Prevents axial misalignment and rotation instability

• Extends bearing lifespan under continuous load

Thermal Stability

• Suitable for HVAC thermal cycling conditions

• Stable performance under washing machine heat and moisture exposure

HVAC Motor Integration Advantages

In HVAC systems, motor efficiency directly impacts airflow and energy consumption. The white zinc plated motor end cover contributes to:

• Lower acoustic noise in residential environments

• Stable airflow performance in ventilation systems

• Reduced vibration in EC motor applications

• Improved corrosion resistance in humid climates

• Extended maintenance cycles for HVAC equipment

This makes it ideal for:

• Air conditioners

• Ventilation systems

• Air purifiers

• Heat pump motors

• Industrial air circulation units

Washing Machine Motor Performance Benefits

In washing machine systems, the motor end cover must withstand water, detergent, and high-speed rotation. Key advantages include:

• Strong resistance to moisture and detergent corrosion

• Stable bearing support under drum rotation load

• Reduced vibration during spin cycles

• Enhanced structural durability for long-term use

• Improved motor balance and efficiency

Quality Control System

A strict quality assurance framework is applied throughout production:

• Raw material chemical composition testing

• CNC dimensional inspection (CMM measurement systems)

• Concentricity and runout testing

• Salt spray corrosion resistance testing

• Surface coating adhesion evaluation

• Assembly compatibility verification

Only components passing all inspection stages are approved for shipment.

OEM & ODM Customization Capabilities

We provide full customization services for global HVAC and appliance manufacturers:

• Custom inner diameter (not limited to 95 mm)

• Adjustable thickness and reinforcement structures

• Material optimization based on application

• Surface treatment customization (zinc, anodizing, electrophoresis)

• Structural redesign for specific motor platforms

• Private labeling and OEM branding support

This flexibility enables integration into diverse motor architectures worldwide.

Industrial Manufacturing Advantages

Working with a specialized motor component manufacturer provides:

• Stable mass production capacity

• Advanced CNC and die-casting facilities

• Consistent quality across large batches

• Cost-effective OEM supply chain

• Engineering support for motor optimization

• Export experience in North America, Europe, and Asia

The White Zinc Plated Motor End Cover OEM for HVAC and Washing Machine Motor Components (Inner Diameter 95 mm) is a critical engineering part that directly influences motor reliability, efficiency, and lifespan.

Through precision machining, corrosion-resistant zinc plating, and optimized structural design, it delivers stable performance in both HVAC systems and home appliance motors. Its ability to reduce vibration, enhance bearing stability, and resist harsh environmental conditions makes it an essential component in modern electromechanical systems.

As global demand for energy-efficient and low-noise motors continues to grow, high-quality OEM motor end covers remain a foundational element in achieving next-generation motor performance standards.
