Cheap CE certification Car paint Booth namufacturer

In order to meet the different needs of customers for studio size, Autoke can not only produce standardcar paint booth, but also according to customer needs to produce car spray booth, truck spray booth, furniture spray booth, preparation room and so on.

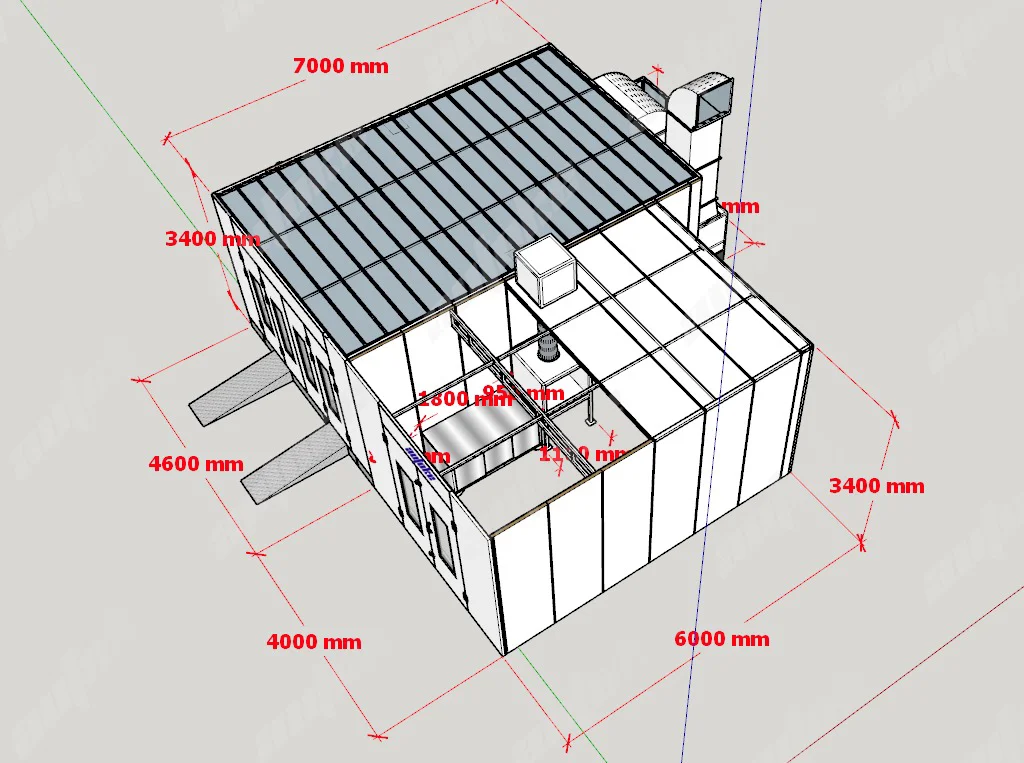

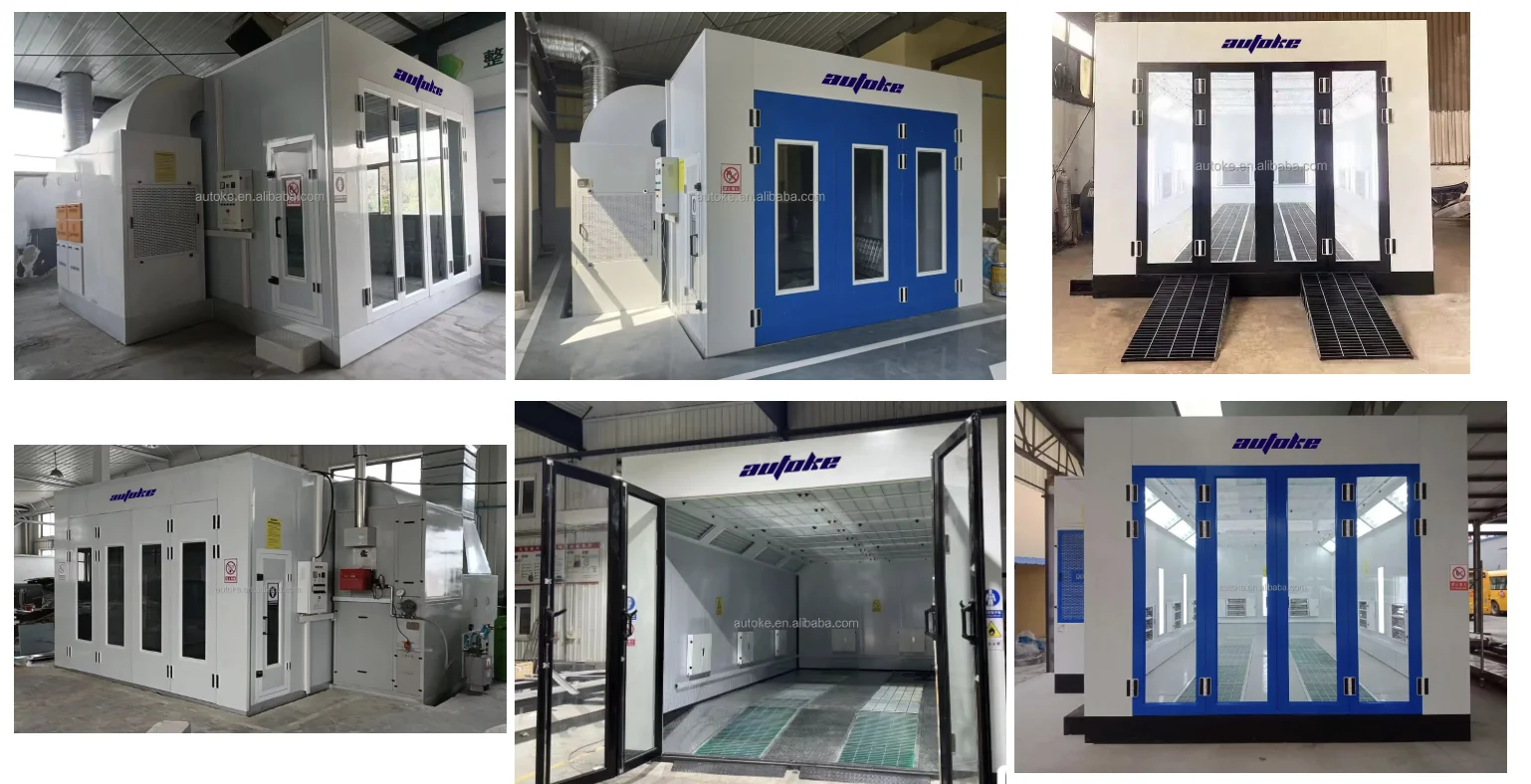

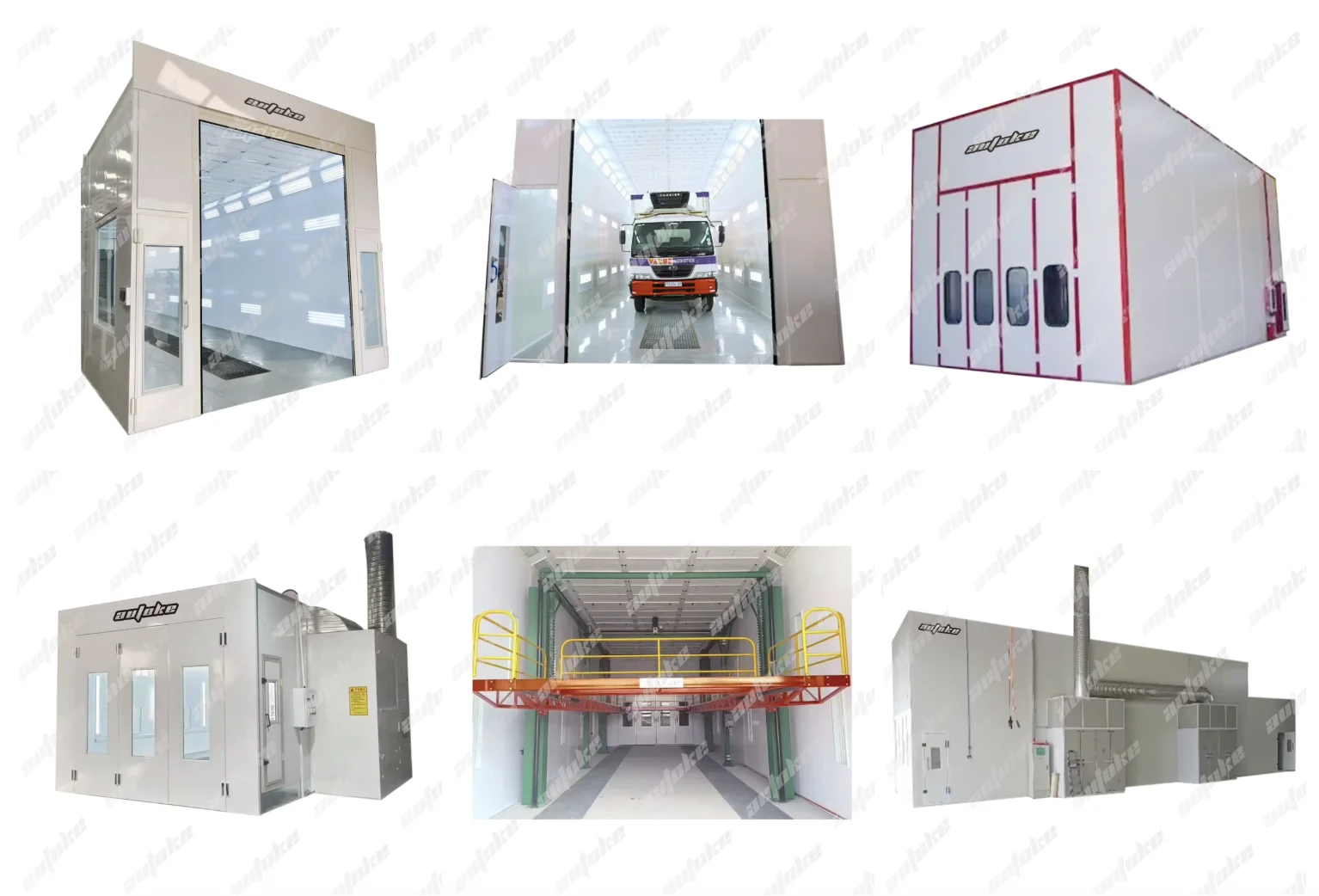

AUTOKE car spray booth models

There are luxury models of car spray painting room: ATK-00 1 , ATK-002 and ordinary models: ATK-003, ATK-004 and ATK-005.

Features of paint baking room

● Efficient filtration, luxurious configuration

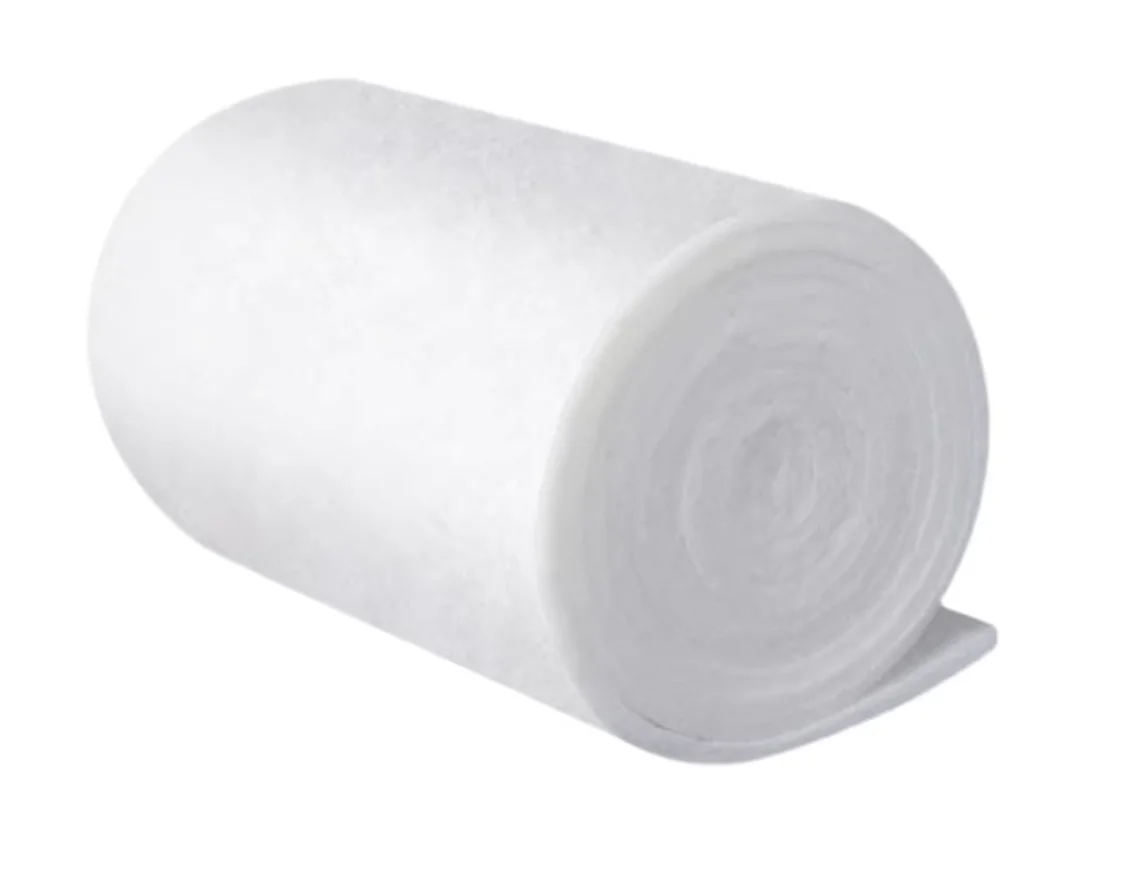

Ceiling filter (White)

Ceiling filter Technical data

Filter level: F5/M5 (EN779), EU5 (EUROVENT)

Filter object: >1μm particles

Flame retardant grade: F1 (DIN 53438), B1 (GB/T17591-2006)

Average weight efficiency: ≥98% (ASHRAE52.1-1992)

Final resistance: 400Pa (recommended)

Moisture resistance (relative humidity): <100%RH

Dust holding capacity: 600g/m

Instantaneous temperature resistance: <120℃

Temperature resistance: ≤100℃

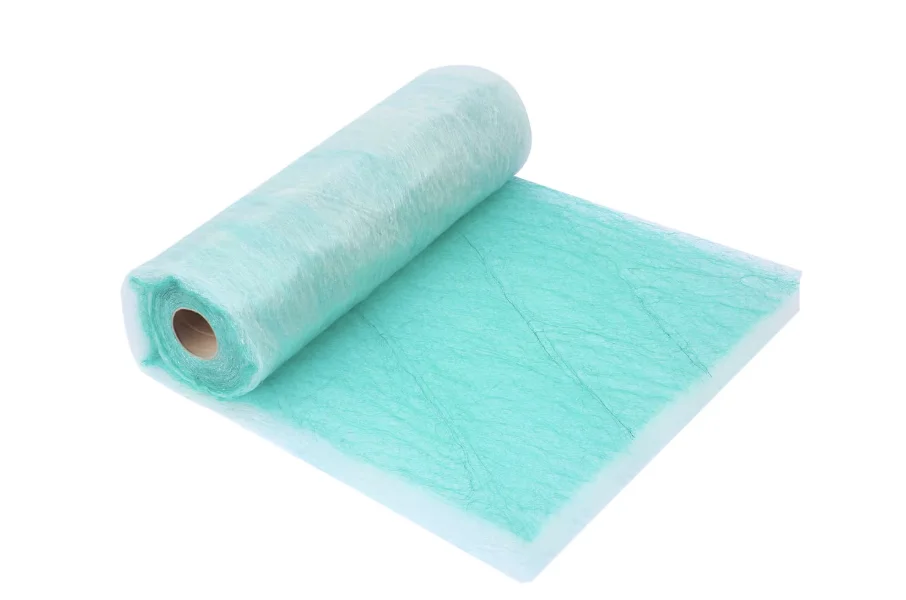

Floor filter (Blue)

Paint stop Technical data

Filter level :G3 (EN779), EU3 (UROVENT)

Filter object: Paint mist, oil mist, dust particles

Paint mist weight efficiency: AR-50≥90%, AR-75≥95%, AR-100≥98%

Flame retardant grade: F1 (DIN 53438), B1 (GB/T17591-2006)

Final resistance: 200Pa (recommended)

Moisture resistance (relative humidity): <100%RH

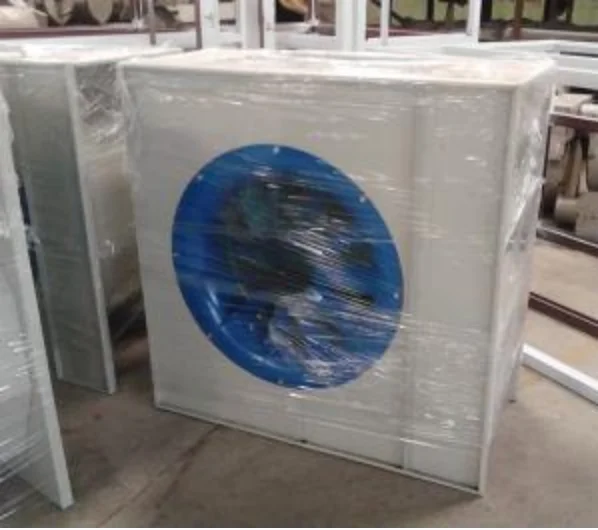

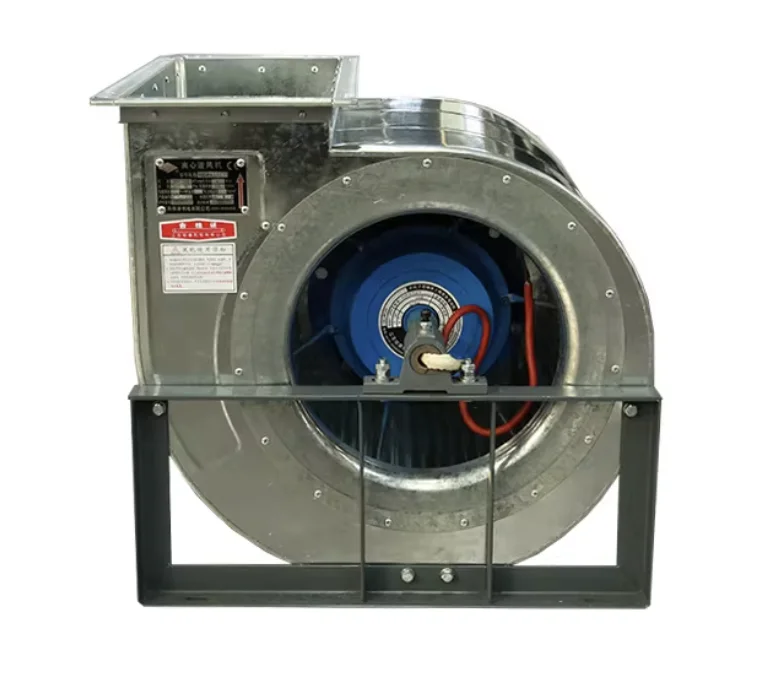

● Car spray booth fan is durable

According to the specifications of the car spray booth, multiple sets of 4kw and 5.5kw,7.5kw fans are equipped, with strong wind power and corrosion resistance. Other high-end brands such as copper core fans can be selected.

Inlet fan jiangsu hengkang brand copper core

2*4KW YDW double-intake centrifugal fans, total air capacity:

14000–15500m3/h, air pressure 776–787pa, speed 900r/min

Outlet fans: jiangsu hengkang brand copper core

1×5.5kw YDW outlet centrifugal fan，total air capacity:19000m3/h

Outlet fans jiangsu hengkang brand

1*7.5kw DDF type, 630S. total air capacity: 28000–30000m3/h, air pressure 900–1050pa, speed 1400r/min

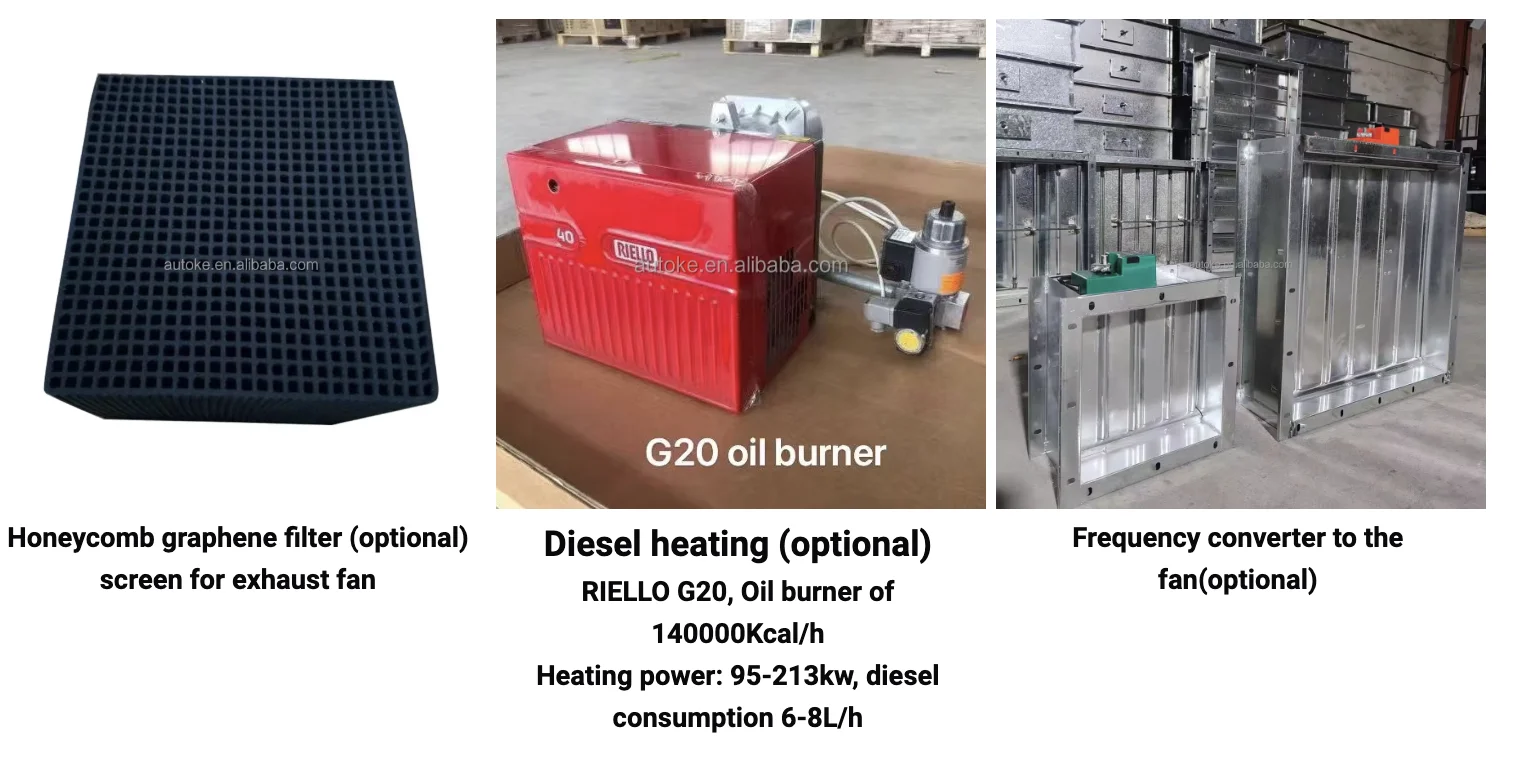

● Car spray booth different heating methods to meet different customer needs

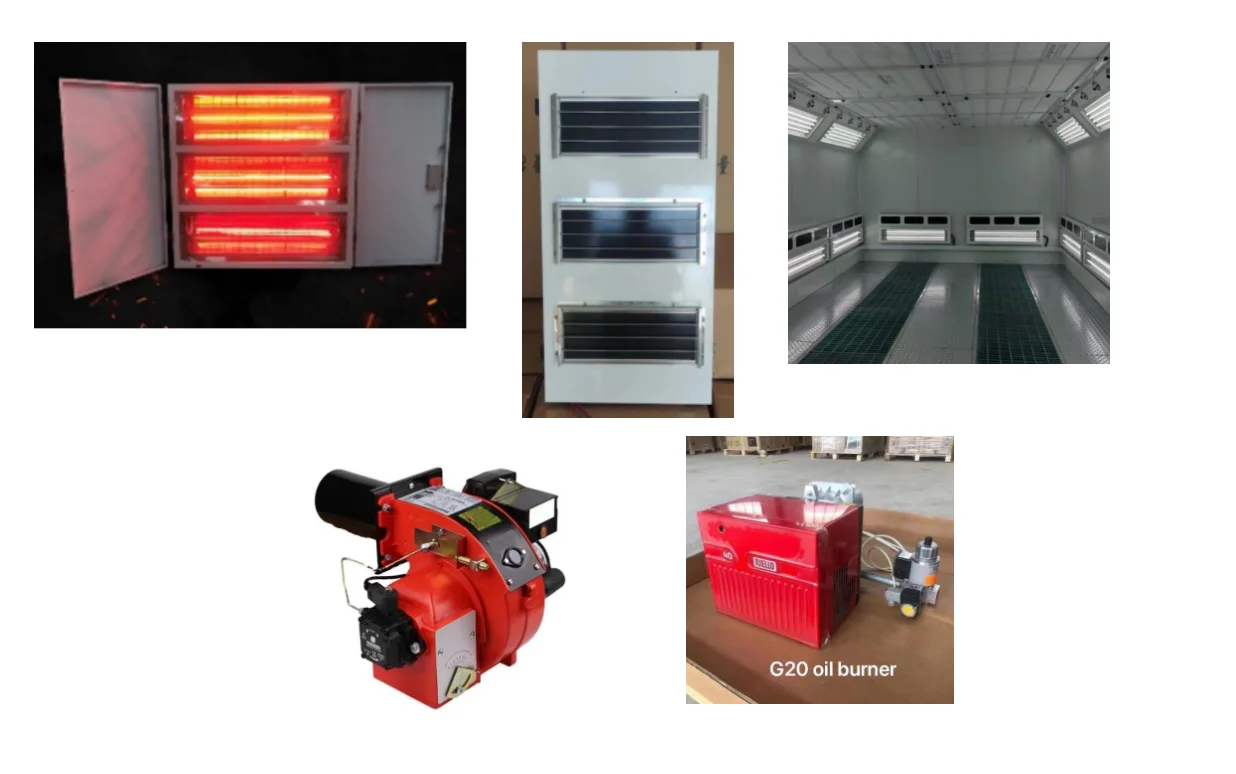

AUTOKE car paint booth Electric heating, diesel heating and natural gas heating: electric heating is equipped with Halogen infrared barking lamps or more advanced graphene heating lamp, 5-8 minutes heating up to 40℃, max baking temperature is 80℃; diesel heating and gas heating are equipped with Italian RIELLO heater, which has a fast heating speed, suitable for areas prone to power failure or cold temperatures.

● Car spray booth high quality ceiling lights

Color steel sheet metal processing is one-time forming, each light box is an independent structure, rust-proof and explosion-proof structure.

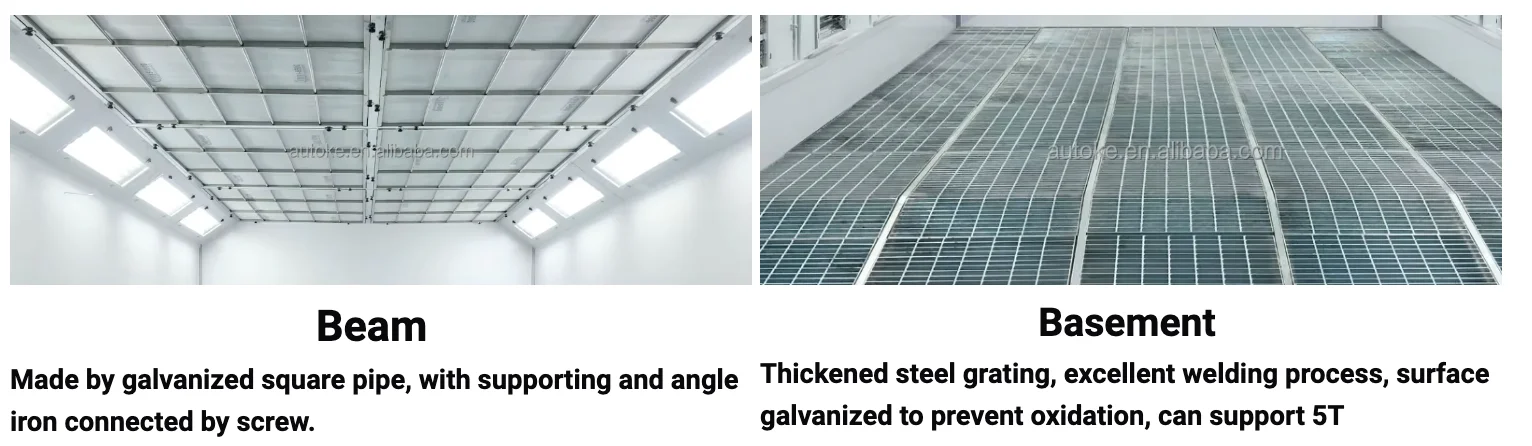

● Car spray booth load-bearing beam plenum

The plenum made by 1.2mm galvanized steel, powder-coated on the surface. The roof filter support frame made by galvanized square tubes, powder-coated on the surface. T he closed purification is equipped with an air shower acceleration system and nozzle to accelerate the quick drying of paint and improve painting efficiency. The installation position is under the light box.

● Car spray booth floor

1. Plate type pressing convex platform, made by high quality galvanized steel sheet and square tubes assembling, height is 300mm;

2. Equip three rows flat steel grilles (Galvanized) made by flat bar and round steel，Spray treatment,rust prevention;

3. With 2 rows walking floors ，Spray treatment, rust prevention.

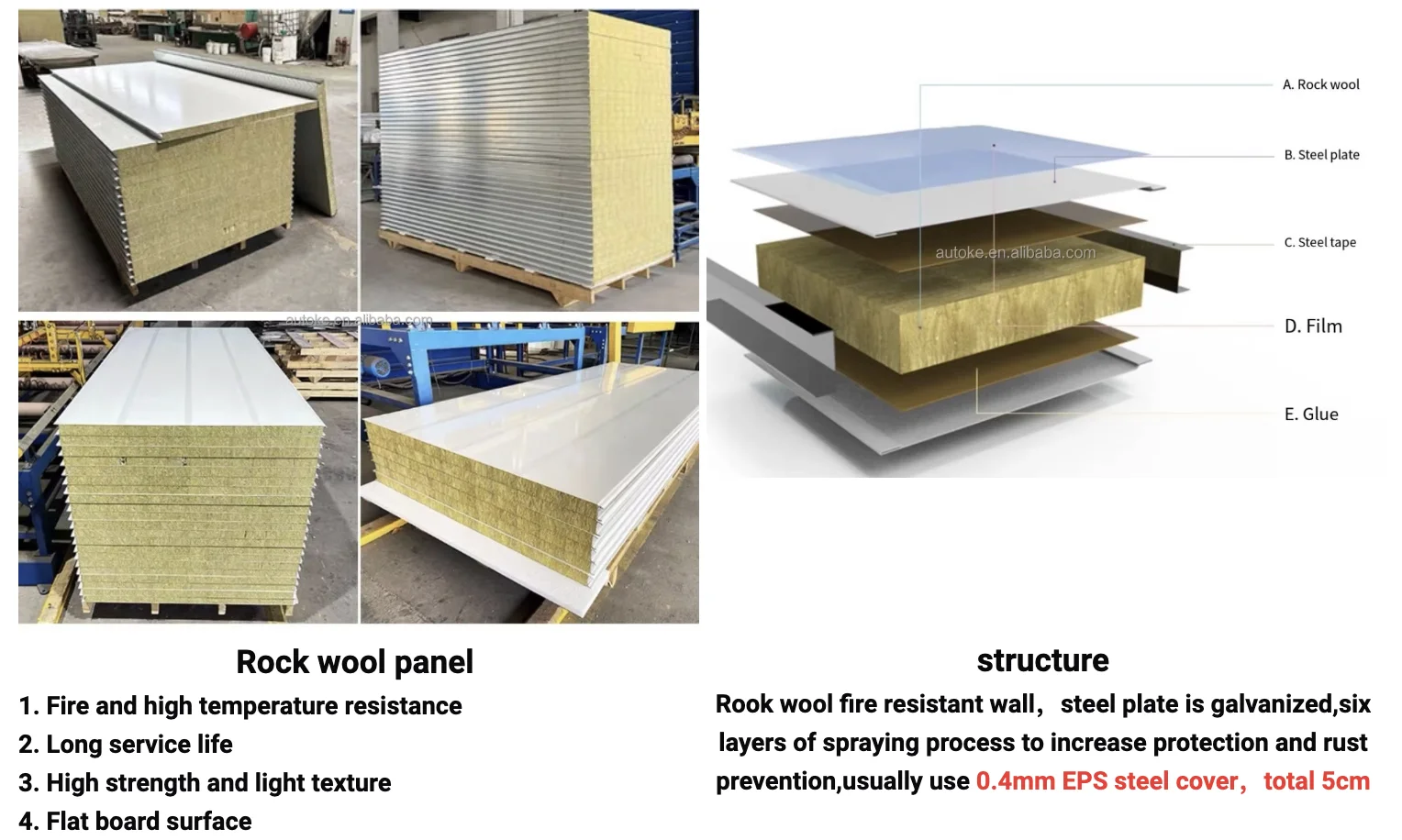

● Car spray booth wall panels

1. High quality double construction insulation EPS colorful steel skin panel. Fire resistant wall 5cm-7.5cm , two layers 0.4 mm steel cover with fire resistant thermal insulation materials in;

2. Galvanized steel roof panel, anti-flame;

3. The wall panel is made of high-density rock wool.

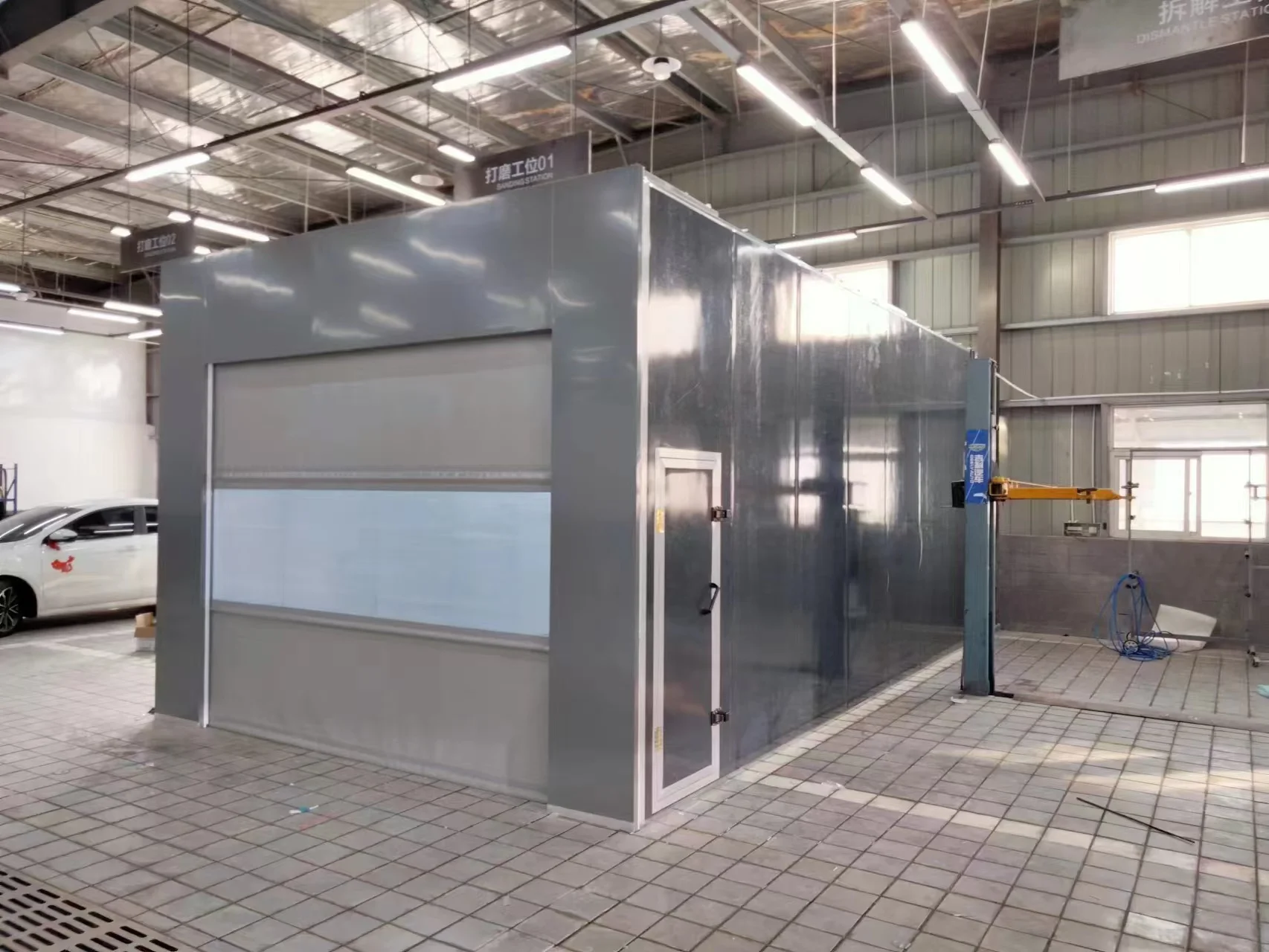

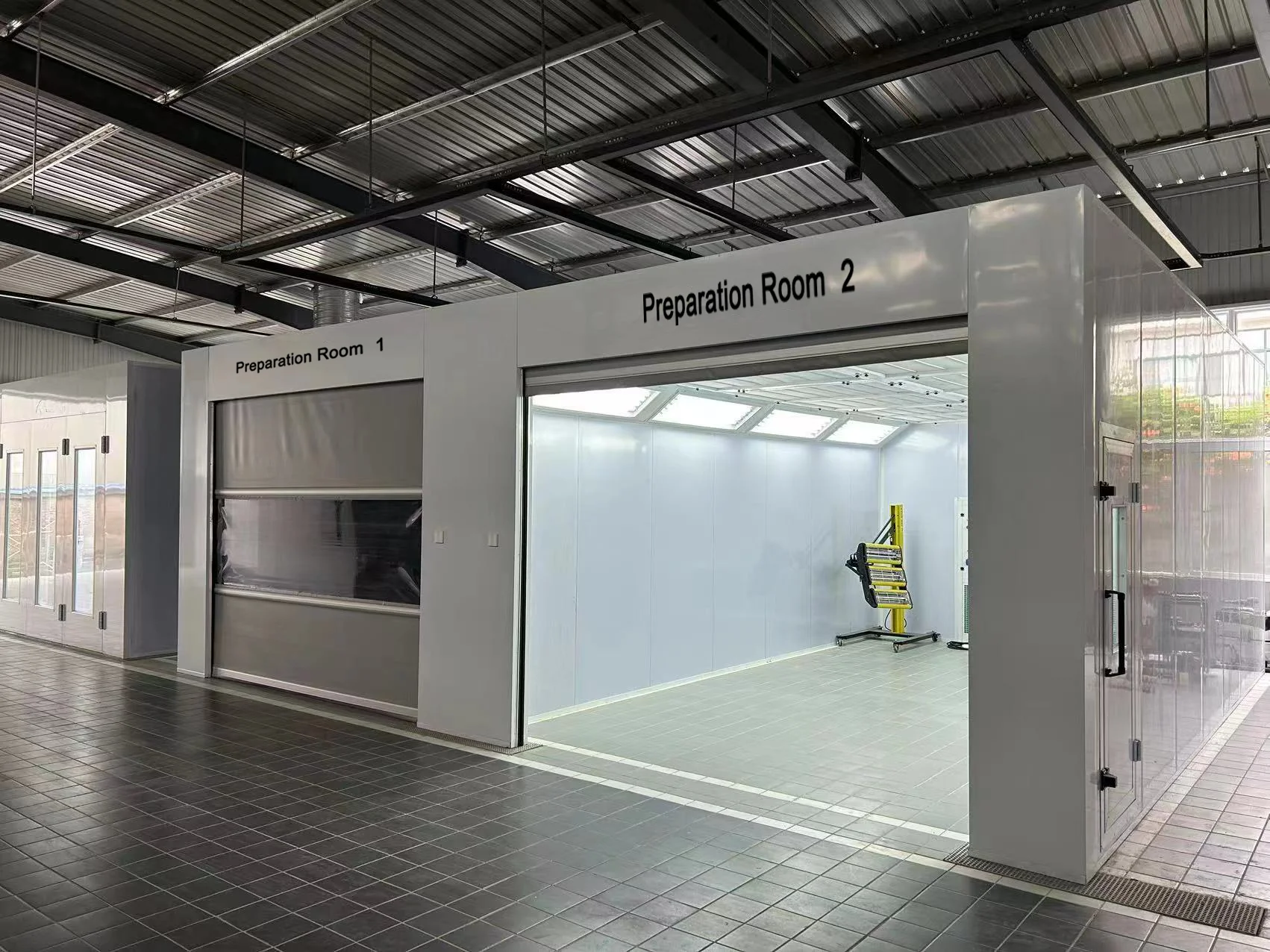

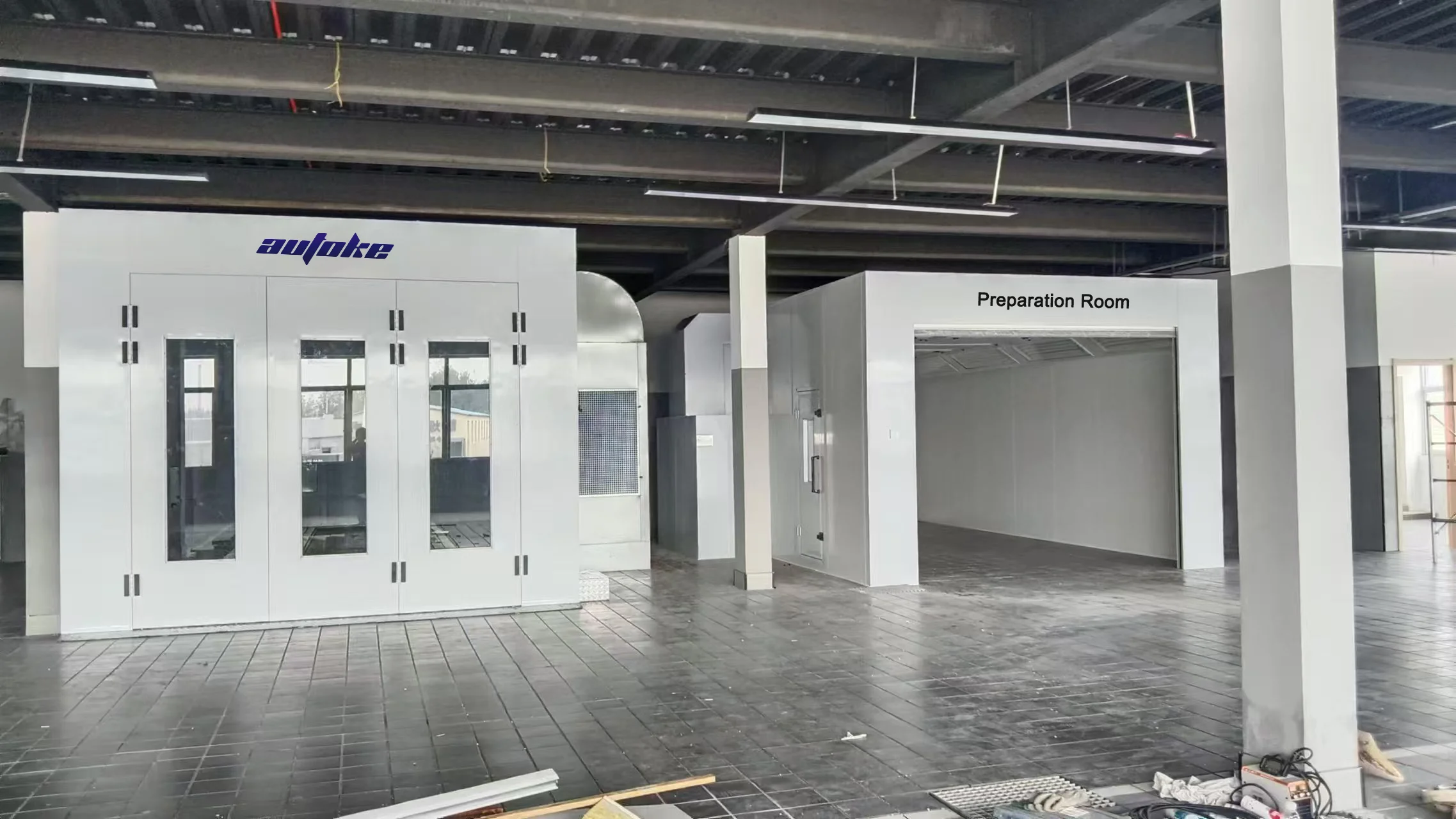

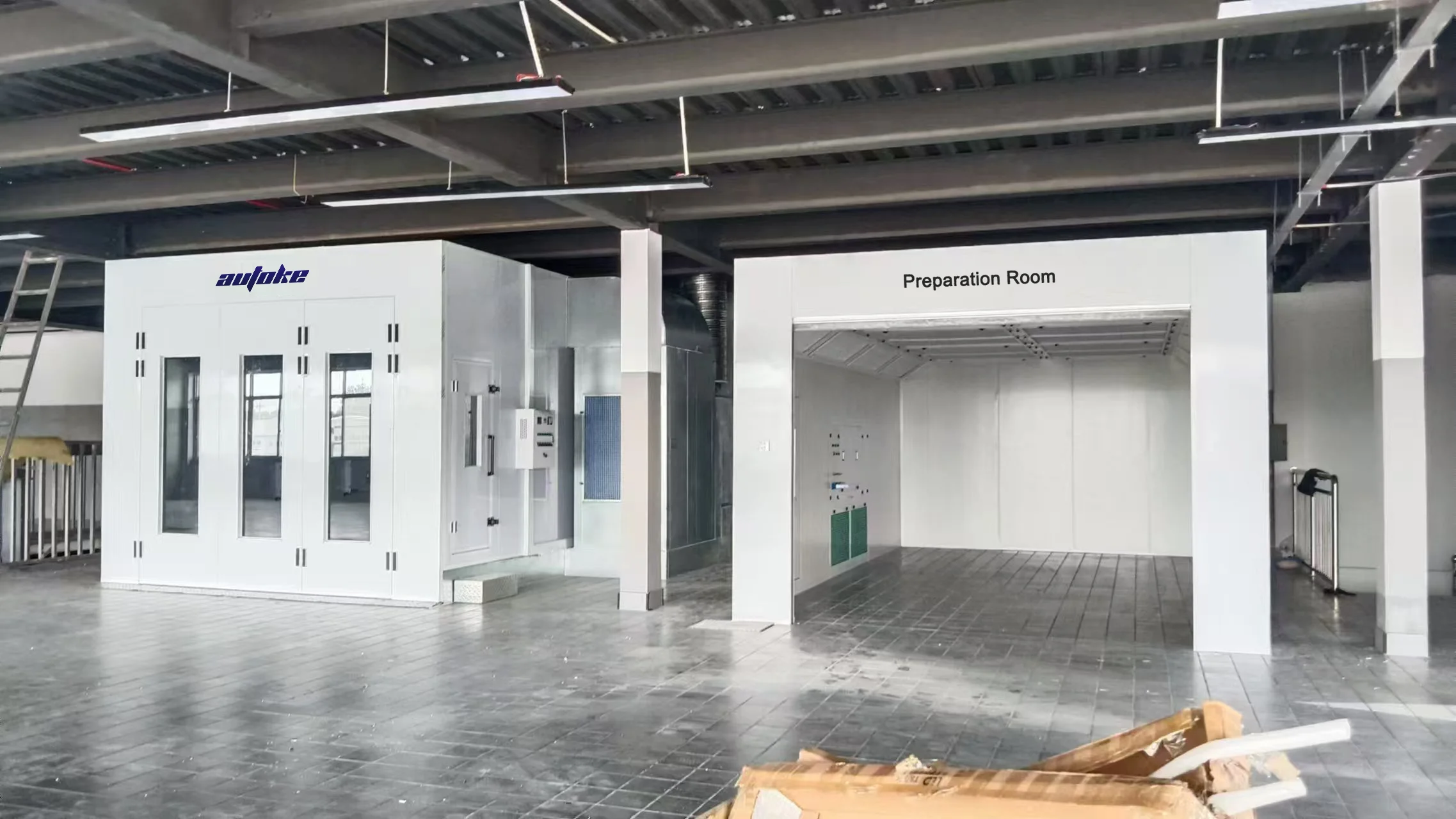

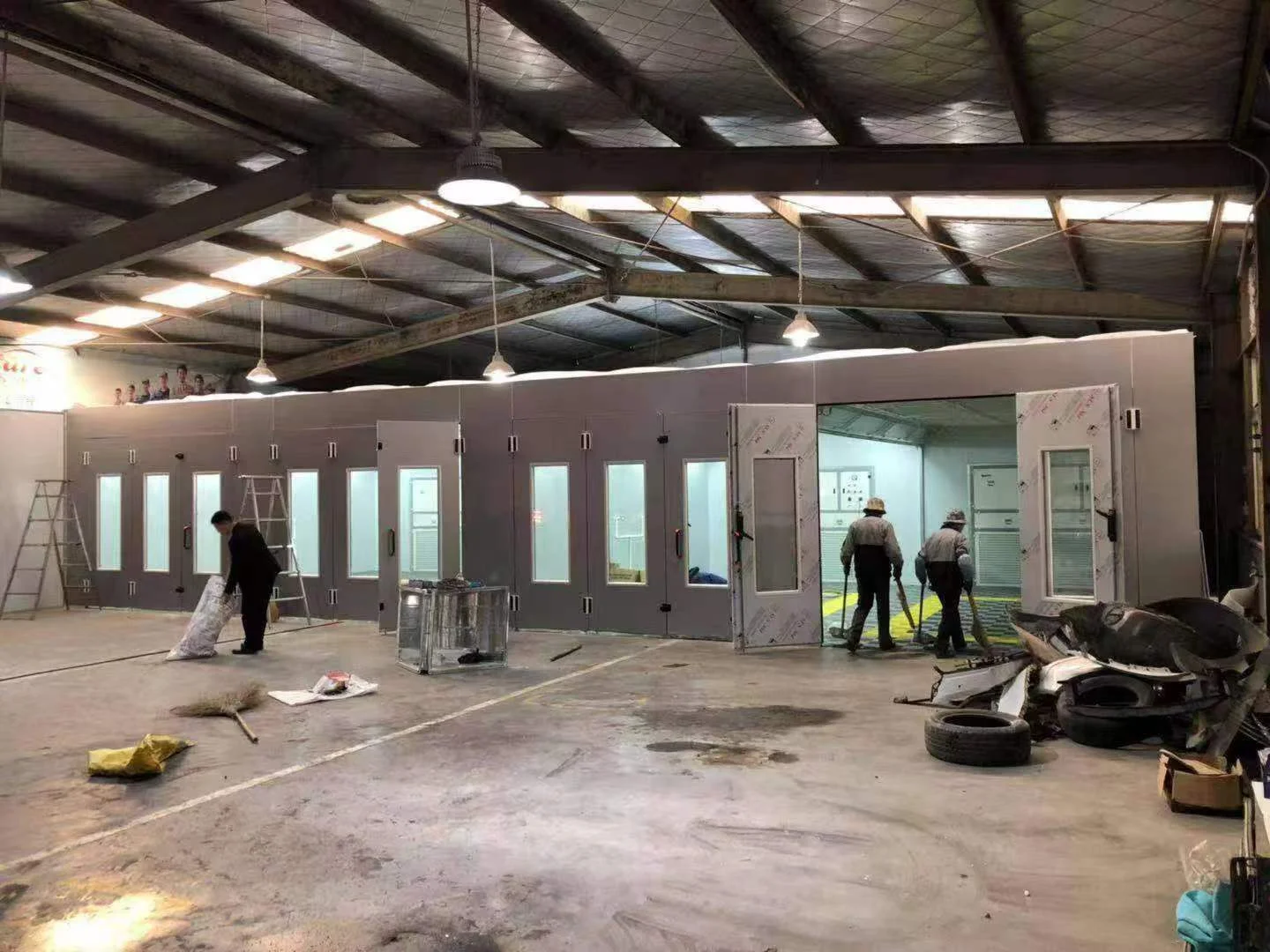

AUTOKE spray painting room application scenario

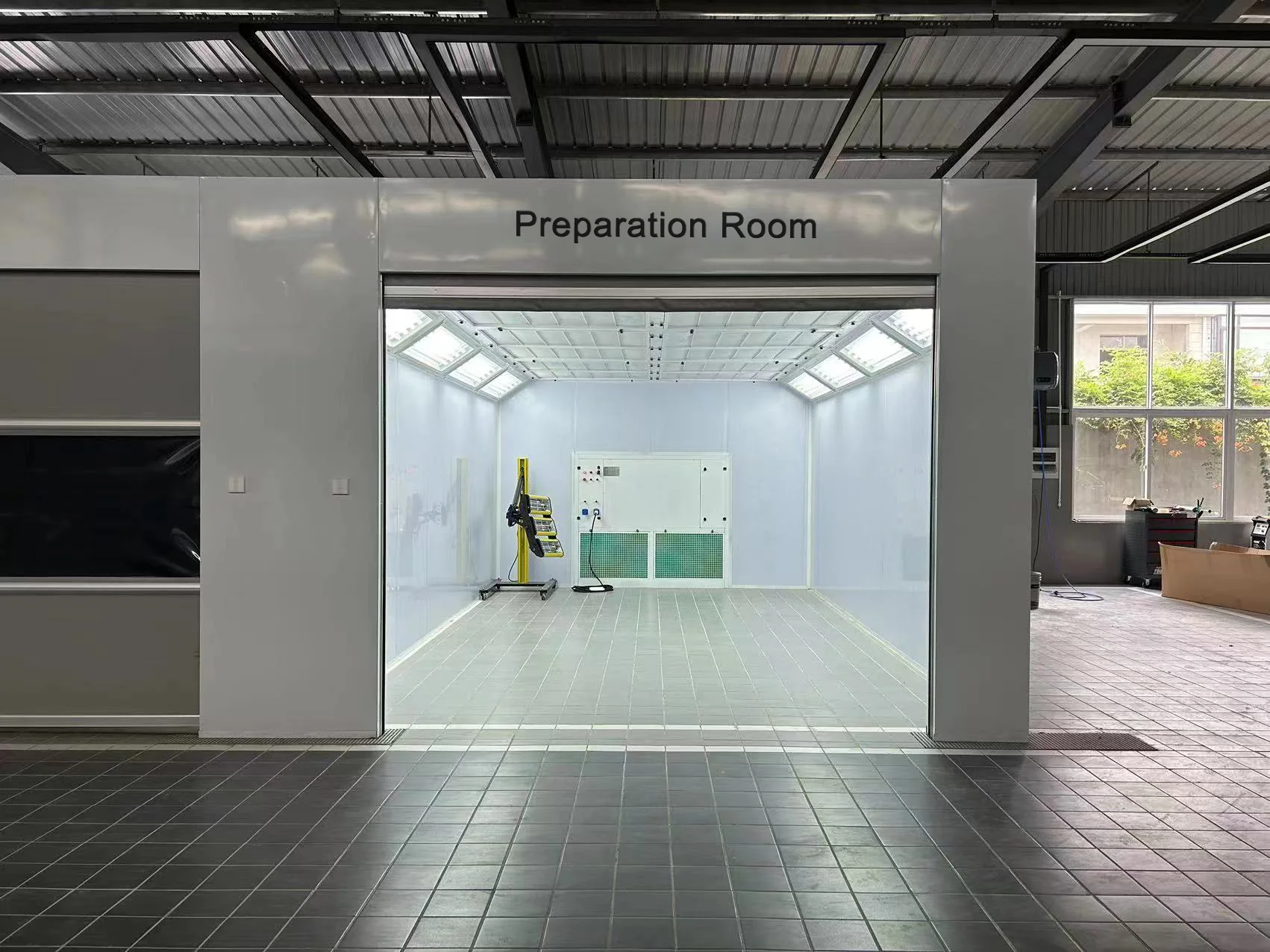

AUTOKE can produce various products such as car paint booth, preparation rooms, cleanrooms, truck spray booth, and furniture spray booth, which can be applied in automotive beauty, repair, industrial production, and other fields. Autoke spray booth provide efficient and professional spray solutions. Their exquisite design and superior performance make the car surface spray effect smoother and more uniform, significantly enhancing the overall aesthetics and value of the vehicle.

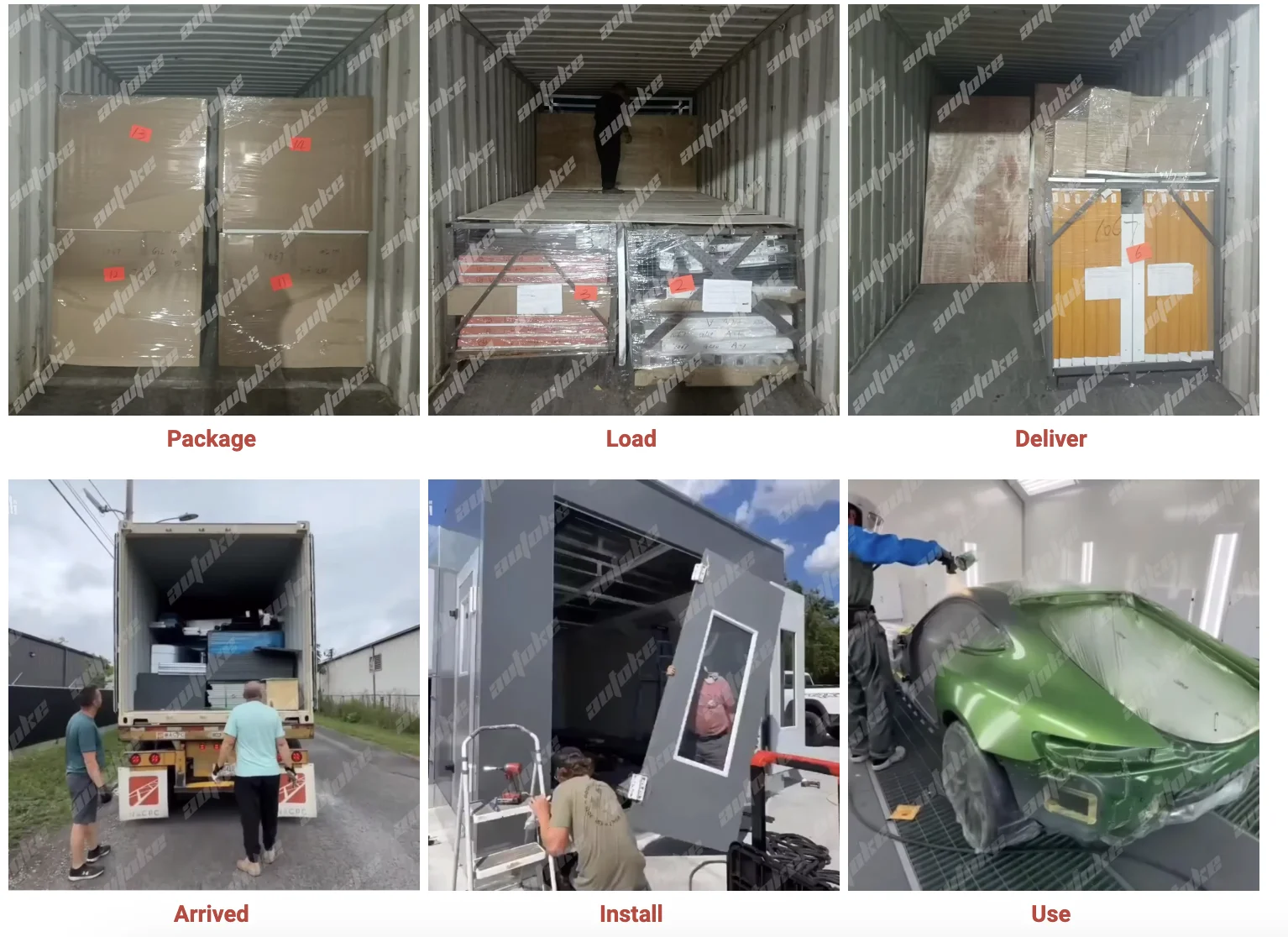

AUTOKE car spray booth product packaging delivery

● Autoke car spray booth strict packaging to ensure safety

We use containerized delivery, and all parts of the Autoke car spray booth are strictly packaged before leaving the factory. All components are wrapped in protective materials such as foam, bubble wrap, strapping, and wooden boxes to prevent damage during transportation. Additionally, we provide a detailed packing list and installation guide for customers to check and install upon delivery.

● Autoke car paint booth professional transportation, fast arrival

Autoke has established long-term cooperative relations with a number of professional logistics companies to ensure that the car spray booth can be delivered to customers quickly and safely. During the transportation process, we will track the logistics information in real time, synchronize with customers, help customs clearance, and ensure that the goods arrive at the destination safely.

AUTOKE quality after-sales service

Relying on a robust logistics system, the entire container of the car spray booth is delivered to the door. The company offers a one-year warranty, with any issues being resolved by the company. Detailed video and text tutorials are provided for installation, along with full online one-on-one guidance. Comprehensive after-sales service support is offered, including equipment installation, commissioning, training, and regular maintenance. A professional technical team is always available to provide technical support and solutions, ensuring that any problems encountered during use are promptly resolved.

Autoke advantages

● Technology advantage

Autoke (Suzhou Autoke Machinery and Equipment Co., Ltd.) is a high-tech enterprise dedicated to the research, development, production, and sales of car spray booth. The company boasts advanced production equipment and processes, along with a research team composed of senior engineers and technical personnel. Leveraging years of industry experience and an innovative spirit, autoke has successfully launched several car spray booth products with independent intellectual property rights, which are widely used in both domestic and international markets. At the same time, autoke places great emphasis on communication and collaboration with customers, striving to provide more personalized and professional solutions and services.
