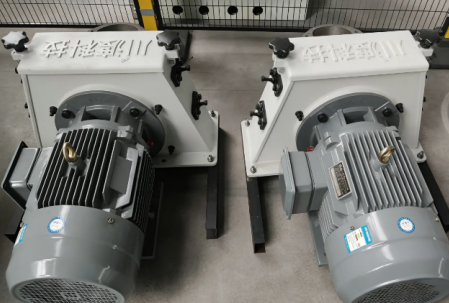

Chuandu Shot Blasting Wheel Assembly | Shot Blasting Impeller head | High Performance Shot Blasting Unit

Higher Blasting Efficiency. More Uniform Coverage. Longer Service Life.

The shot blasting impeller is the core power component of a shot blasting machine. Through high-speed rotation, it accelerates steel shot and directs abrasive particles onto the workpiece surface at a controlled velocity and angle. A well-designed impeller directly affects blasting efficiency, cleaning uniformity, abrasive distribution, component wear, and overall operating costs.

Our High-Performance Shot Blasting Impeller is engineered for demanding industrial applications, combining optimized structural design, high-speed abrasive projection, wear-resistant components, and reliable operation. It helps manufacturers achieve faster surface cleaning, more consistent blasting results, and longer maintenance intervals.

From casting cleaning and steel plate derusting to surface strengthening and steel structure treatment, the impeller can be adapted to a wide range of shot blasting applications.

Four Key Advantages

1. High-Speed Shot Projection

The impeller operates at up to 2,960 rpm, efficiently accelerating steel shot and delivering strong, consistent impact to the workpiece surface.

With a shot blasting capacity of up to 176 kg/min, the system provides sufficient abrasive flow for demanding industrial applications. Depending on workpiece characteristics and process conditions, medium workpiece processing can reach ≥25 pieces/hour, while small workpiece processing can reach ≥60 pieces/hour.

The result is a more efficient blasting process with less unnecessary processing time.

2. Precision Structural Design

Blasting efficiency is not determined by speed alone. The direction, distribution, and coverage of abrasive are equally important.

The impeller uses a precision structural design to help maintain stable abrasive distribution during operation. Its control cage angle can be adjusted from 0° to 360°, allowing the blasting direction to be adapted to different workpiece geometries and surface treatment requirements.

This helps reduce uneven blasting and improves surface coverage, particularly when processing components with complex shapes.

3. Wear-Resistant Core Components

Shot blasting equipment operates in a highly abrasive environment, making wear resistance essential for long-term performance.

The impeller is equipped with wear-resistant blades and high-speed rotating components designed for continuous industrial operation.

Key service-life indicators include:

• High-speed impeller: ≥3,000 hours

• Wear-resistant blade: ≤0.2 mm wear per 1,000 hours

• Sealed bearing assembly: ≥5,000 hours

• Overall service life: ≥6,000 hours

Longer component life means fewer interruptions for replacement and maintenance, helping manufacturers maintain stable production schedules and control operating costs.

4. Professional Technical Support

Different workpieces require different blasting conditions. For this reason, we provide professional customization and technical support rather than offering a one-size-fits-all configuration.

Our service covers equipment selection, process optimization, installation and commissioning, parameter adjustment, operator training, maintenance guidance, and after-sales support.

Remote multilingual technical support is available around the clock to help customers respond quickly to operating or maintenance issues.

Designed for Multiple Surface Treatment Applications

The shot blasting impeller can be used in a variety of industrial surface treatment processes, including:

Casting Cleaning
Effectively removes residual sand, oxide scale, and other contaminants from cast components before machining or further processing.

Steel Plate Derusting
Provides high-speed abrasive impact for removing rust, scale, and surface contaminants from steel materials.

Surface Strengthening
Controlled shot impact can be used to improve the fatigue resistance and surface properties of suitable metal components.

Steel Structure Treatment
Suitable for surface preparation of welded steel structures before painting, coating, or corrosion protection.

The recommended abrasive diameter is 0.4–1.2 mm, while the equipment can accommodate an abrasive diameter range of 0.2–1.6 mm, depending on the specific process requirements.

Technical Specifications

The actual blasting performance depends on the workpiece material, geometry, surface condition, abrasive characteristics, blasting time, and equipment configuration.

Customized to Your Production Requirements

Standard specifications are not always sufficient for specialized production lines. We therefore support full non-standard customization and tailored surface treatment solutions.

Customization can be considered according to:

• Workpiece size and weight

• Required cleaning grade

• Production capacity

• Abrasive type and size

• Blasting direction

• Equipment layout

• Automation requirements

• Existing shot blasting system configuration

• Maintenance and replacement requirements

The objective is not simply to increase blasting power, but to achieve the appropriate balance between efficiency, surface quality, component life, and operating cost.

Performance Designed Around Real Production Needs

The impeller is designed around three practical objectives: stable operation, consistent blasting, and reduced maintenance requirements.

A high-performance impeller can improve the utilization of abrasive, maintain a more consistent blasting pattern, and reduce the frequency of replacing critical wear components. For production lines operating continuously, these improvements can have a direct effect on overall equipment availability.

The combination of a high-speed impeller, wear-resistant blades, sealed bearing assembly, and adjustable control cage provides a reliable foundation for demanding surface treatment applications.

Complete Service From Consultation to Maintenance

Our service does not end when the equipment leaves the factory. We provide support throughout the complete equipment lifecycle.

Pre-Sales Consultation

Needs Assessment → Solution Demonstration → Cost Calculation

We first evaluate the customer's workpieces, production requirements, surface treatment objectives, and existing equipment conditions.

Contract and Solution Confirmation

Solution Optimization → Terms Confirmation → Rights and Responsibilities

Technical requirements are clarified before production to ensure that the proposed configuration matches the actual application.

Delivery Coordination

Production Synchronization → Logistics Planning → Site Preparation

Production and delivery are coordinated according to the project schedule, while customers receive guidance for site preparation.

Installation and Commissioning

Professional Construction → Parameter Optimization → Operation Training

After installation, technicians assist with equipment commissioning, operating parameter adjustment, and user training.

Acceptance and Delivery

Performance Testing → Document Transfer → Acceptance Confirmation

Equipment performance is checked before final acceptance, with relevant technical documents transferred to the customer.

After-Sales Guarantee

Quality Assurance → Regular Follow-Up → Fault Response

We provide ongoing technical support and follow-up services to help customers maintain stable equipment operation.

Value-Added Maintenance

Upgrades → Renovation → Skills Training → Dedicated Support

As production requirements change, existing equipment can be evaluated for upgrades, modifications, or process improvements.

A Reliable Core for Efficient Shot Blasting

The performance of a shot blasting machine depends heavily on the quality and design of its core components. As the part responsible for accelerating and distributing abrasive, the impeller has a direct influence on blasting efficiency, coverage, surface consistency, and equipment maintenance.

Our high-performance shot blasting impeller combines high-speed projection, precision engineering, wear-resistant construction, adjustable blasting direction, and long-term technical support to provide a practical solution for demanding industrial surface treatment applications.

With non-standard customization capabilities and professional technical service, the impeller can be integrated into new shot blasting systems or used as a replacement and upgrade component for existing equipment.

Improve blasting efficiency. Maintain stable performance. Extend component life. Reduce unnecessary maintenance.

That is the goal behind our high-performance shot blasting impeller.
