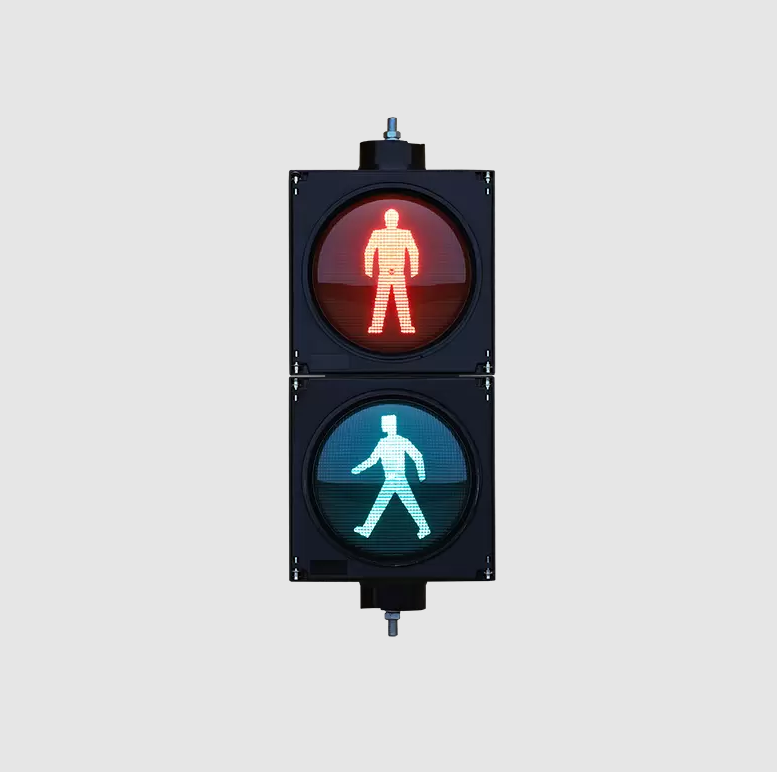

High Flux Pedestrian Traffic Light
The High Flux Pedestrian Traffic Light is a two-unit assembly.
The High Flux Pedestrian Traffic Light is a two-unit assembly. The lamp core consists of the large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components.
Product Introduction:
The High Flux Pedestrian Traffic Light is a two-unit assembly. The lamp core consists of the large-sized light source, three-layer optical lenses, a power supply unit, a lamp bowl, and an external heat dissipation module, among other structural components. The optical mechanism operates through three-layer optical processing to enhance the luminous efficiency, diffuse, and refocus the point light emitted from the light source, thereby generating a uniform surface light output. It is applicable to traffic signal control intersections designed for pedestrian crossings.
-
Product Model RX200-3-FM25 RX300-3-FM25 Light-Emitting Surface (LES) Size 200mm 300mm Operating Voltage / Frequency AC85~264V/47-63Hz AC85~264V/47-63Hz Housing Material Polycarbonate housing Polycarbonate housing Mask Color Coloured Coloured Mask Shape
Arc-shaped Arc-shaped LED Quantity
R/G: 2 Pcs R/G:4 Pcs Lamp Power Consumption Static red pedestrian light ≤ 7 W
Static green pedestrian light ≤ 9 W
Static red pedestrian light ≤ 15 W
Static green pedestrian light ≤ 13 W
LED Wavelength Red: 625 ± 5 nm Green: 505 ± 5 nm Red: 625 ± 5 nm Green: 505 ± 5 nm Luminous Intensity 5000~15000cd/m² 5000~15000cd/m² LED Lifespan ≥100,000 hours ≥100,000 hours Insulation Resistance ＞2MΩ ＞2MΩ Operating Temperature -40℃ to +80℃ -40℃ to +80℃ Relative Humidity ≤97%RH ≤97%RH Protection Grade IP65 IP65 Visual Distance ≥300m ≥300m Packaging Specifications 1 piece per box, Size: 66 × 32 × 28 cm, Weight: 6 ± 0.5 KG 1 piece per box, Size: 85 × 42 × 31 cm, Weight: 9 ± 0.5 KG
