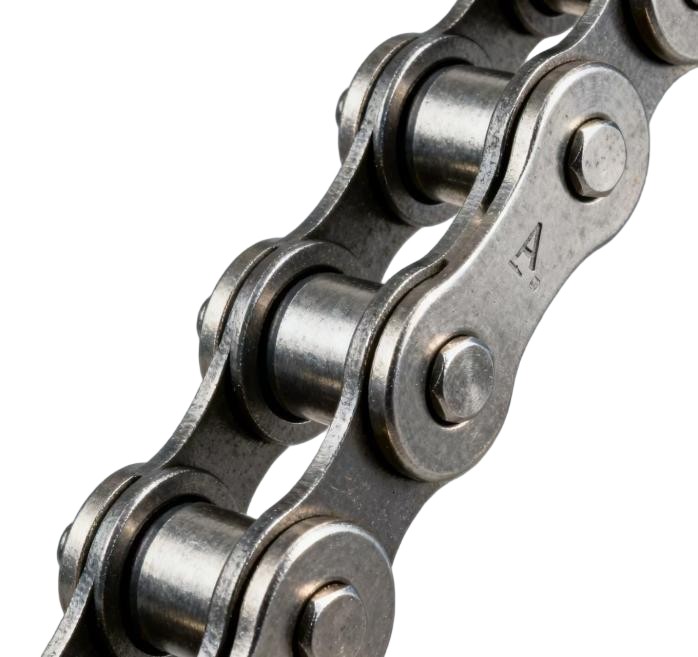

Short Pitch Precision Chains(A Series Single Strand)

Short Pitch Precision Chains(A Series Single Strand)

1. Product Overview

The A Series Single-row Short Pitch Precision Roller Chain is a transmission
chain compliant with international standards including ISO, ASME/ANSI, DIN, and
JIS. Manufactured from premium carbon steel or alloy steel through advanced
processes and rigorous quality control, this chain delivers exceptional wear
resistance, fatigue resistance, and strength. It is widely used in construction
machinery, agricultural equipment, logistics transportation, food processing,
medical applications, and chemical industries.

2. Product Features

High strength and fatigue resistance: The A series single row short pitch
precision roller chain has excellent tensile strength and fatigue strength,
which can meet the transmission requirements of high load and long time
operation.

Excellent wear resistance: The chain treated by special process technology
(such as chain plate extrusion, shot blasting treatment, wide waist chain plate
design, etc.) has more than 1.2 times higher wear resistance than ordinary
chain.

Good rust resistance: The chain is treated with zinc, nickel, chromium and
Dacromet to improve its rust resistance and adaptability, and is suitable for
all kinds of harsh environments.

High interchangeability: Complies with ANSI standards, allowing
interchangeability with any other chain meeting this standard, facilitating user
maintenance and replacement.

Eco-friendly performance: The product meets EU REACH standards, making it
more environmentally friendly.

3. Product Specifications and Parameters

The A Series single-row short-pitch precision roller chain is available in
various specifications, including: Pitch (P): ranging from 6.35mm to 76.20mm,
such as 6.35mm(04C), 9.525mm(06C), 12.70mm(08A,08B), 15.875mm(10A),
19.05mm(12A), 25.40mm (16A).

Roller diameter (d1): proportional to the pitch, such as 3.30mm(04C),
5.08mm(06C), 7.92mm(08A,08B), 10.16mm(10A), 11.91mm(12A), 15.88mm (16A) etc.

Internal pitch width (b1): A parameter related to pitch and roller diameter,
ensuring proper meshing between the chain and sprocket.

Pin diameter (d2): Determine according to chain specifications to ensure
chain strength and durability.

Chain plate thickness (T): Determined according to chain specifications and
applications, generally thicker to provide sufficient strength.

4. Application Fields

The A-series single-row short-pitch precision roller chain is widely used in
the following fields: Construction machinery: such as excavator, loader, crane
and other equipment transmission system.

Agricultural machinery: transmission parts of agricultural equipment such as
tractors, harvesters, irrigation equipment, etc.

Logistics transportation: such as conveyor, hoist, storage equipment and
other logistics equipment transmission chain.

Food processing: such as packaging machine, filling machine, cutting machine
and other food processing equipment transmission system.

Medical chemical: such as pharmaceutical equipment, chemical reactor and
other equipment transmission parts.

V. Product advantages Reliable quality: Made of high-quality materials and
advanced technology to ensure high quality and stability of products.

Excellent performance: with high strength, high fatigue, high wear resistance
and other characteristics, can meet the transmission needs in a variety of harsh
environments.

Excellent service: We provide comprehensive pre-sales, sales and after-sales
services, including product selection, technical support, maintenance and so
on.

Good cost performance: under the premise of ensuring product quality, we
provide competitive prices to save costs for users.

Model:
04C-1/06C-1/08A-1/10A-1/12A-1/16A-1/20A-1/24A-1/28A-1/32A-1/36A-1/40A-1/48A-1
