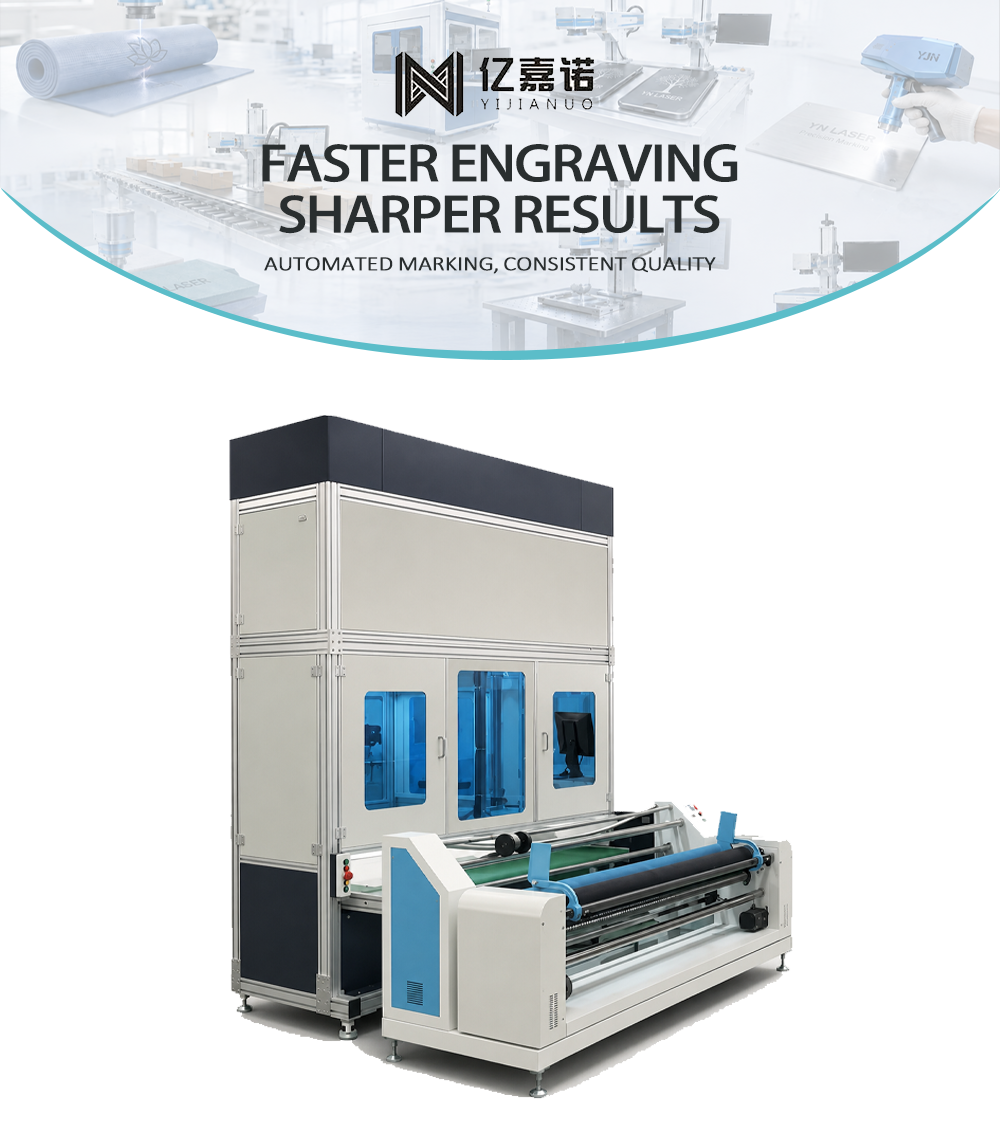

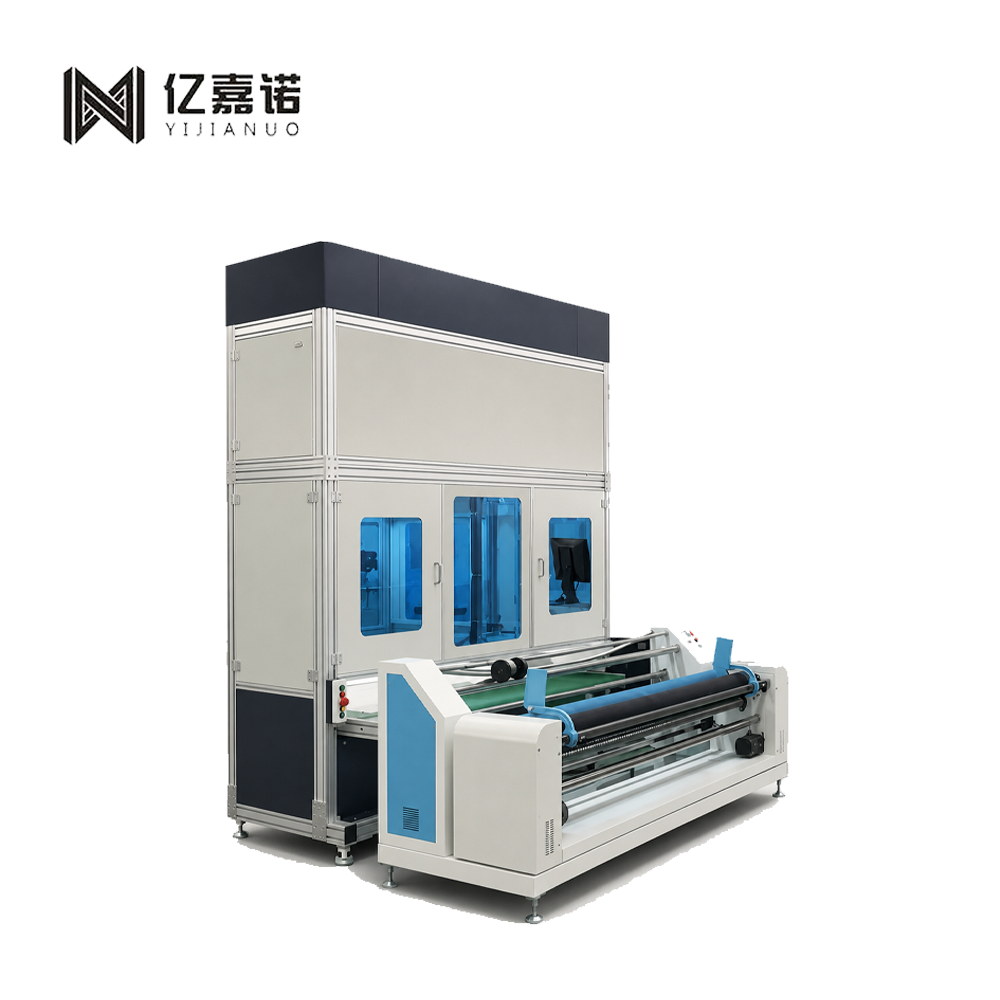

YJN-K70 Flight Marking Machine for Laser Applications
Improve continuous marking efficiency with YJN-K70 Flight Marking Machine, designed for rolled material marking applications with automatic feeding, CCD visual positioning and dynamic laser marking.
YJN-K70 Flight Marking Machine is designed for continuous laser marking applications on rolled materials. The equipment is suitable for production processes requiring continuous marking operations and is equipped with automatic feeding and material collection systems.
The machine adopts a dynamic flight marking control system, a 4.0 super dynamic galvanometer system and a K70mm water-cooled digital galvanometer. It is also equipped with CCD visual positioning using a 25-megapixel camera with an ultra-short focal length lens.
YJN-K70 features a honeycomb chain conveyor system and correction system for continuous material processing applications. The equipment supports a marking range of 1000×1800mm, with a maximum scanning speed of 3000mm/s and repeated positioning accuracy of 0.005mm.
The machine provides a maximum cutting thickness of 3mm and supports electric lifting height adjustment from 1100mm to 1250mm. With automatic feeding and positioning functions, YJN-K70 is suitable for laser marking requirements involving continuous material production.
MARKING RANGE： – 1000 × 1800MM
MAXIMUM SCANNING SPEED: 3000MM/S
REPEATED POSITIONING ACCURACY: 0.005MM
MAXIMUM CUTTING THICKNESS: 3MM
ELECTRIC LIFTING HEIGHT 1100-1250MM
FEEDING ACCURACY: ± 0.5MM
COMPLETE MACHINE POWER: MAXIMUM 16KW, PEAK 22KW
POWER REQUIREMENT: 380VAC/60A/50-60HZ
MACHINE SIZE: ABOUT 2680 × 2270 × 2380MM
YIIANUO specializes in laser equipment and automation equipment manufacturing, providing professional solutions for industrial marking and automation applications.
